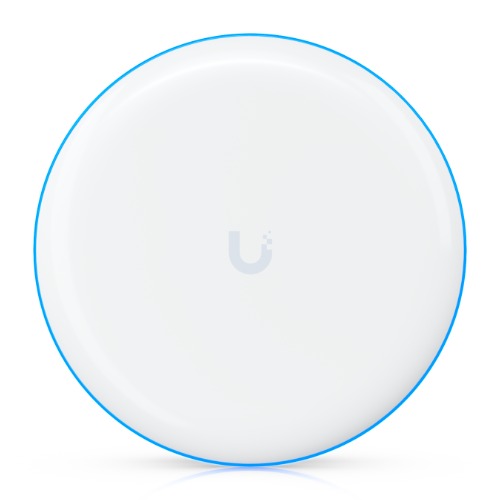

Ubiquiti UBB-XG-Single, 60 GHz Wireless Point-To-Point Bridge, 10G SFP+ Uplink, Maximum Performance, 5 GHz Backup Radio, Single Pack
$1,043.63 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
Ubiquiti UBB-XG-Single
SKU: UBB-XG-Single
Tech Specs: Click Here
Installation Guide: Click Here
Description:
60 GHz wireless point-to-point bridge with a 10G SFP+ uplink for maximum performance and a 5 GHz backup radio, single pack
Why Choose This?
The Ubiquiti UBB-XG-Single delivers blazing-fast 60 GHz wireless point-to-point bridging with up to 6 Gbps throughput and a 500 m range, ideal for high-capacity links in urban or campus environments. Its 10G SFP+ uplink ensures seamless integration into high-speed networks, while the 5 GHz backup radio provides reliable failover during adverse 60 GHz conditions. This single-pack unit, including a PoE++ adapter, is perfect for replacements or spares in demanding PtP deployments.
Key Features
- 60 GHz Main Radio (6 Gbps max rate) – Delivers ultra-high-speed wireless bridging for bandwidth-intensive applications.
- 10G SFP+ Uplink Port – Enables direct high-speed fiber connectivity to switches or routers.
- 5 GHz Backup Radio (866.6 Mbps) – Ensures link continuity with automatic failover in rain or interference.
- IPX6 Weatherproof Design – Withstands harsh outdoor conditions for reliable long-term performance.
- Built-in LED Alignment Indicators – Simplifies precise installation and optimization for maximum signal strength.
Full Specifications
| Category | Details |
|---|---|
| Product Name | UniFi Building Bridge XG (UBB-XG-Single) |
| Max. Range | 500 m (1,640 ft) |
| Operating Modes | PtP |
| Networking Interfaces | (1) GbE RJ45 PoE++ port, (1) 1/10G SFP+ port |
| Management | Ethernet, Bluetooth |
| Main Radio Frequency (60 GHz) | 57–66 GHz |
| Main Radio Max. Data Rate | 6 Gbps |
| Main Radio Antenna Gain | 21 dBi |
| Main Radio Max. TX Power | 16 dBm |
| Main Radio Channel Bandwidth | 1,080/2,160 MHz |
| Backup Radio Frequency (5 GHz) | US/CA: 5150–5250, 5250–5350, 5470–5725, 5725–5850 MHz; Worldwide: 5150–5850 MHz |
| Backup Radio Max. Data Rate | 866.6 Mbps (BW80) |
| Backup Radio Antenna Gain | 14 dBi |
| Backup Radio Max. TX Power | 23 dBm |
| WiFi Standards | WiFi 5 (802.11ac), 802.11ad/ay |
| MIMO (5 GHz) | 2 x 2 (DL MU-MIMO) |
| Wireless Security | WPA2 AES |
| Dimensions | ⌀191.8 x 59 mm (⌀7.6 x 2.3″) |
| Weight | Device: 1.7 kg (3.8 lb); With mount: 2.9 kg (6.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mounting | Wall, pole (1–2.5″ / 25–63.5 mm diameter) |
| Weatherproofing | IPX6 |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Power Method | PoE++ (Passive PoE) |
| Supported Voltage | 48V DC ±10% |
| Max. Power Consumption | 29–31.2W |
| In the Box (Single) | (1) UBB-XG, PoE adapter, mount |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, Terragraph, NDAA compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput and range? Up to 6 Gbps on 60 GHz with a 500 m (1,640 ft) range; optimized for short- to medium-range high-capacity PtP links.
- Q: Does the single pack include a power adapter? Yes, the UBB-XG-Single includes (1) PoE++ power adapter; 2-packs include two.
- Q: Is it pre-paired out of the box? 2-packs are pre-paired; single units are for spares/replacements and require UniFi Network management or standalone pairing (firmware 2.1.0+).
- Q: What power input is required? PoE++ Passive PoE (48V DC ±10%, max 31.2W); compatible with UniFi PoE switches or included adapter.
- Q: How does the 5 GHz backup work? Automatically fails over if 60 GHz link degrades (e.g., due to rain), providing 866.6 Mbps redundancy on WiFi 5.
| Weight | 4.6 kg |
|---|---|
| Dimensions | 191.8 × 191.8 × 59 mm |
| Product Create Date | 23/02/2026 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UBB-XG-Single |
