Ubiquiti U7 Pro XGS, Ceiling-mounted 8-stream WiFi 7 AP,Dedicated Spectral Scanning Radio,10/5/2.5/1 GbE Support,160 m² Coverage,500+ Devices
$658.07 inc GST
Manufacturer: Ubiquiti
Availability: BRS:149 ADL:39 SYD:353 MEL:143 WA:24
708 in stock
Ubiquiti U7 Pro XGS
SKU: U7-Pro-XGS
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•WiFi 7 with 6 GHz support
•8 spatial streams
•Real-time spectral analysis for enhanced channel selection
•160 m² (1,750 ft²) coverage
•500+ connected devices
•Powered using PoE++
•10 GbE uplink
Why Choose This?
The Ubiquiti U7 Pro XGS is a ceiling-mounted 8-stream WiFi 7 access point designed for high-density environments, delivering tri-band performance across 2.4/5/6 GHz with up to 500+ client support and 160 m² coverage. Its dedicated spectral scanning radio ensures optimal channel selection by analyzing interference in real-time, while the 10 GbE RJ45 port with PoE++ support eliminates wired bottlenecks for multi-gigabit wireless speeds. Ideal for enterprises needing reliable, future-proof WiFi with advanced features like MU-MIMO, band steering, and fast roaming.
Key Features
- WiFi 7 (802.11be) with 8 spatial streams – Provides ultra-high throughput up to 15 Gbps aggregate across tri-band for demanding networks.
- Dedicated Spectral Scanning Radio – Enables real-time spectral analysis to mitigate interference and optimize performance automatically.
- 10 GbE RJ45 Uplink (10/5/2.5/1 GbE) – Supports multi-gigabit backhaul without bottlenecks, powered via PoE++.
- 160 m² (1,750 ft²) Coverage, 500+ Clients – Handles high-density deployments like offices or venues with MU-MIMO efficiency.
- Advanced UniFi Features (Fast Roaming, Band Steering, PPSK) – Enhances seamless connectivity, security, and management in enterprise setups.
Full Specifications
| Category | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| MIMO Configuration | 6 GHz: 2×2 (DL/UL MU-MIMO); 5 GHz: 4×4 (DL/UL MU-MIMO); 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320); 5 GHz: 8.6 Gbps (BW240); 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: 6 dBi; 5 GHz: 6 dBi; 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 24 dBm; 5 GHz: 29 dBm; 2.4 GHz: 23 dBm |

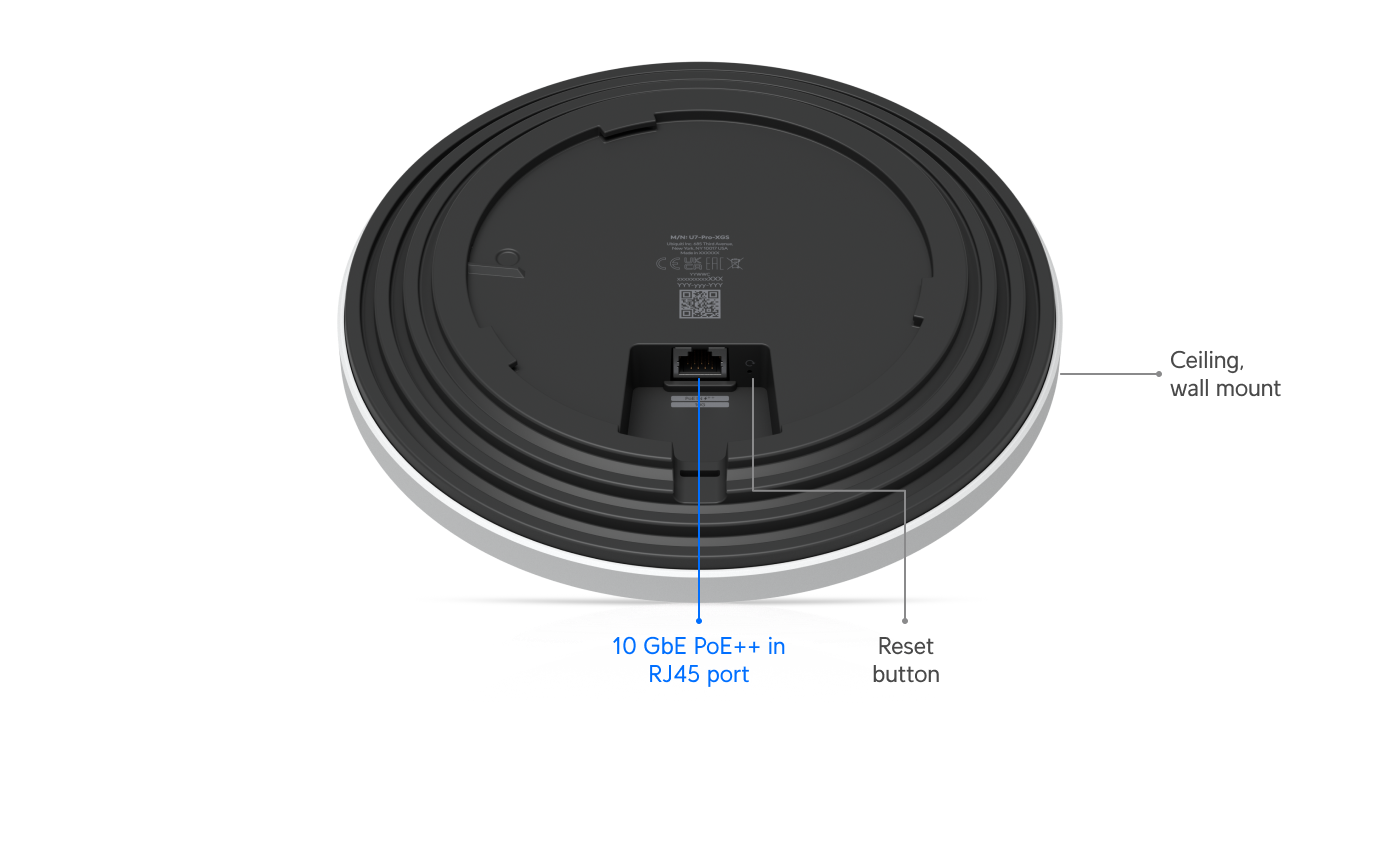

| Networking Interface | (1) 10 GbE RJ45 port (10/5/2.5/1 GbE support) |
| Power Consumption | Max. 29W |
| Supported Voltage | 42.5–57V DC (PoE++) |

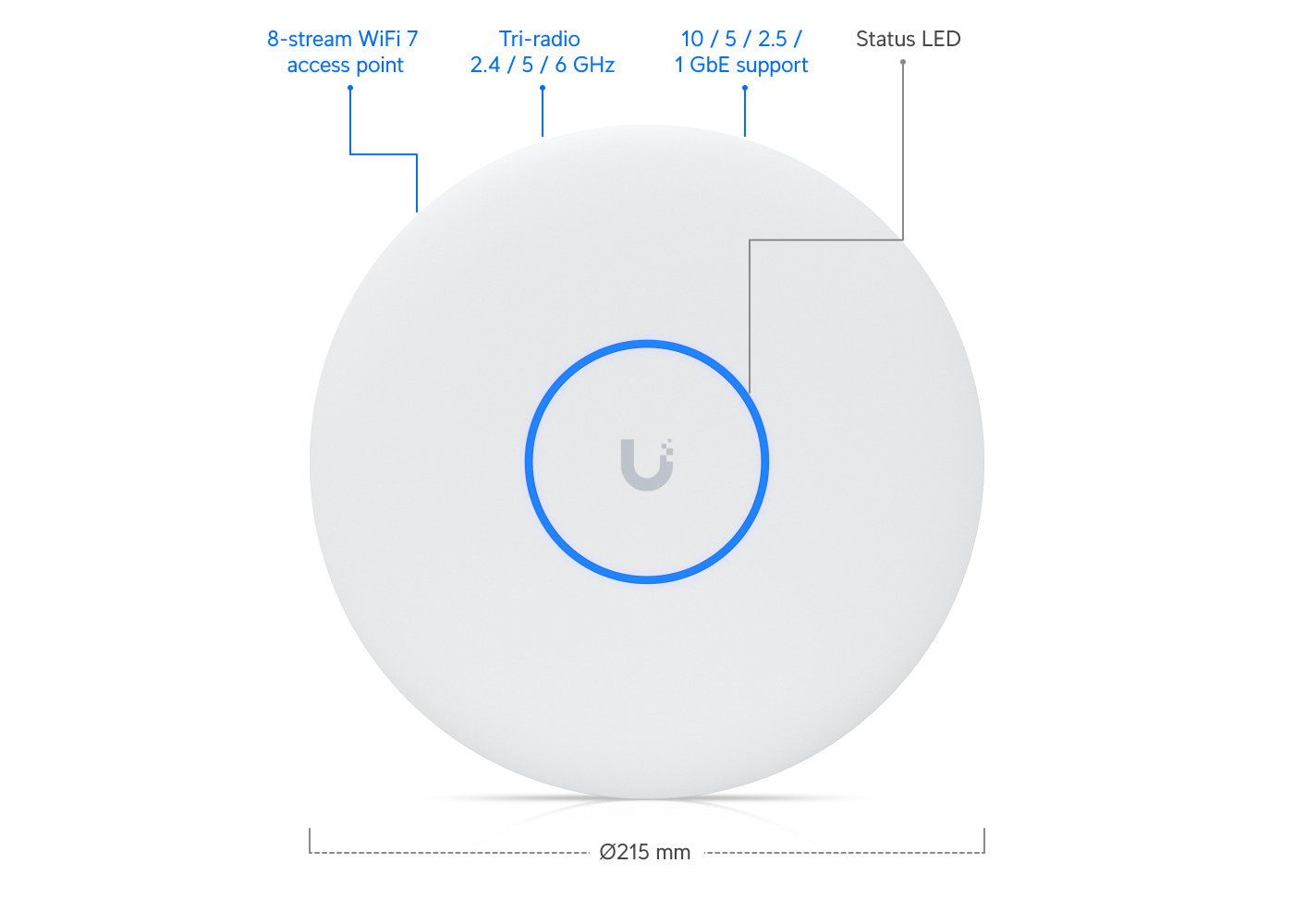

| Dimensions | ⌀215 x 32.5 mm (⌀8.5 x 1.3″) |
| Weight | 800 g (1.8 lb) |

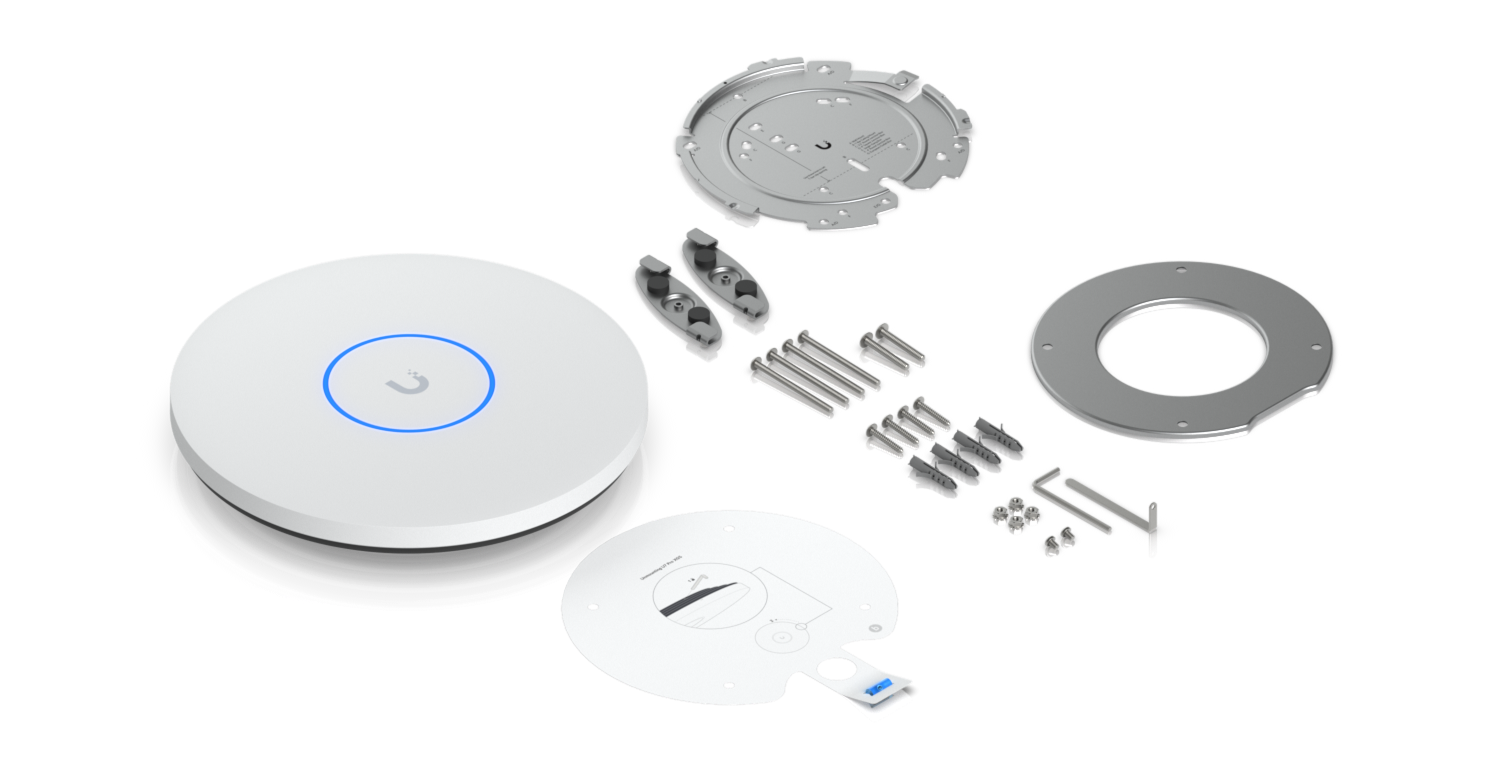

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Spectral Scanning | Dedicated Real-Time Spectral Analysis |
| Software Requirements | UniFi Network 9.0.114+ (White), 9.1.120+ (Black) |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What WiFi standard does the U7 Pro XGS support? WiFi 7 (802.11be) with tri-band operation on 2.4/5/6 GHz, including EHT channels up to 320 MHz and Multi-Link Operation (MLO).
- Q: Does it require PoE++ for power? Yes, it supports 42.5–57V DC via PoE++ on the 10 GbE RJ45 port, with max consumption of 29W.
- Q: What is the coverage and client capacity? Up to 160 m² (1,750 ft²) coverage and 500+ simultaneous clients in high-density environments.
- Q: Is there a dedicated spectral scanning radio? Yes, it features a dedicated radio for real-time spectral analysis to optimize channel selection and reduce interference.
- Q: What UniFi software version is required? UniFi Network version 9.0.114 or later for white model, 9.1.120 or later for black model.
| Weight | 1.4 kg |
|---|---|
| Dimensions | 260 × 255 × 80 mm |
| Product Create Date | 13/03/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | U7-Pro-XGS |
| Opt Accessory | NHU-USW-PRO-HD-24-POE, NHU-UICARE-U7-PRO-XGS-D |
