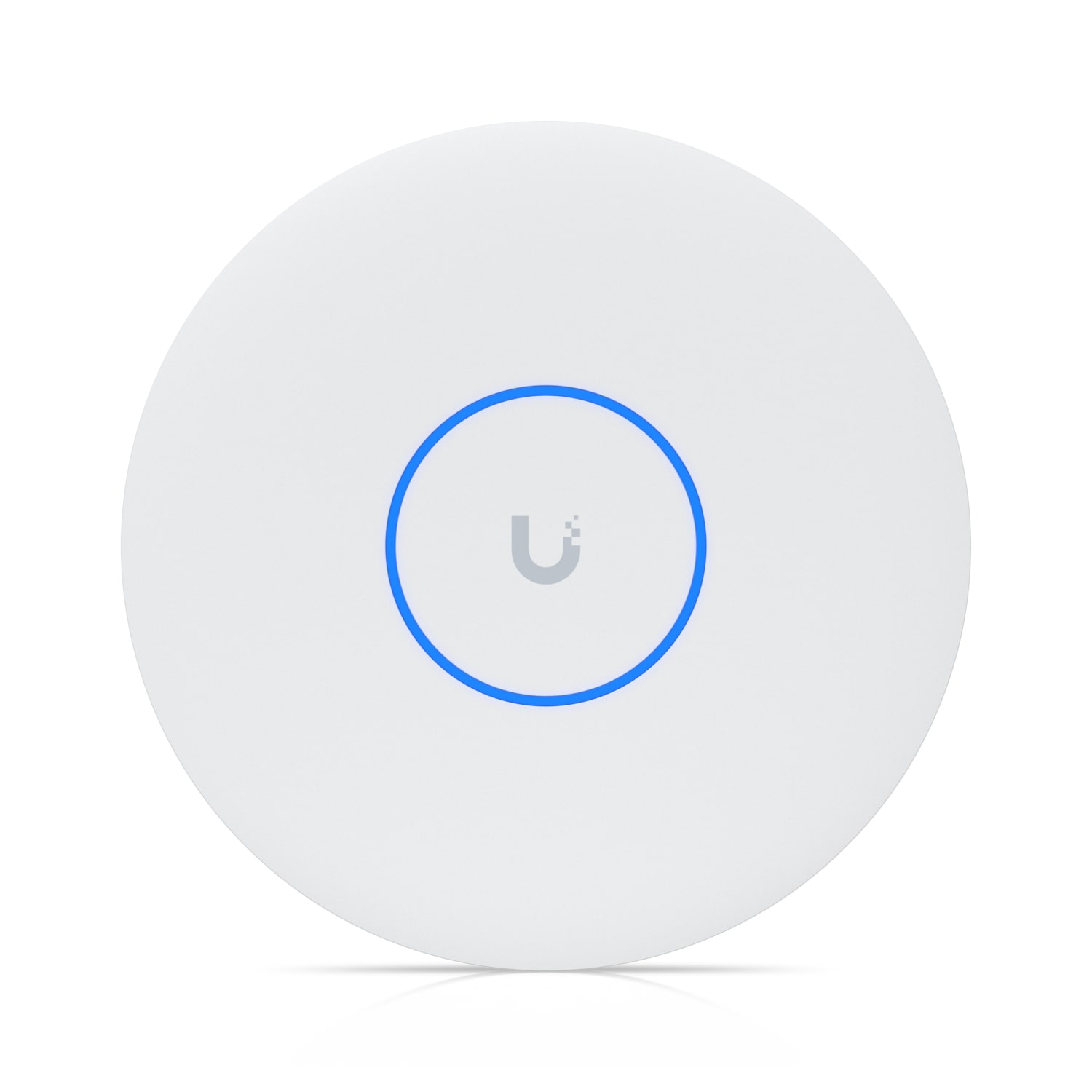

Ubiquiti U7 Pro XG, White,Ceiling-mounted 6-stream WiFi 7 AP Wiith 10/5/2.5/1 GbE Support,140 m² Coverage, 300+ Connect Devices, Powered By PoE+

Ubiquiti U7 Pro XG, White

SKU: U7-Pro-XG

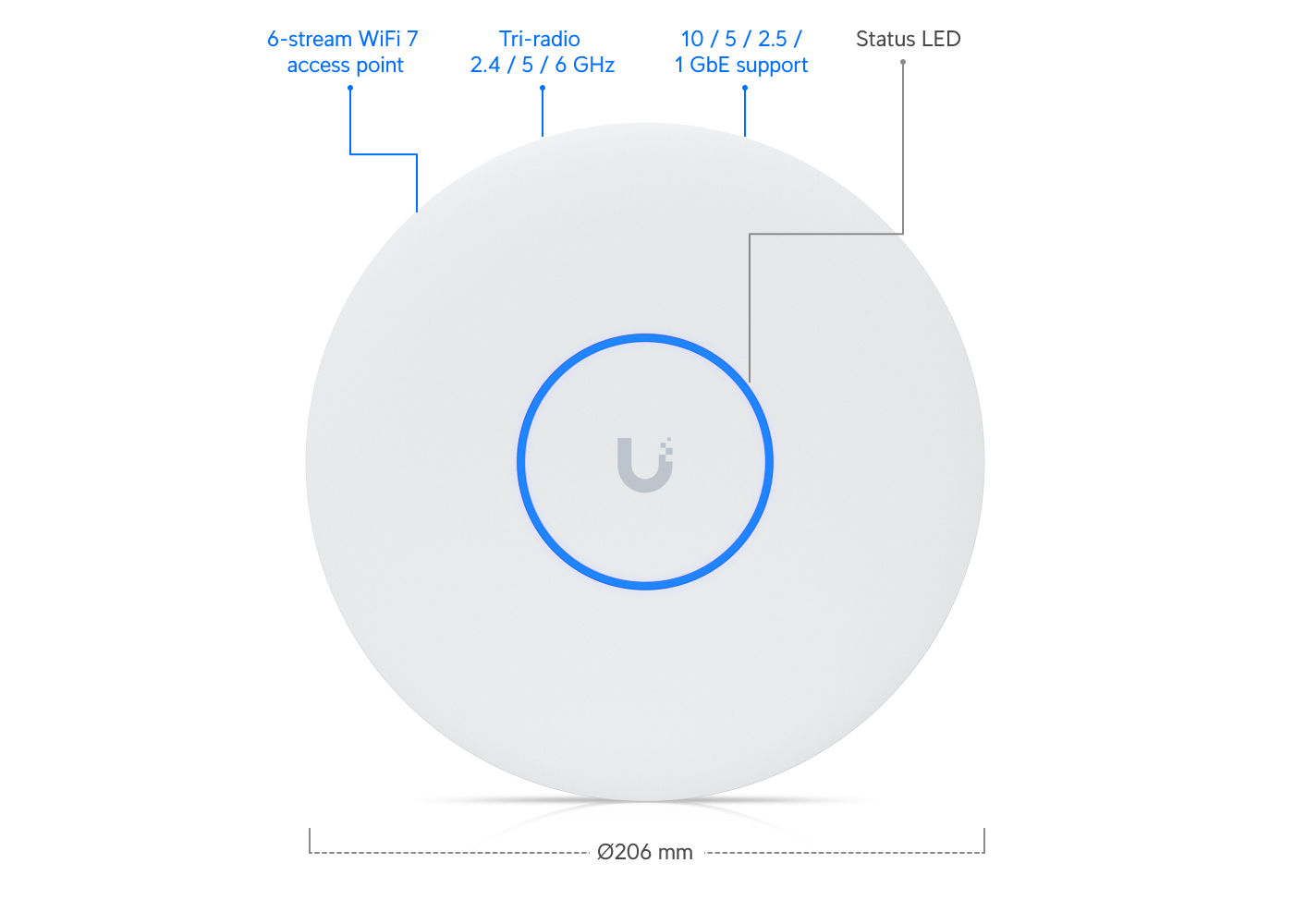

Description: Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•WiFi 7 with 6 GHz support
•6 spatial streams
•140 m² (1,500 ft²) coverage
•300+ connected devices
•Powered using PoE+
•10 GbE uplink
• White

Why Choose This?

The Ubiquiti U7 Pro XG is a high-performance ceiling-mounted WiFi 7 access point designed for enterprise environments, delivering tri-band coverage across 2.4/5/6 GHz with 6 spatial streams and support for 300+ devices over 140 m². Its 10 GbE uplink ensures no bottlenecks for multi-gigabit speeds, while PoE+ powering simplifies deployment without extra injectors. Ideal for demanding networks needing future-proof WiFi 7 features like MU-MIMO, band steering, and fast roaming.

Key Features

• WiFi 7 (802.11be) with 6 spatial streams – Provides ultra-fast tri-band speeds up to 10.8 Gbps aggregate for seamless high-density connectivity.

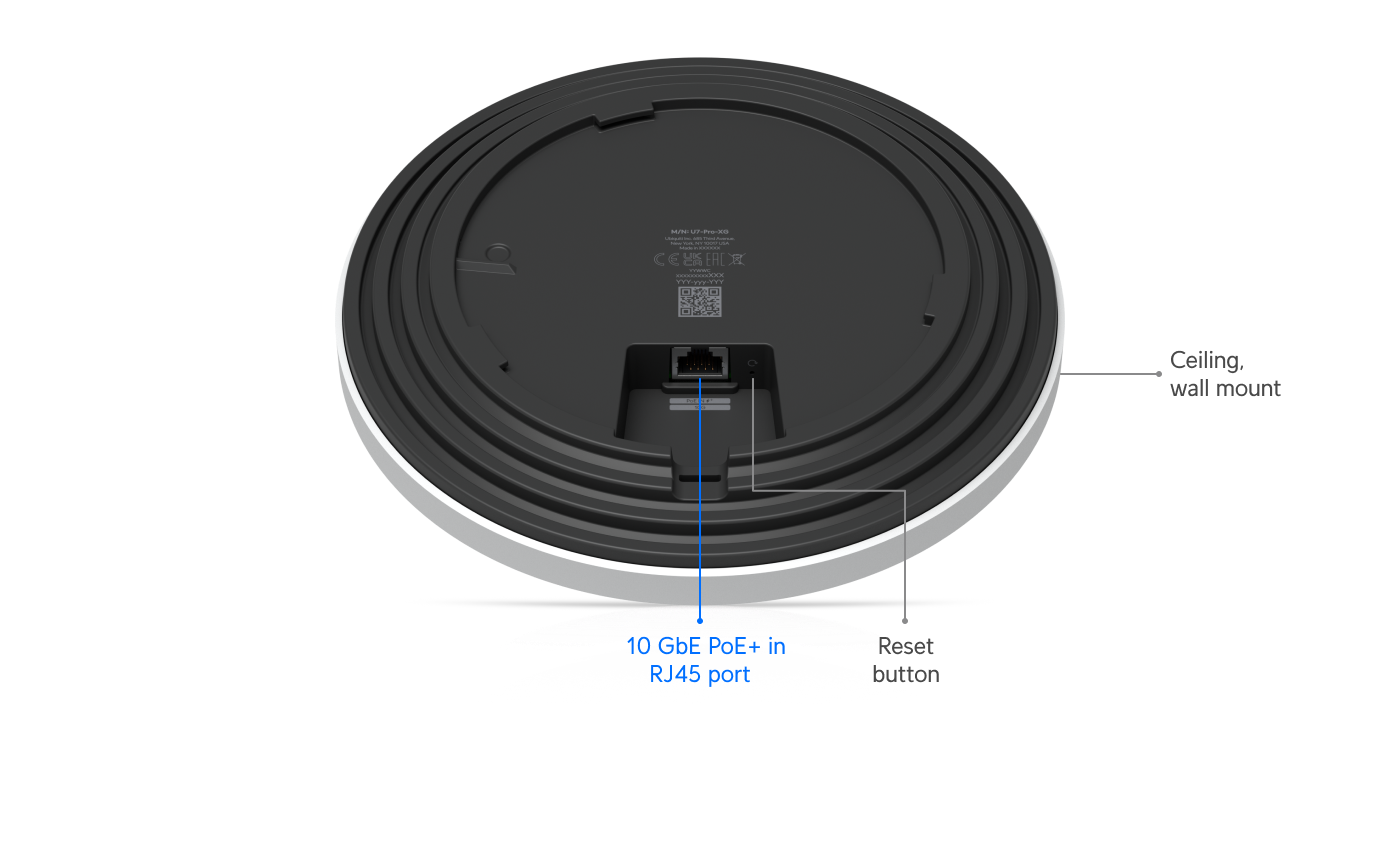

• 10 GbE RJ45 uplink (10/5/2.5/1 GbE support) – Eliminates wired bottlenecks in multi-gigabit networks for maximum throughput.
• 140 m² (1,500 ft²) coverage and 300+ clients – Handles large areas and numerous devices reliably in offices or public spaces.
• PoE+ powered (42.5–57V DC) – Easy installation using standard PoE+ switches, no separate power adapter needed.
• Advanced software features (band steering, fast roaming, PPSK) – Enhances security, performance, and management in UniFi ecosystems.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What PoE standard does the U7 Pro XG require? It uses PoE+ (802.3at), supporting 42.5–57V DC with max 22W consumption; compatible with standard PoE+ switches.
• Q: What is the coverage and client capacity? Up to 140 m² (1,500 ft²) coverage and 300+ simultaneous client devices in optimal conditions.
• Q: Does it support 10 GbE fully? Yes, the RJ45 port supports 10/5/2.5/1 GbE speeds for high-throughput backhaul.
• Q: Can it be wall-mounted? Yes, includes a lite mount for both ceiling and wall installation.
• Q: What UniFi Network version is required? Version 9.0.114 or later for white model; 9.1.120 or later for black variant.
