Name: Ubiquiti U7 Pro XG, Black ,Ceiling-mounted 6-stream WiFi 7 AP Wiith 10/5/2.5/1 GbE Support,140 m² Coverage, 300+ Connect Devices, Powered By PoE+
SKU: NHU-U7-PRO-XG-B
Availability: OutOfStock

Ubiquiti U7 Pro XG, Black ,Ceiling-mounted 6-stream WiFi 7 AP Wiith 10/5/2.5/1 GbE Support,140 m² Coverage, 300+ Connect Devices, Powered By PoE+

$422.45 inc GST

Some stock is onhand in the back of a warehouse somewhere.
Please email [email protected] to confirm.

Manufacturer: Ubiquiti

Stock: BRS:CALL ADL:CALL SYD:CALL MEL:CALL(wh:2) PER:CALL

Out of stock

SKU: NHU-U7-PRO-XG-B Categories: Network - UniFi, WiFi

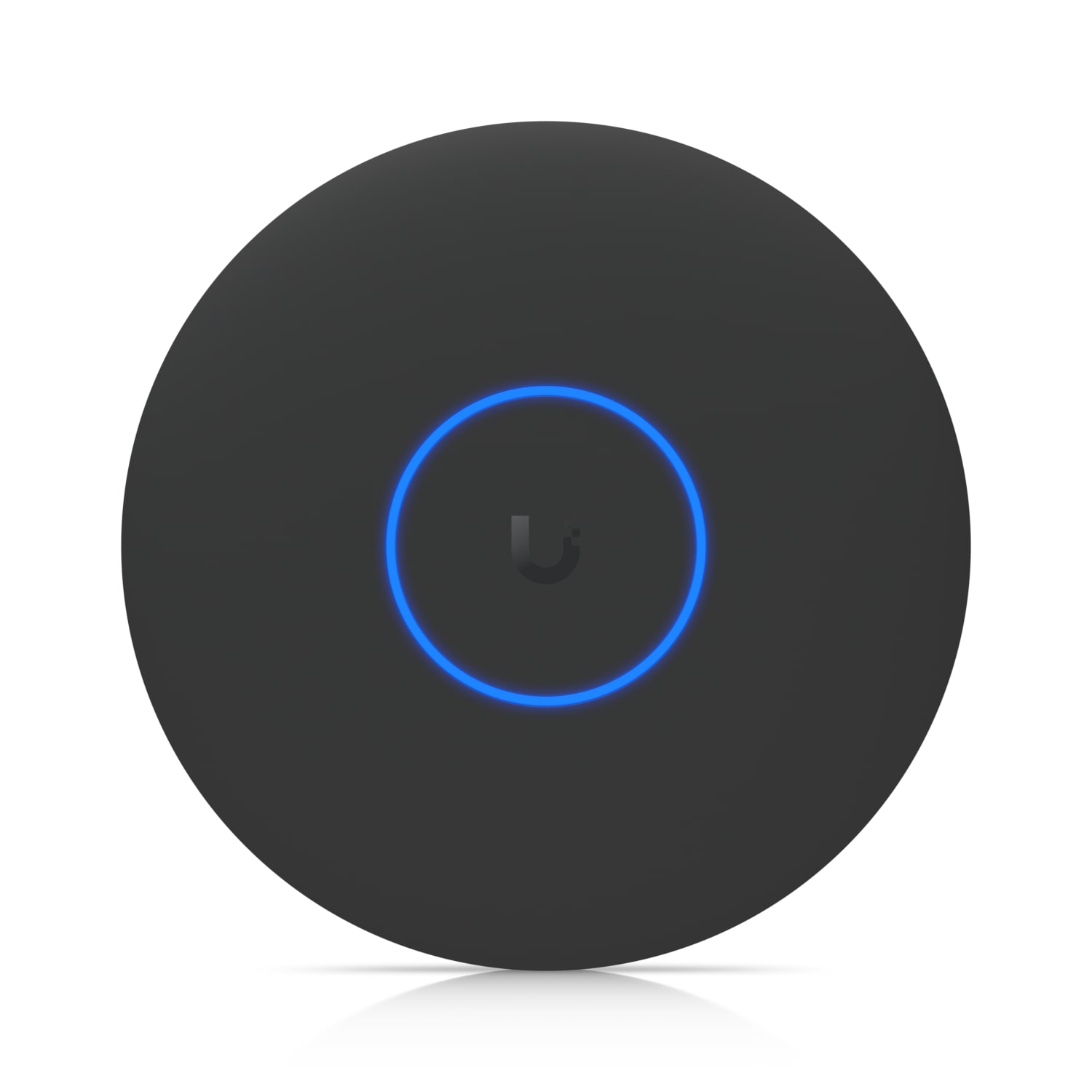

Ubiquiti U7 Pro XG, Black

SKU: U7-Pro-XG

Description: Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•WiFi 7 with 6 GHz support
•6 spatial streams
•140 m² (1,500 ft²) coverage
•300+ connected devices
•Powered using PoE+
•10 GbE uplink
• Black

Why Choose This?

The Ubiquiti U7 Pro XG (U7-Pro-XG-B) is a high-performance ceiling-mounted WiFi 7 access point designed for demanding enterprise environments, delivering tri-band 2.4/5/6 GHz coverage up to 140 m² with support for 300+ devices. Its 10 GbE RJ45 port with multi-gigabit compatibility ensures future-proof backhaul speeds, while PoE+ powering simplifies deployment without extra injectors. Ideal for businesses needing ultra-fast, reliable wireless with advanced features like MU-MIMO, band steering, and seamless roaming.

Key Features

WiFi 7 with 6 spatial streams (2×2 MU-MIMO on all bands) – Enables multi-gigabit aggregate throughput up to 10.8 Gbps for high-density client performance.
10 GbE RJ45 uplink (10/5/2.5/1 GbE support) – Provides high-speed wired backhaul to handle heavy traffic without bottlenecks.
Tri-band operation (2.4/5/6 GHz) – Delivers interference-free 6 GHz connectivity with max rates of 5.8 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz).
140 m² (1,500 ft²) coverage and 300+ clients – Supports large areas and numerous devices with enterprise-grade capacity.
PoE+ powered (max 22W) – Easy installation using standard PoE+ switches, no separate power adapter needed.

Full Specifications

Category	Details
Model	U7-Pro-XG-B (Black)
WiFi Standard	WiFi 7 (802.11be)
Spatial Streams	6 (2×2 DL/UL MU-MIMO on 2.4/5/6 GHz)
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	300+
Networking Interface	(1) 10 GbE RJ45 port (10/5/2.5/1 GbE support)
Power Method	PoE+ (802.3at)
Max. Power Consumption	22W
Supported Voltage Range	42.5–57V DC
Dimensions	⌀206 x 32.5 mm (⌀8.1 x 1.3″)
Weight	750 g (1.7 lb)
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mounting	Ceiling, Wall (Lite Mount Included)
Max. Data Rate (6 GHz)	5.8 Gbps (BW320)
Max. Data Rate (5 GHz)	4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
Antenna Gain	6 dBi (6 GHz), 5 dBi (5 GHz), 4 dBi (2.4 GHz)
Max. TX Power	24 dBm (6 GHz), 26 dBm (5 GHz), 23 dBm (2.4 GHz)
Operating Temperature	-30 to 40° C (-22 to 104° F)
Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel, NDAA Compliant

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: What PoE standard does the U7 Pro XG require? It uses PoE+ (802.3at), with a maximum consumption of 22W; compatible with standard PoE+ switches or injectors.
Q: Does it support multi-gigabit Ethernet speeds? Yes, the single RJ45 port auto-negotiates at 10/5/2.5/1 GbE for flexible backhaul options.
Q: What is the coverage and client capacity? Up to 140 m² (1,500 ft²) coverage supporting 300+ simultaneous client devices in enterprise settings.
Q: Is WiFi 7 backward compatible? Fully backward compatible with 802.11ax (WiFi 6), 802.11ac (WiFi 5), and older standards.
Q: What UniFi Network version is required? UniFi Network Version 9.1.120 and later for the black U7 Pro XG model.

Weight	1.3 kg
Dimensions	250 × 246 × 78 mm
Product Create Date	22/05/2025

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	U7-Pro-XG-B
Opt Accessory	NHU-USW-PRO-HD-24-POE, NHU-UACC-POE++-10G, NHU-UICARE-U7-PRO-XG-B-D
