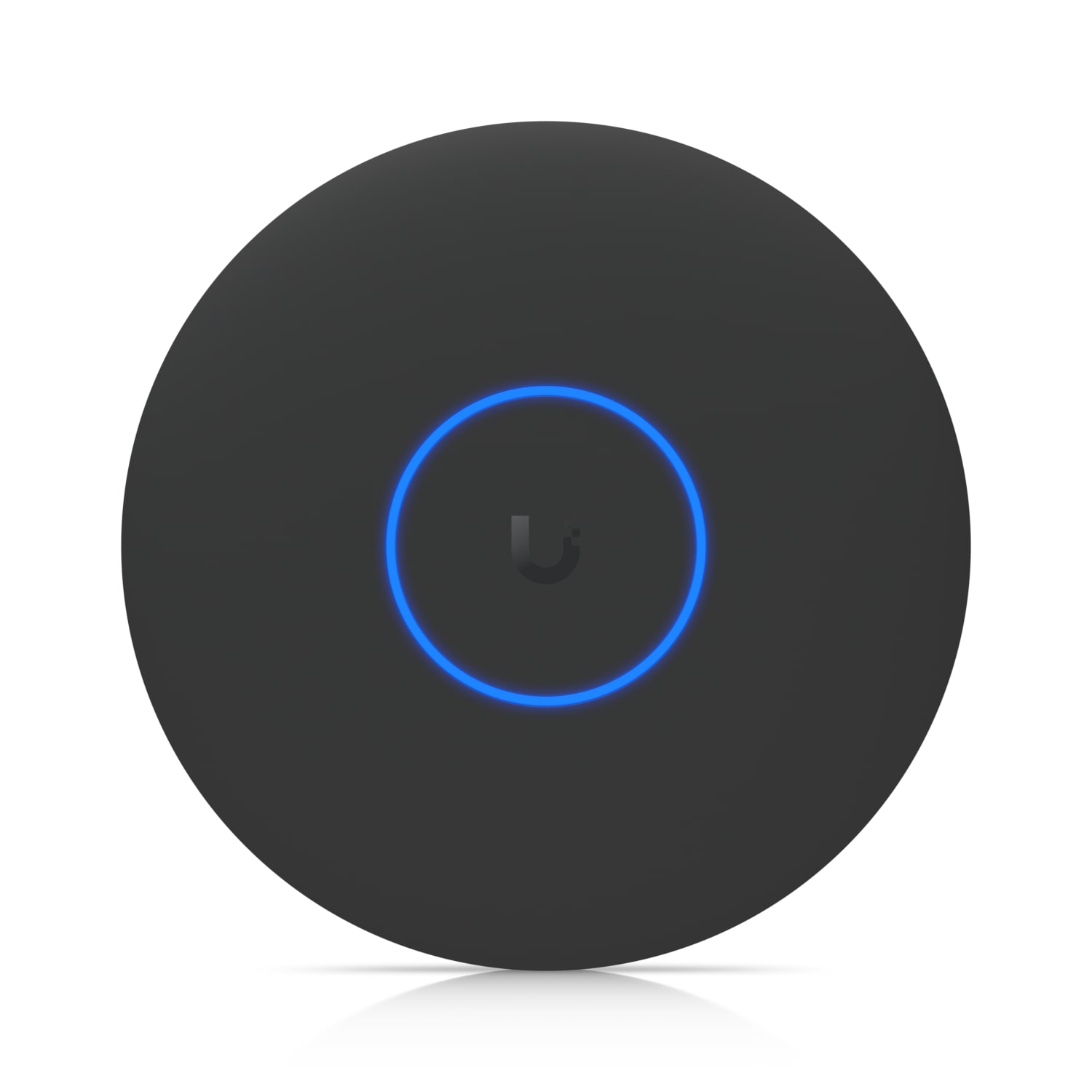

Ubiquiti U7 Pro XG, Black ,Ceiling-mounted 6-stream WiFi 7 AP Wiith 10/5/2.5/1 GbE Support,140 m² Coverage, 300+ Connect Devices, Powered By PoE+

Ubiquiti U7 Pro XG, Black

SKU: U7-Pro-XG

Description: Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•WiFi 7 with 6 GHz support
•6 spatial streams
•140 m² (1,500 ft²) coverage
•300+ connected devices
•Powered using PoE+
•10 GbE uplink
• Black

Why Choose This?

The Ubiquiti U7 Pro XG (U7-Pro-XG-B) is a high-performance ceiling-mounted WiFi 7 access point designed for demanding enterprise environments, delivering tri-band 2.4/5/6 GHz coverage up to 140 m² with support for 300+ devices. Its 10 GbE RJ45 port with multi-gigabit compatibility ensures future-proof backhaul speeds, while PoE+ powering simplifies deployment without extra injectors. Ideal for businesses needing ultra-fast, reliable wireless with advanced features like MU-MIMO, band steering, and seamless roaming.

Key Features

• WiFi 7 with 6 spatial streams (2×2 MU-MIMO on all bands) – Enables multi-gigabit aggregate throughput up to 10.8 Gbps for high-density client performance.
• 10 GbE RJ45 uplink (10/5/2.5/1 GbE support) – Provides high-speed wired backhaul to handle heavy traffic without bottlenecks.
• Tri-band operation (2.4/5/6 GHz) – Delivers interference-free 6 GHz connectivity with max rates of 5.8 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz).
• 140 m² (1,500 ft²) coverage and 300+ clients – Supports large areas and numerous devices with enterprise-grade capacity.
• PoE+ powered (max 22W) – Easy installation using standard PoE+ switches, no separate power adapter needed.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What PoE standard does the U7 Pro XG require? It uses PoE+ (802.3at), with a maximum consumption of 22W; compatible with standard PoE+ switches or injectors.
• Q: Does it support multi-gigabit Ethernet speeds? Yes, the single RJ45 port auto-negotiates at 10/5/2.5/1 GbE for flexible backhaul options.
• Q: What is the coverage and client capacity? Up to 140 m² (1,500 ft²) coverage supporting 300+ simultaneous client devices in enterprise settings.
• Q: Is WiFi 7 backward compatible? Fully backward compatible with 802.11ax (WiFi 6), 802.11ac (WiFi 5), and older standards.
• Q: What UniFi Network version is required? UniFi Network Version 9.1.120 and later for the black U7 Pro XG model.
