Ubiquiti U7 Pro Wall, 6 Spatial Strea,6 GHz Support Tailored,PoE+, Voltage 44—57V DC, Max Power 22W,2.5 GbE uplink,300+ Devices,140 m² cover
$372.47 inc GST
Manufacturer: Ubiquiti
Availability: BRS:244 ADL:3 SYD:371 MEL:127 WA:40
785 in stock

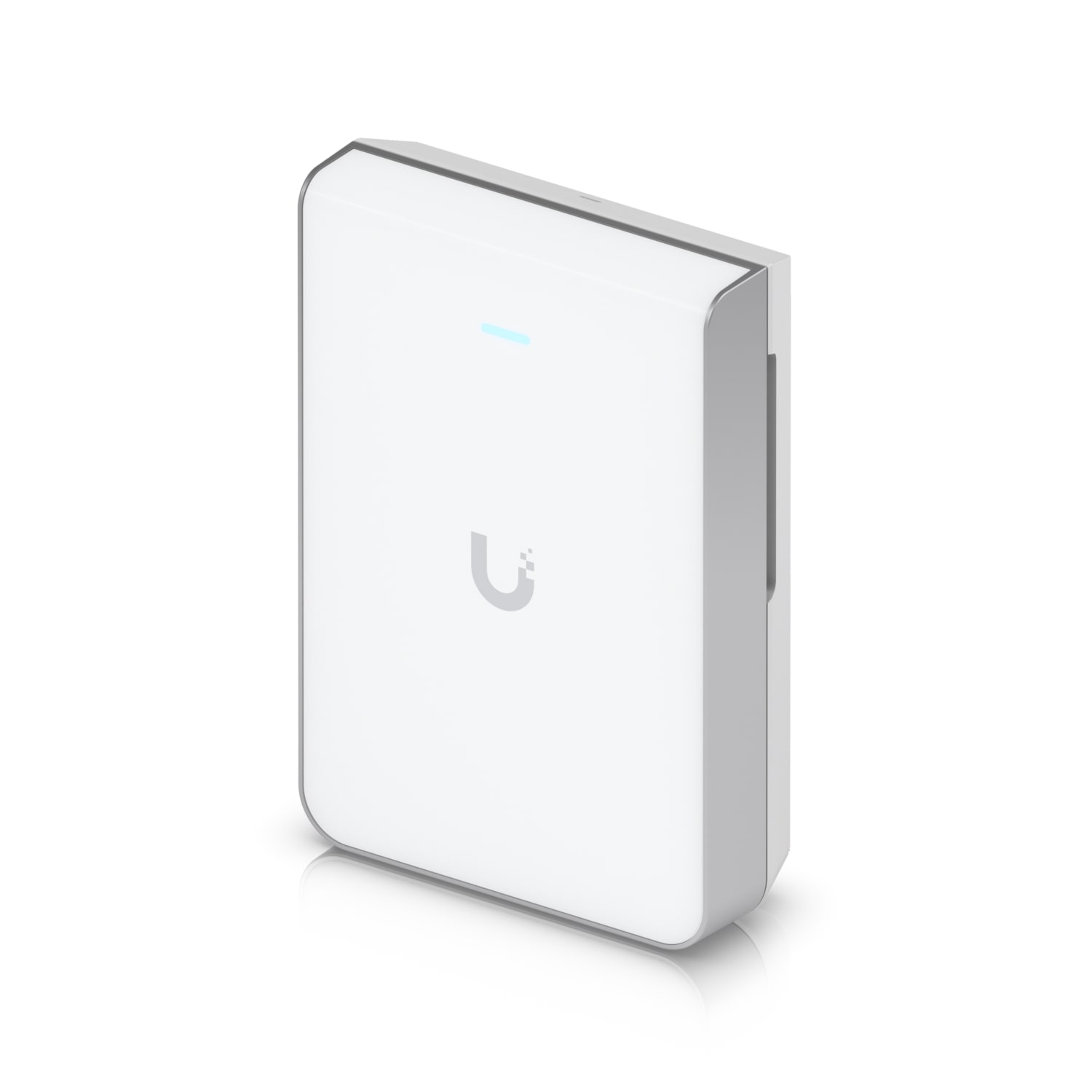

Ubiquiti U7 Pro Wall
SKU: U7-Pro-Wall
Tech Specs: Click Here
Installation Guide: Click Here
Description: Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
Features:
•WiFi 7 with 6 GHz support
•6 spatial streams
•140 m² (1,500 ft²) coverage
•300+ connected devices
•Powered using PoE+
•2.5 GbE uplink

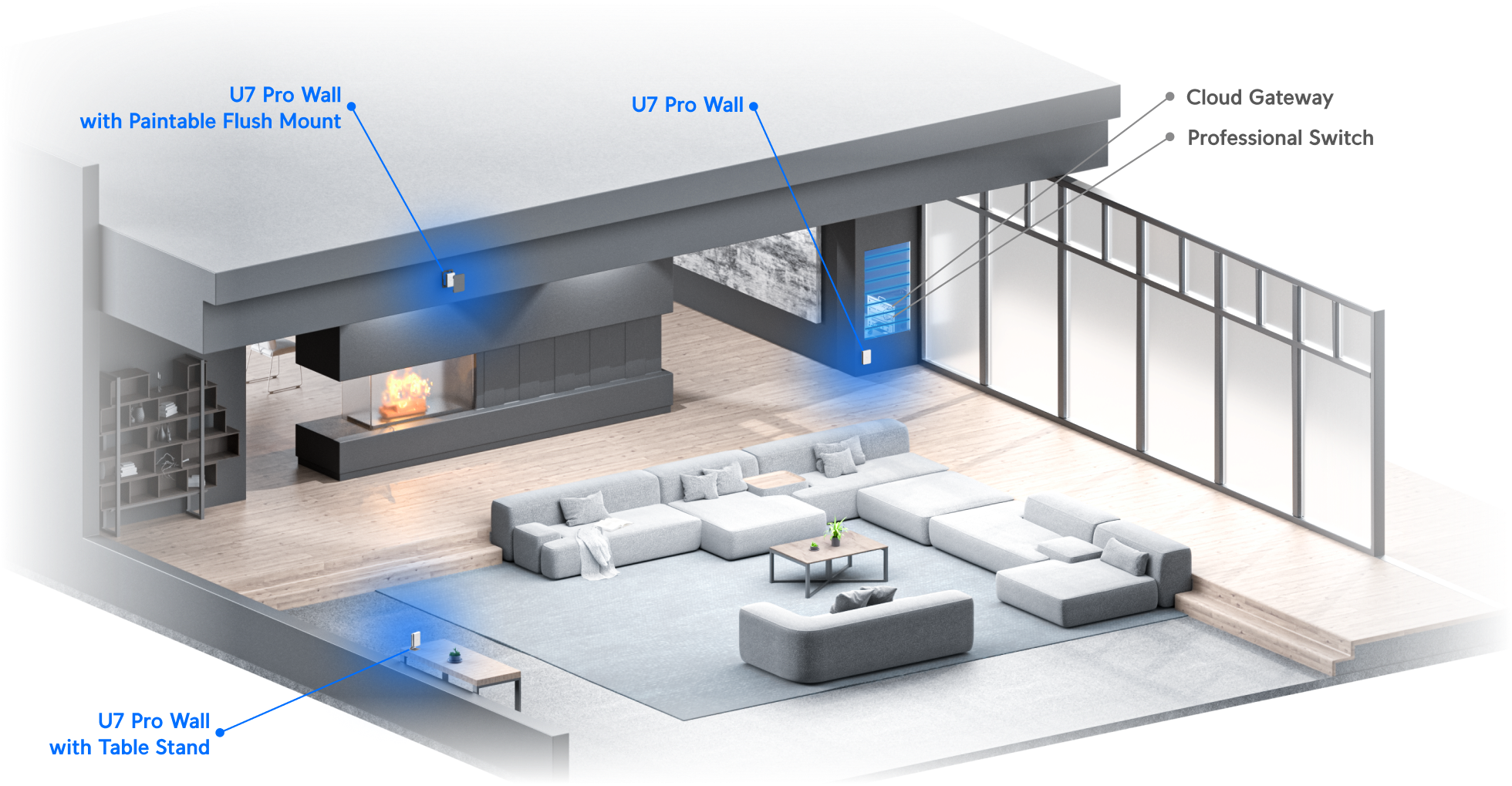

•Versatile deployment with optional Flush Mount and Table Stand accessories*
Why Choose This?
The Ubiquiti U7 Pro Wall is a wall-mounted WiFi 7 access point delivering tri-band performance across 2.4/5/6 GHz with 6 spatial streams for seamless, high-speed coverage in rooms up to 140 m². It supports over 300 simultaneous devices, features a 2.5 GbE uplink, and PoE+ powering for effortless deployment in homes, offices, or hospitality settings. Tailored for easy installation with advanced features like fast roaming and guest isolation, it ensures reliable, future-proof WiFi without interference.
Key Features
- WiFi 7 (802.11be) with 6 spatial streams – Delivers blazing-fast speeds up to 5.8 Gbps on 6 GHz for ultra-low latency and high throughput.
- Tri-band support (2.4/5/6 GHz) – Provides flexible, interference-free connectivity across all modern devices with 2×2 MU-MIMO on each band.
- 2.5 GbE PoE+ uplink – Ensures gigabit-plus wired backhaul and simple powering via standard PoE+ switches, no extra adapters needed.
- 140 m² coverage, 300+ clients – Handles dense environments like offices or hotels with consistent signal and massive device capacity.
- Advanced UniFi features (fast roaming, band steering, PPSK) – Enhances network management, security, and user experience in professional setups.
Full Specifications
| Category | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11a/b/g/n/ac/ax/be) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 22W |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (6 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate (6 GHz) | 5.8 Gbps (BW320) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (6 GHz) | 6 dBi |
| Antenna Gain (5 GHz) | 5 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (6 GHz) | 23 dBm |

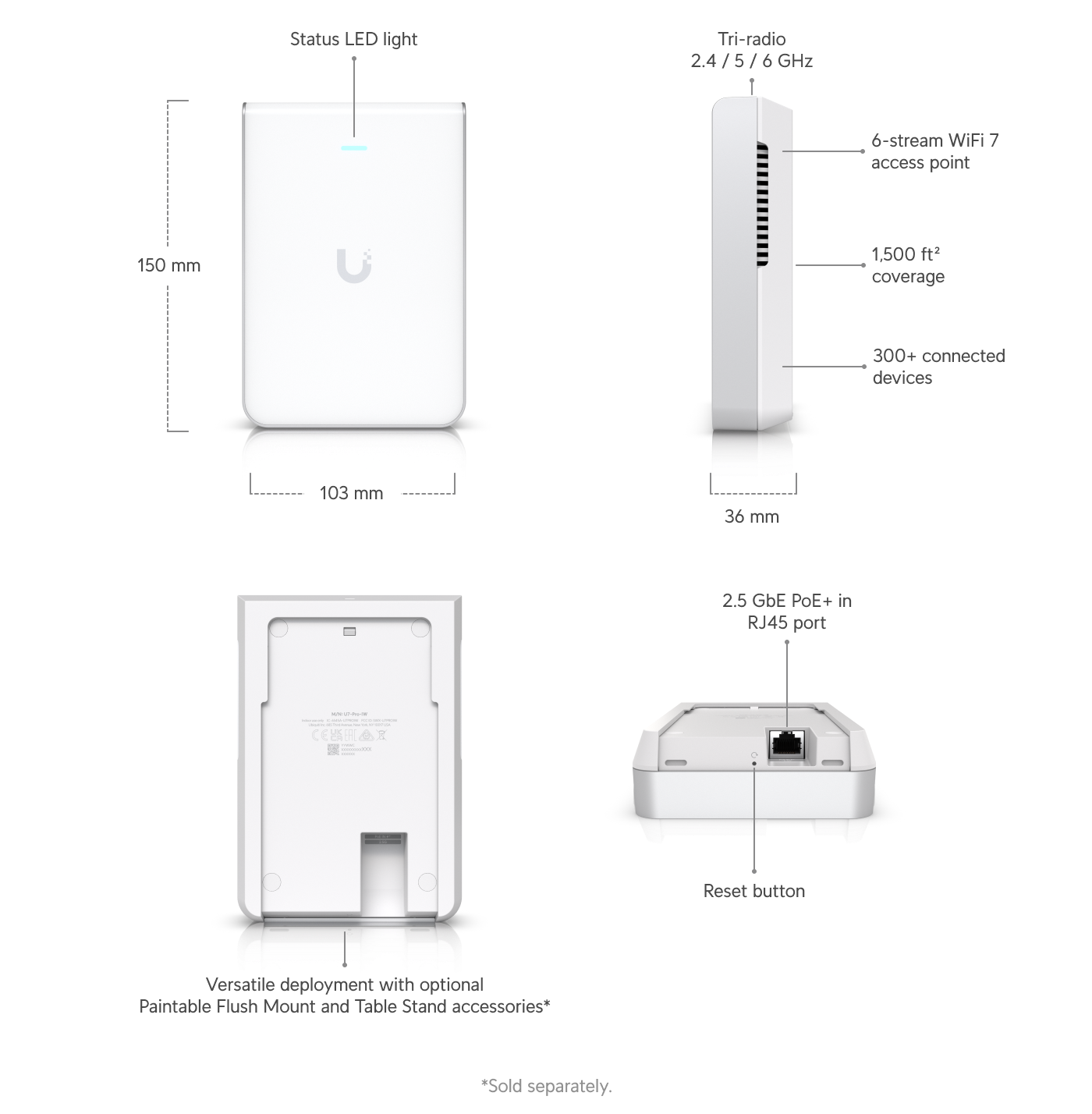

| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4″) |
| Weight | 580 g (1.3 lb) |

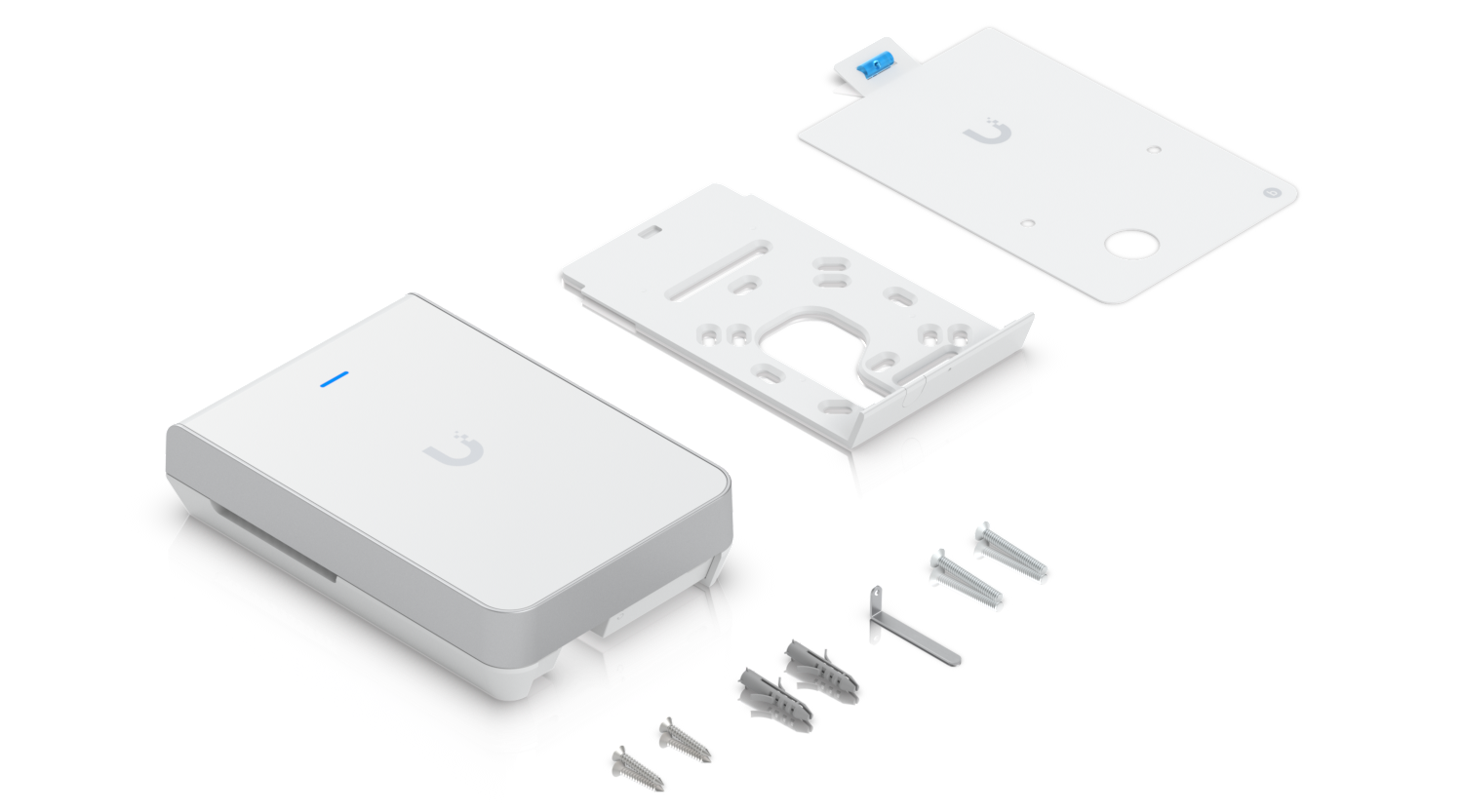

| Mounting | Wall (mount included) |
| Enclosure Material | Polycarbonate, aluminum |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Operating Humidity | 5 to 95% non-condensing |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: Does the U7 Pro Wall support WiFi 7? Yes, it fully supports WiFi 7 (802.11be) with tri-band operation across 2.4/5/6 GHz and up to 5.8 Gbps on 6 GHz.
- Q: What power method does it use? It requires PoE+ with a supported voltage range of 44–57V DC and max consumption of 22W.
- Q: How many devices can it handle? It supports 300+ concurrent clients with coverage up to 140 m² (1,500 ft²).
- Q: Is wall mounting included? Yes, a wall mount is included; optional accessories like paintable flush mount or table stand are available.
- Q: What UniFi Network version is required? UniFi Network Version 8.1.113 and later, with UniFi OS Version 3.2 and later.
| Weight | 0.78 kg |
|---|---|
| Dimensions | 208 × 156 × 76 mm |
| Product Create Date | 31/05/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | U7-Pro-Wall |
| Opt Accessory | NHU-UICARE-U7-PRO-WALL-D |
