Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments
$580.72 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:0 SYD:1 MEL:2 WA:1
5 in stock

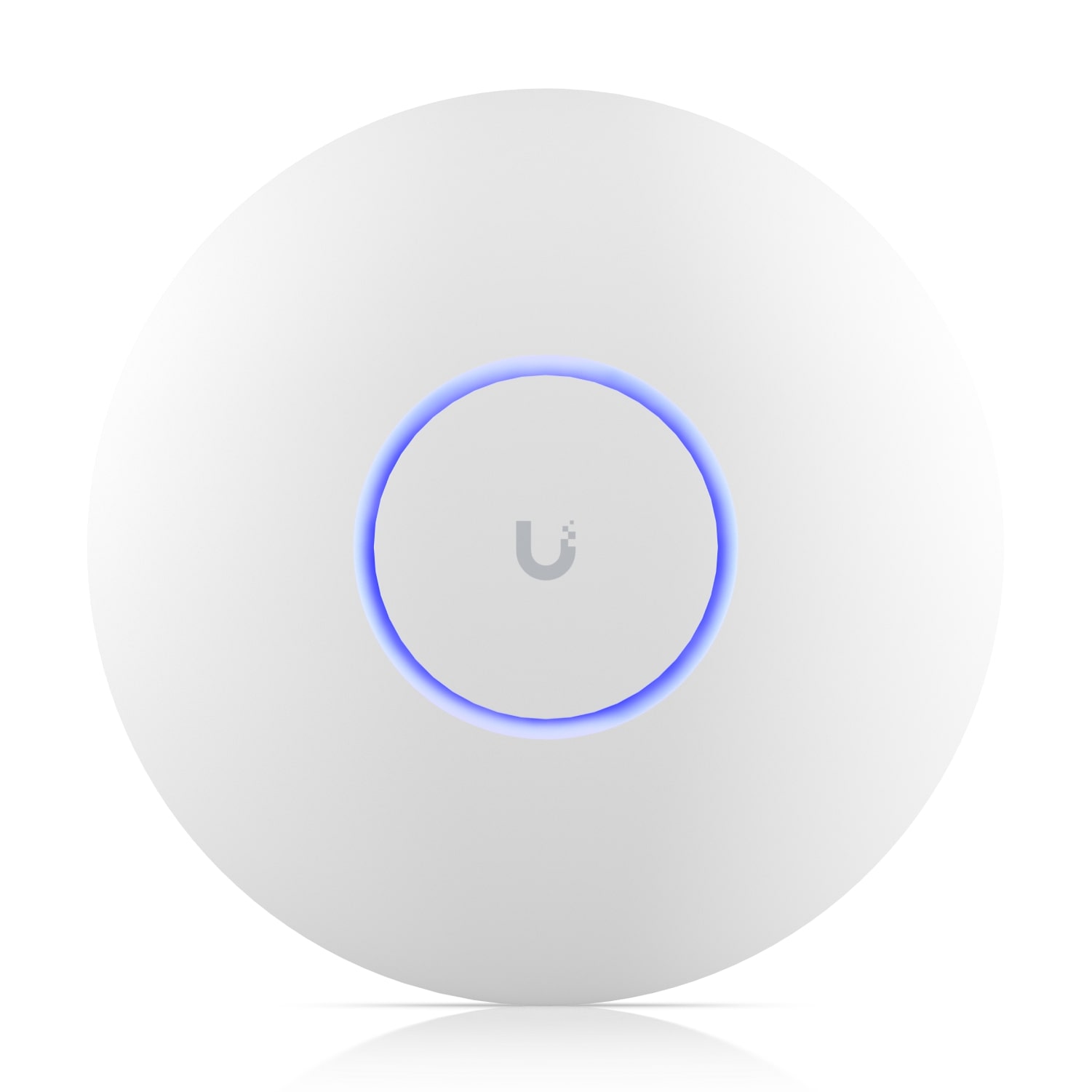

Ubiquiti U7-Pro-Max
SKU: U7-Pro-Max
Description:
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•WiFi 7 with 6 GHz support
•8 spatial streams
•Real-time spectral analysis for enhanced channel selection*
•160 m² (1,750 ft²) coverage
•500+ connected devices
•Powered using PoE+
•2.5 GbE uplink
*Requires UniFi Network 8.2.93 and later.
Why Choose This?
The Ubiquiti U7-Pro-Max is a high-performance ceiling-mounted WiFi 7 access point engineered for demanding large-scale environments, delivering interference-free connectivity with 8 spatial streams and tri-band support including 6 GHz. It supports over 500 devices across 160 m² (1,750 ft²) with aggregate speeds up to 15 Gbps via a 2.5 GbE uplink, real-time spectral analysis, and advanced features like MU-MIMO and fast roaming. Ideal for enterprises needing reliable, high-density WiFi, it ensures seamless performance powered by PoE+.
Key Features
- WiFi 7 with 6 GHz support – Enables ultra-fast speeds and low latency using the less congested 6 GHz band for future-proof performance.
- 8 Spatial Streams (2×[email protected]/6 GHz, 4×4@5 GHz) – Maximizes throughput for hundreds of simultaneous clients in high-density areas.
- Real-Time Spectral Analysis – Dedicated scanning engine identifies interference for optimal channel selection and reliable connectivity.
- 2.5 GbE PoE+ Uplink – Provides high-speed backhaul and simple powering without additional injectors.
- 500+ Client Capacity – Handles large-scale deployments like offices or venues with advanced management features.
Full Specifications
| Category | Details |
|---|---|

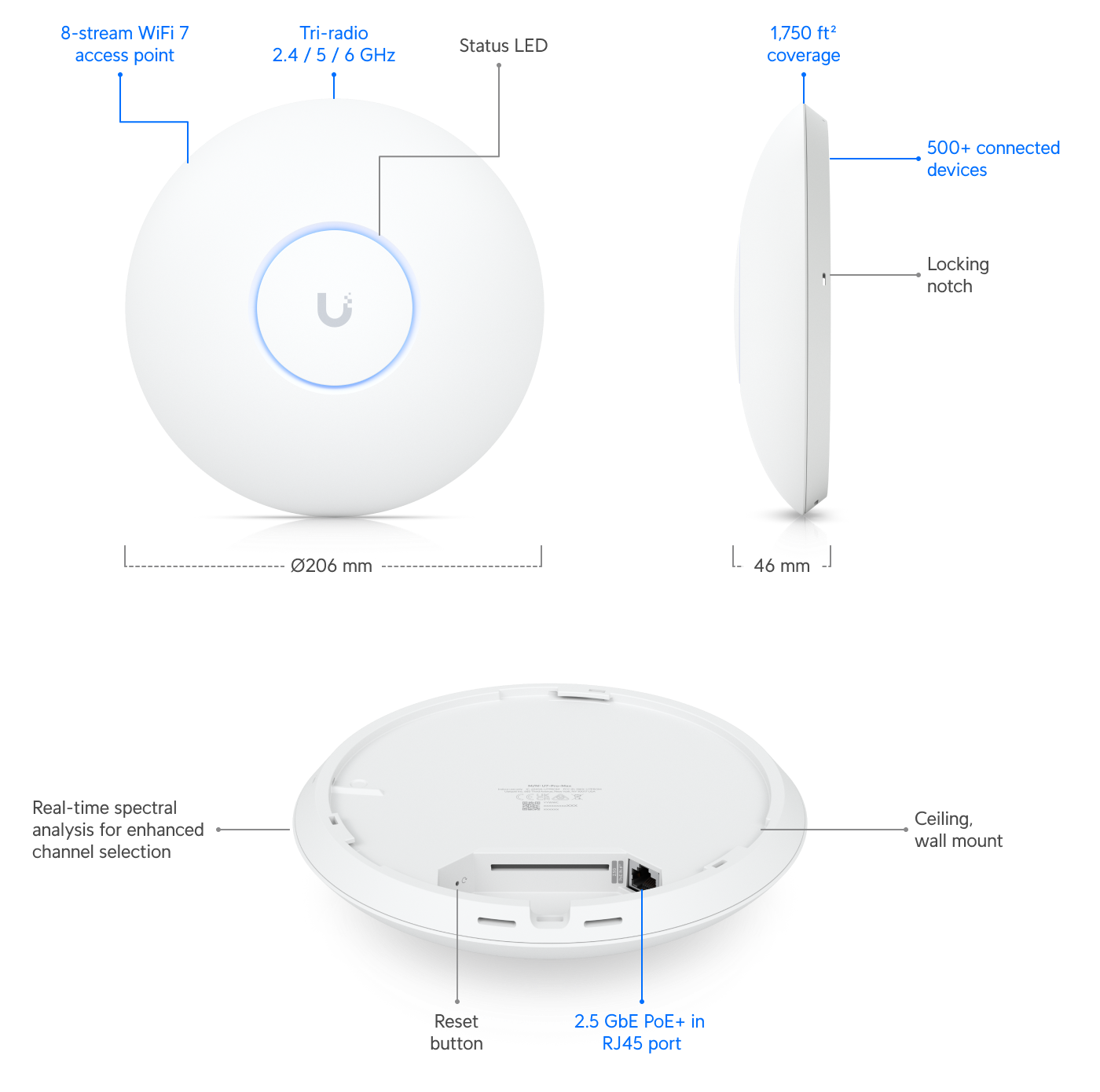

| Dimensions | ⌀206 x 46 mm (⌀8.1 x 1.8″) |
| Weight | 680 g (1.5 lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |

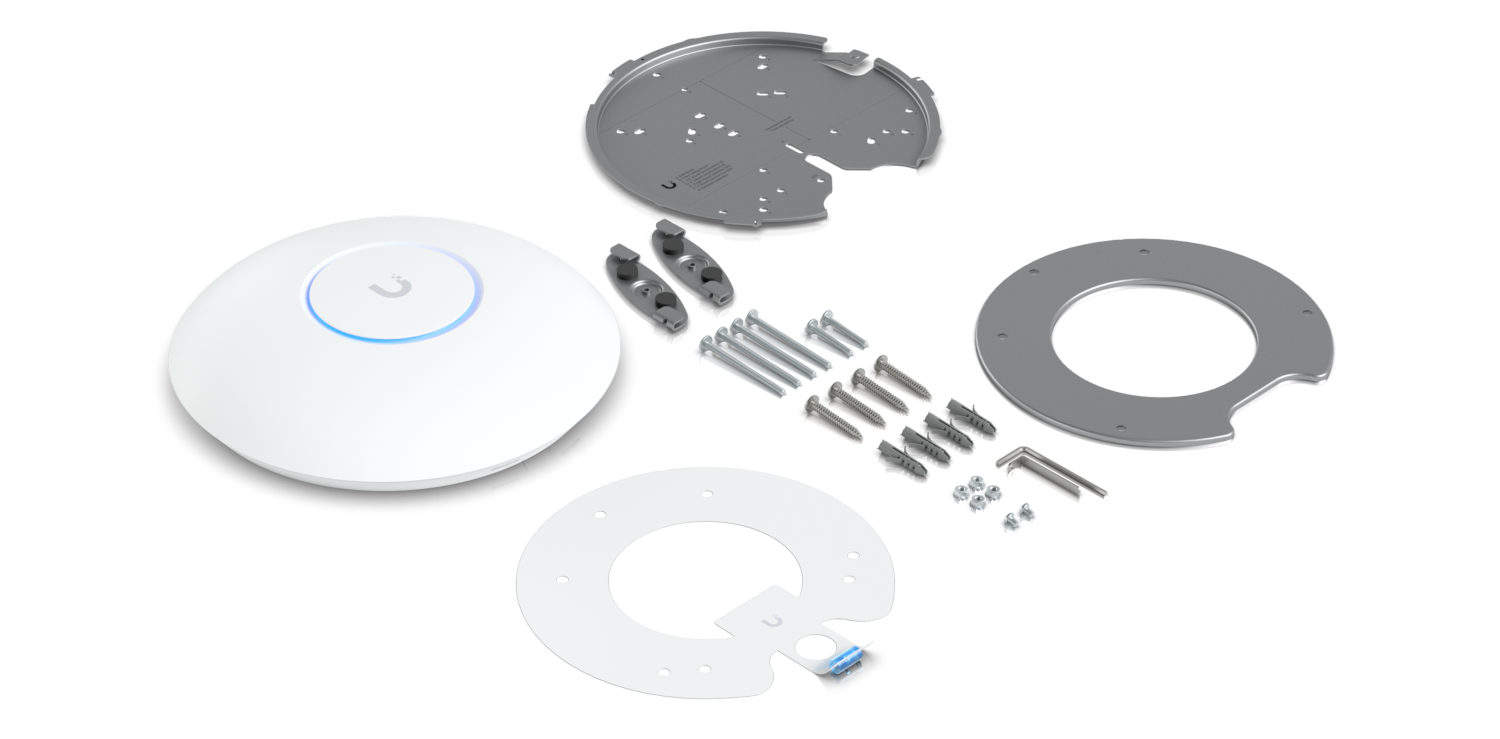

| Mounting | Ceiling, Wall (Pro Mount Included) |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 25W |
| LEDs | System (White/Blue) |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 8 total |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| MIMO Configuration | 6 GHz: 2 x 2 (DL/UL MU-MIMO); 5 GHz: 4 x 4 (DL/UL MU-MIMO); 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320); 5 GHz: 8.6 Gbps (BW240); 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: 5.9 dBi; 5 GHz: 6 dBi; 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 23 dBm; 5 GHz: 29 dBm; 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08959-24-08356; NDAA Compliant |
| Software Requirements | UniFi Network Version 8.2.93 and later |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: Does the U7-Pro-Max support 6 GHz WiFi? Yes, it features tri-band WiFi 7 operation across 2.4 GHz, 5 GHz, and 6 GHz bands, subject to local regulatory approval.
- Q: What power source does it require? It uses PoE+ (44–57V DC) via its 2.5 GbE RJ45 port; compatible with UniFi PoE switches or injectors.
- Q: How many devices can it support? Up to 500+ simultaneous clients, ideal for high-density large-scale environments.
- Q: Is real-time spectral analysis available? Yes, with UniFi Network 8.2.93+, it provides dedicated spectral scanning for interference detection and optimal channel selection.
- Q: What UniFi software version is required? UniFi Network application version 8.2.93 or later for full functionality including spectral analysis.
| Weight | 1.32 kg |
|---|---|
| Dimensions | 248 × 248 × 96 mm |
| Product Create Date | 27/05/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | U7-Pro-Max |
| Opt Accessory | NHU-UACC-U7-COVER, NHU-USW-PRO-HD-24-POE, NHU-UICARE-U7-PRO-MAX-D |
