Ubiquiti U7 In-Wall, Wall-mounted WiFi 7 AP,4 Spatial Streams,Integrated 2.5 GbE PoE Switch, For Hospitality,115 m² Coverage, PoE/PoE+ Power
$326.06 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:189 WA:0
189 in stock

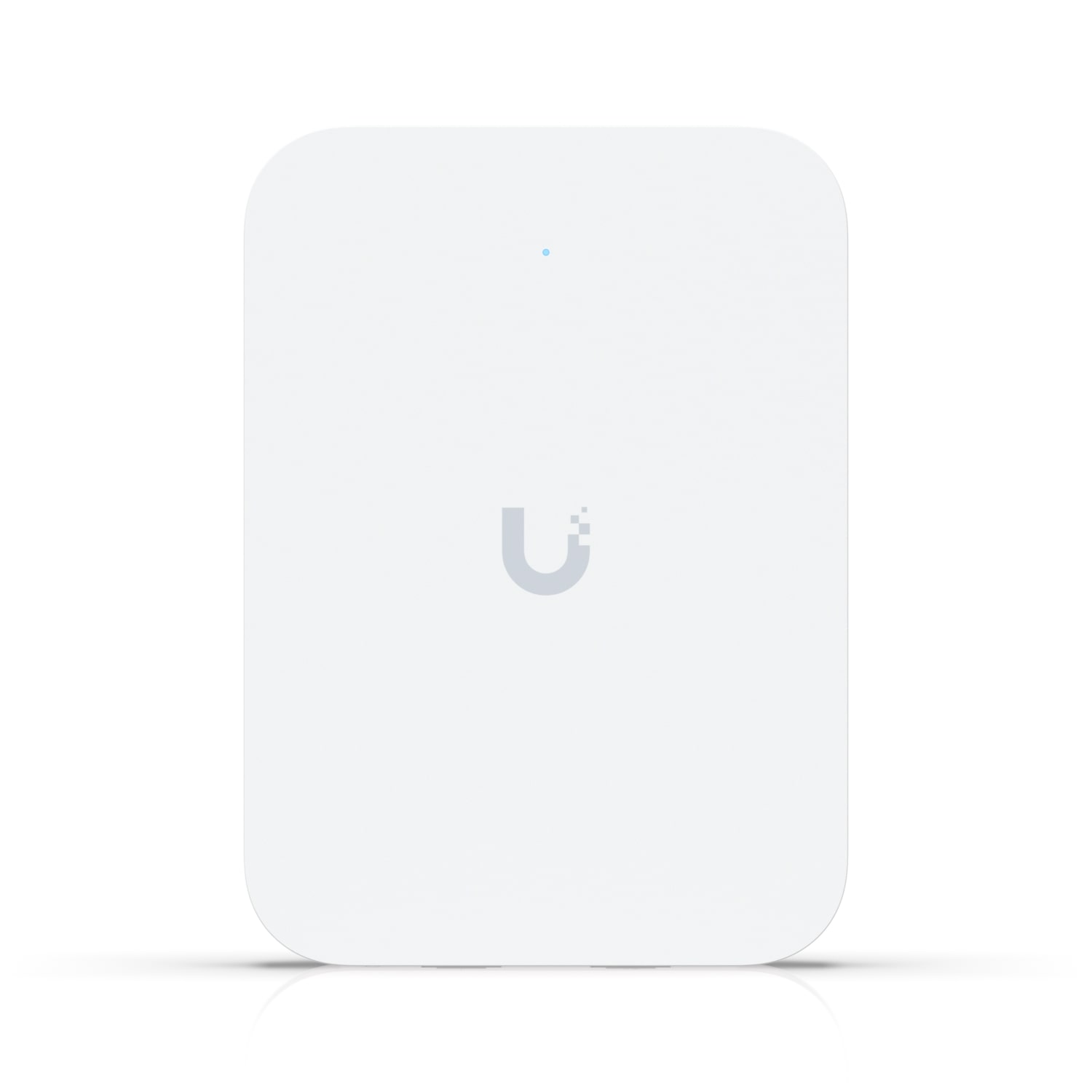

Ubiquiti U7 In-Wall
SKU: U7-IW
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Features:
•WiFi 7
•4 spatial streams
•115 m² (1,250 ft²) coverage
•200+ connected devices
•Powered using PoE/PoE+*
•2.5 GbE uplink
•*PoE+ required for single-port PoE output.
Why Choose This?
The Ubiquiti U7 In-Wall is a wall-mounted WiFi 7 access point designed specifically for hospitality environments, delivering blazing-fast wireless connectivity with 4 spatial streams and coverage up to 115 m² (1,250 ft²) per unit. Its integrated 2.5 GbE PoE switch with three RJ45 ports simplifies cabling and powers additional devices, making it ideal for hotels, apartments, and offices requiring seamless room-level deployment. Enjoy future-proof WiFi 7 performance supporting 200+ clients with advanced features like guest isolation and captive portals for effortless management.
Key Features
- WiFi 7 with 4 spatial streams – Delivers up to 4.3 Gbps on 5 GHz for high-speed, low-latency connections in dense environments.
- 115 m² (1,250 ft²) coverage – Provides reliable room-level WiFi tailored for hospitality and private spaces.

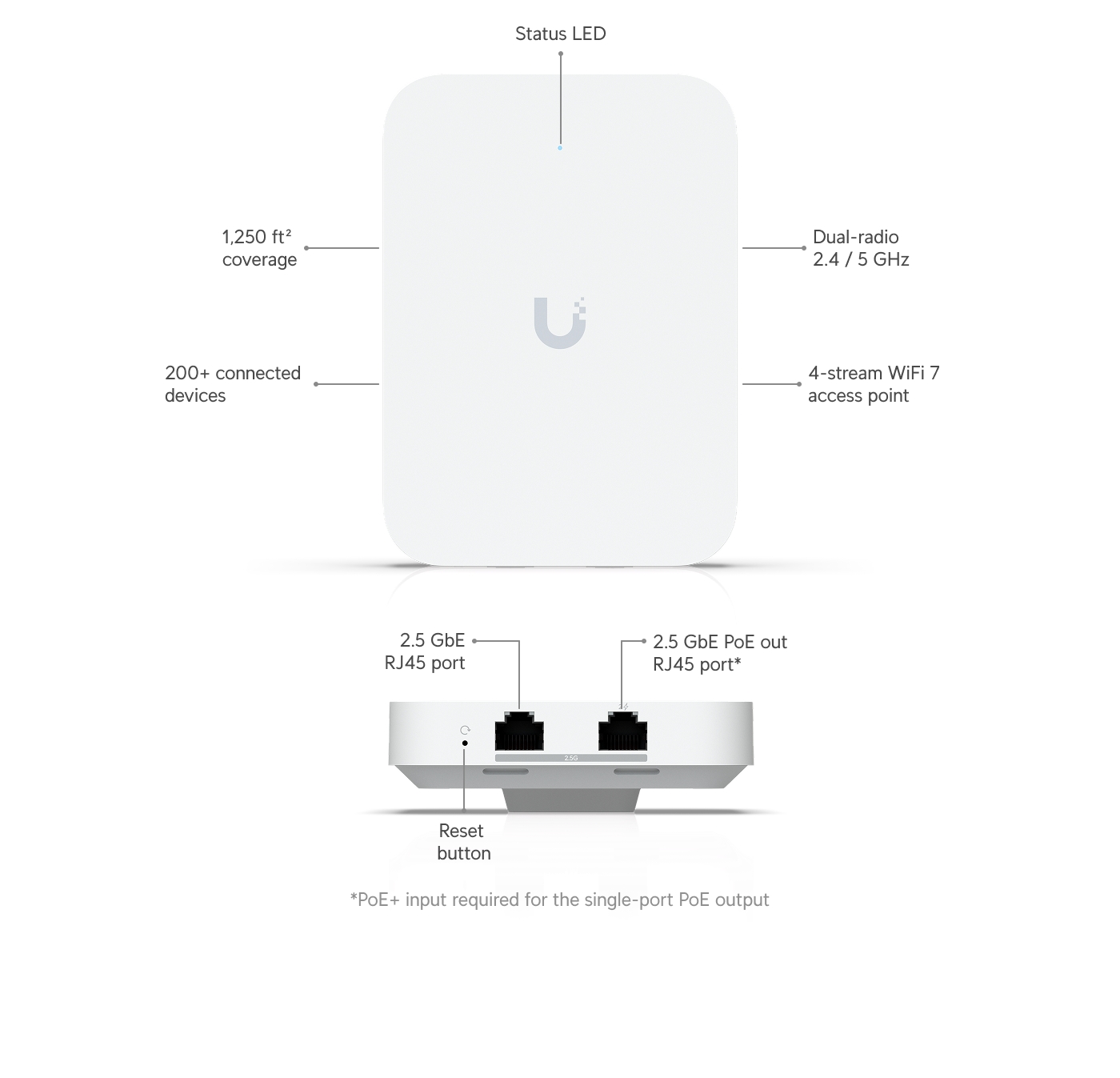

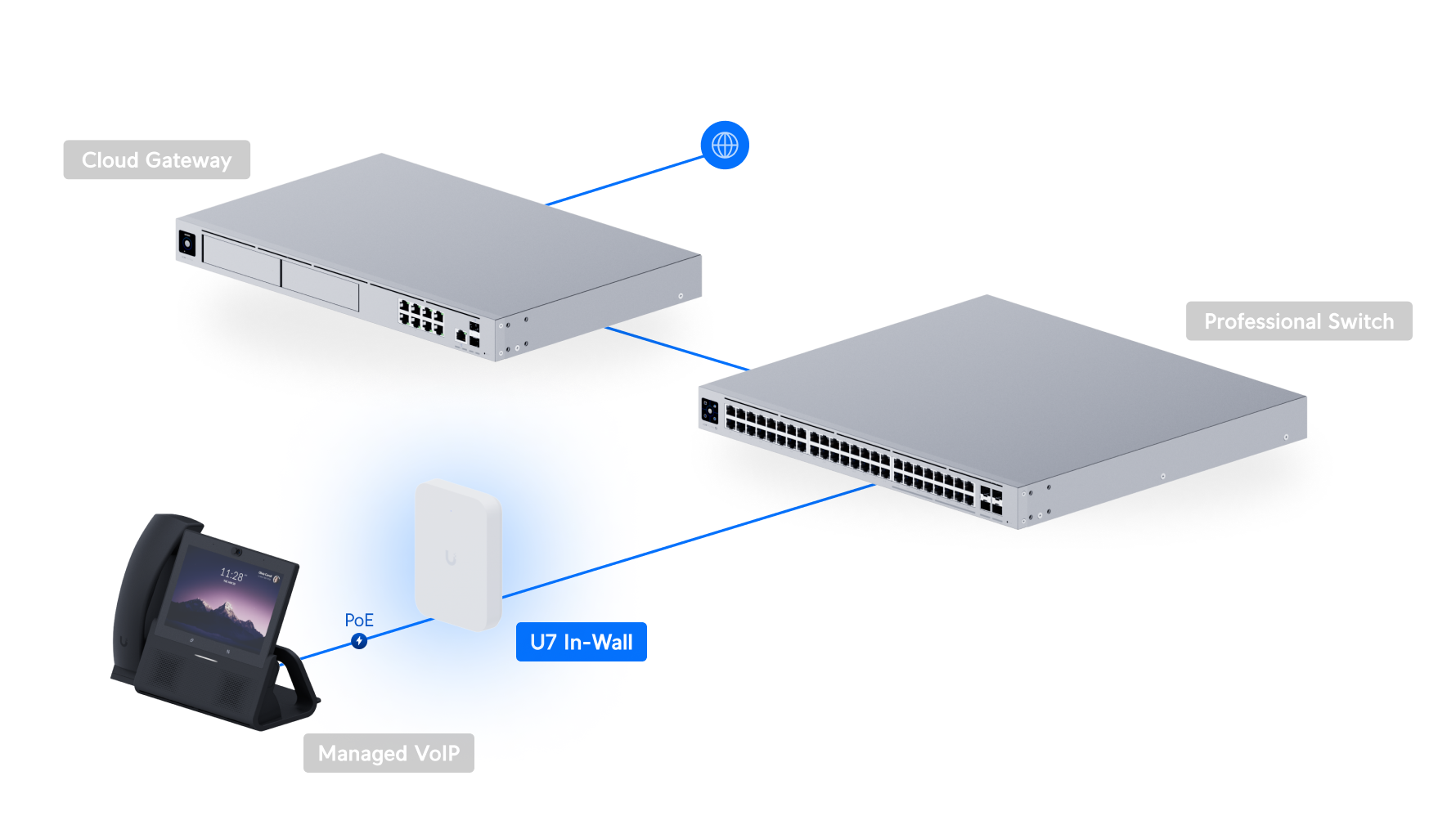

- Integrated 2.5 GbE PoE switch – Features 3x 2.5 GbE RJ45 ports with PoE+ input and PoE output to reduce cabling and power extra devices.
- Advanced UniFi software features – Includes band steering, fast roaming (802.11r/k/v), PPSK, and captive portals for secure guest access.

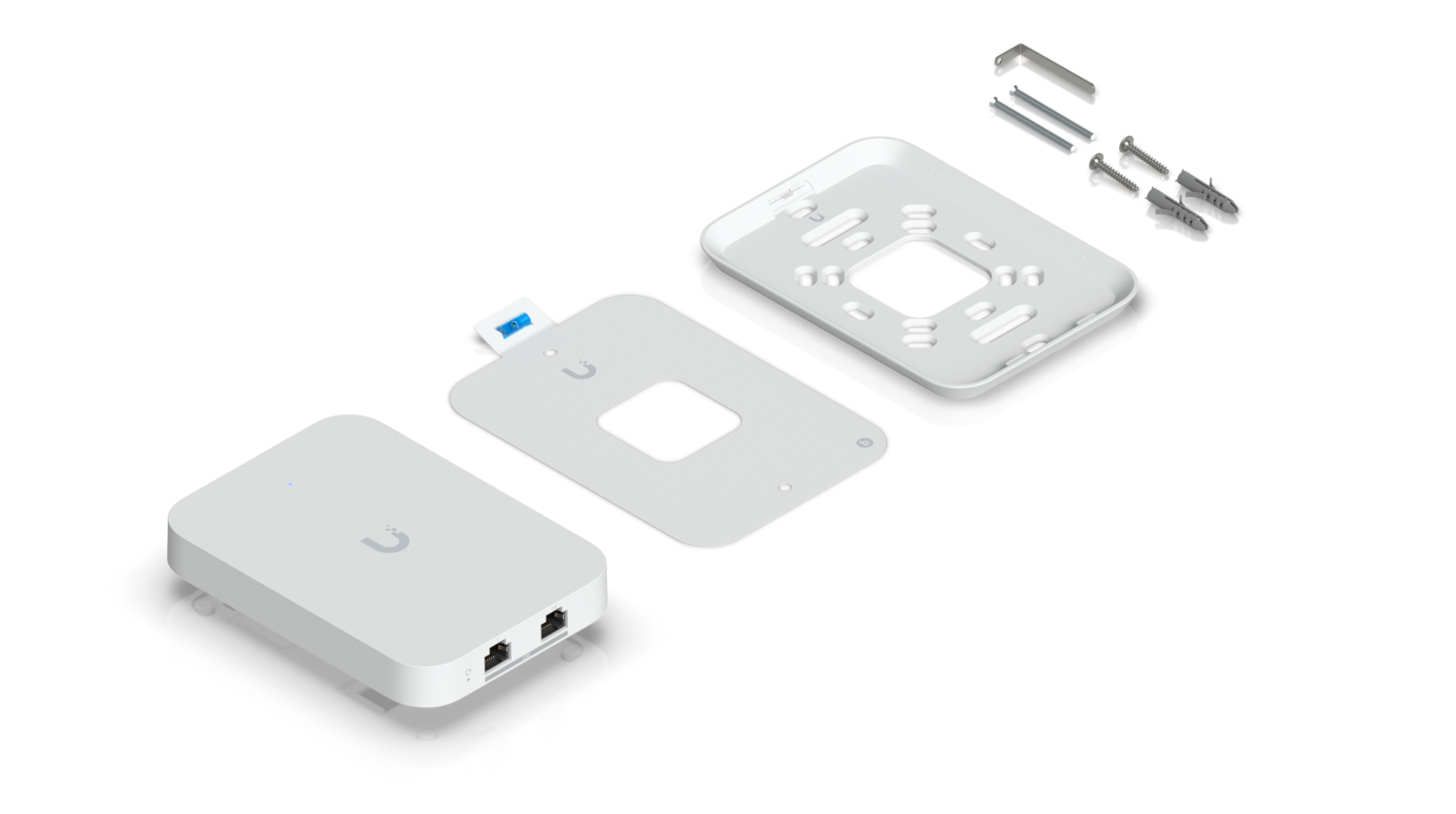

- Compact wall-mount design – Sleek enclosure with metal mount for easy, inconspicuous installation in walls.
Full Specifications
| Category | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| MIMO Configuration | 5 GHz: 2 x 2 (DL/UL MU-MIMO); 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240); 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 8 dBi; 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 24 dBm; 2.4 GHz: 23 dBm |
| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Built-in Switch | (1) PoE+ input, (1) PoE output |
| Uplink | 2.5 GbE |
| Power Method | PoE / PoE+ (PoE+ required for PoE output) |
| Max. Power Consumption | 13W (excluding PoE output) |
| Supported Voltage Range | 42.5–57V DC |

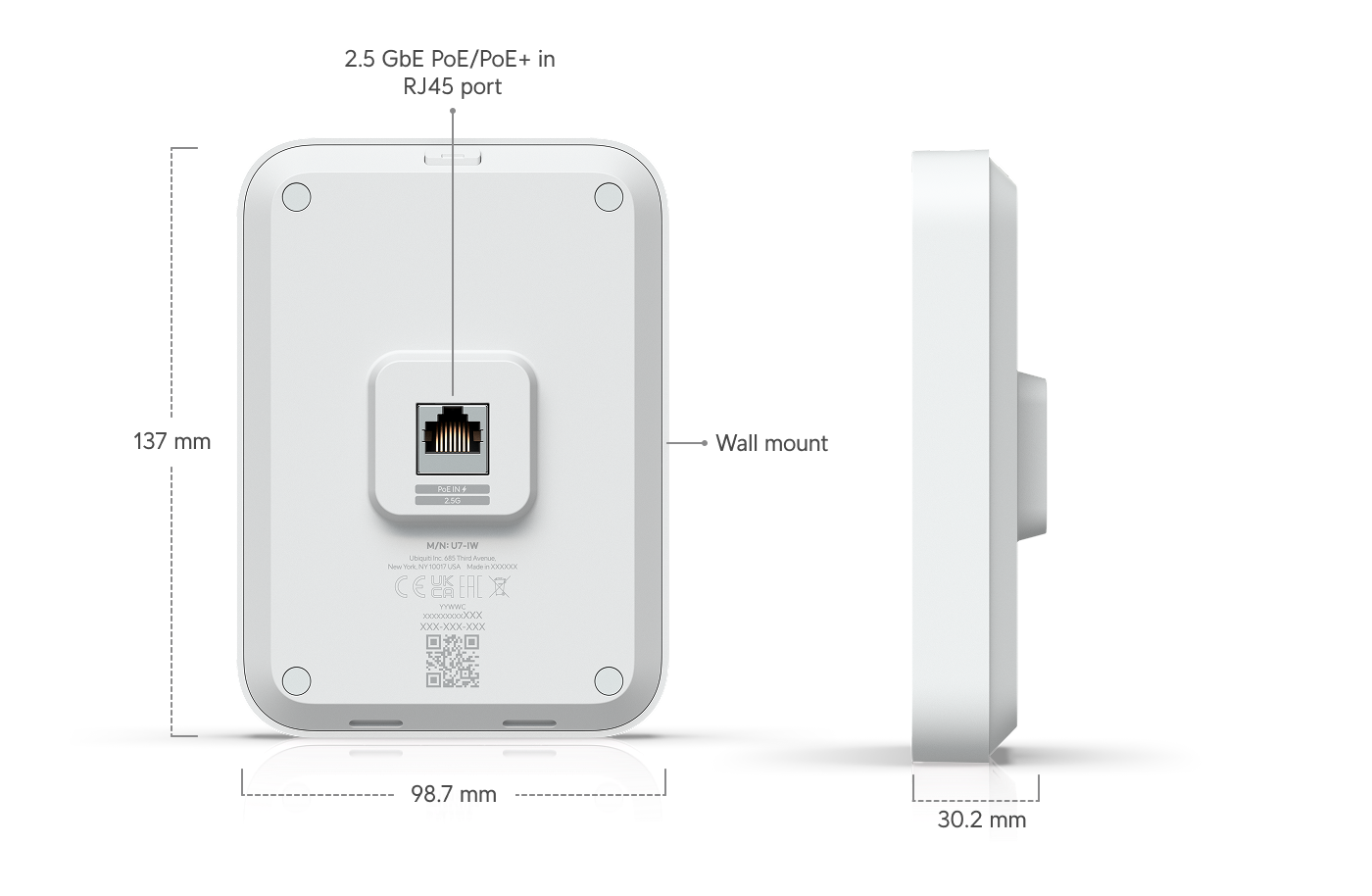

| Dimensions | 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″) |
| Weight | 400 g (14.1 oz) |
| Mounting | Wall (metal wall mount included) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What power is required for the U7-IW? PoE or PoE+; PoE+ is required on the input port to enable PoE output on the secondary port.
- Q: Is PoE output supported? Yes, one PoE output port with up to 12W, but requires PoE+ input; max AP consumption is 13W excluding PoE output.
- Q: What is the coverage area? Up to 115 m² (1,250 ft²), optimized for room-level deployment in hospitality settings.
- Q: Does it support guest networks and hotspots? Yes, features guest isolation, captive portal with voucher/RADIUS support, and Passpoint (Hotspot 2.0).
- Q: What UniFi Network version is required? UniFi Network version 9.0.114 or later for full compatibility.
| Weight | 0.58 kg |
|---|---|
| Dimensions | 195 × 150 × 65 mm |
| Product Create Date | 04/03/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | U7-IW |
| Opt Accessory | NHU-USW-PRO-HD-24-POE, NHU-UICARE-U7-IW-D |
