Ubiquiti Pro XG 10 PoE, 1U,Professional-grade 10-port, Layer 3 Etherlighting PoE+++ Switch,(10) 10 GbE and (2) 10G SFP+ Ports,

Ubiquiti Pro XG 10 PoE

SKU: USW-Pro-XG-10-PoE (400W)

Tech Specs: Click Here
Installation Guide: Click Here

Description:

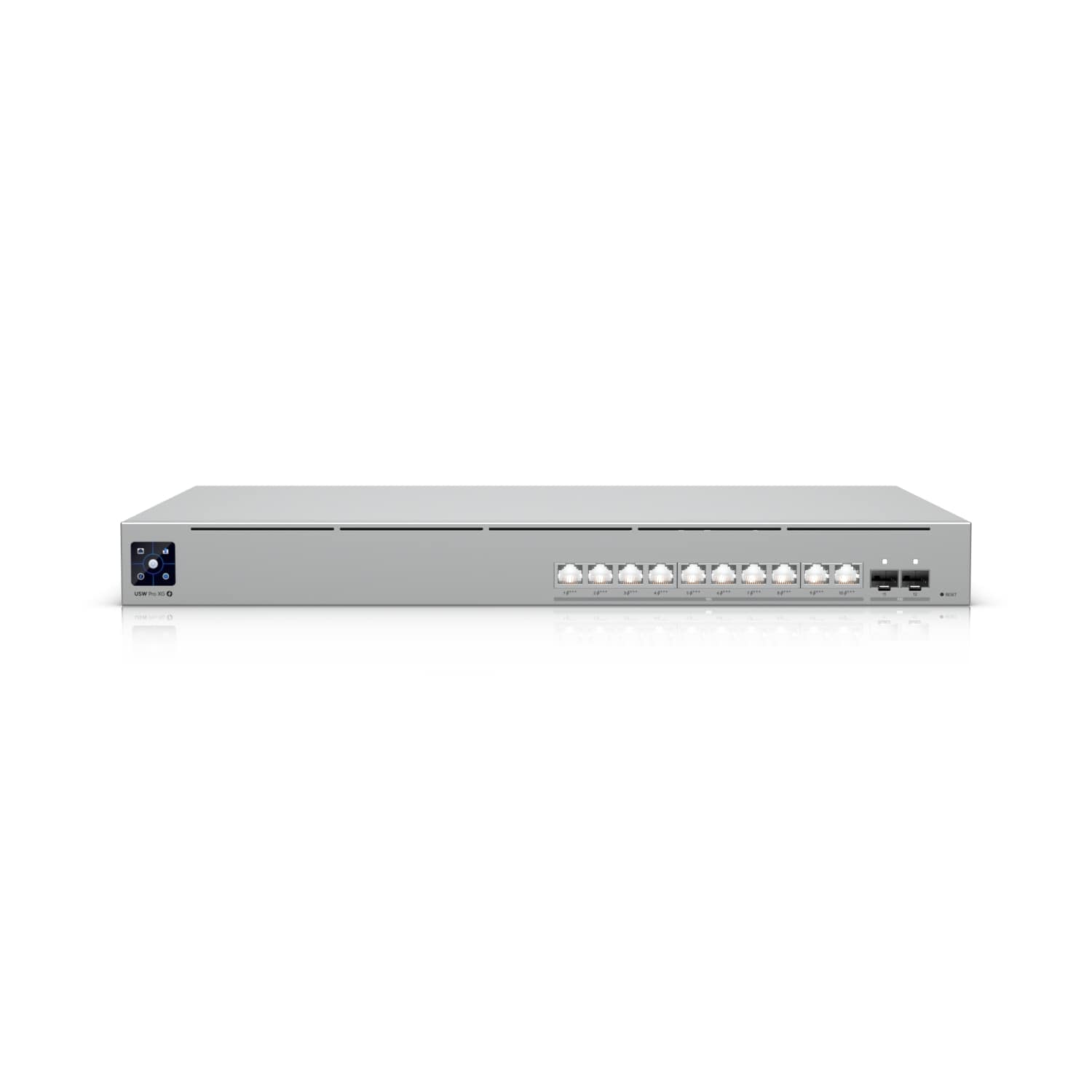

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Features:

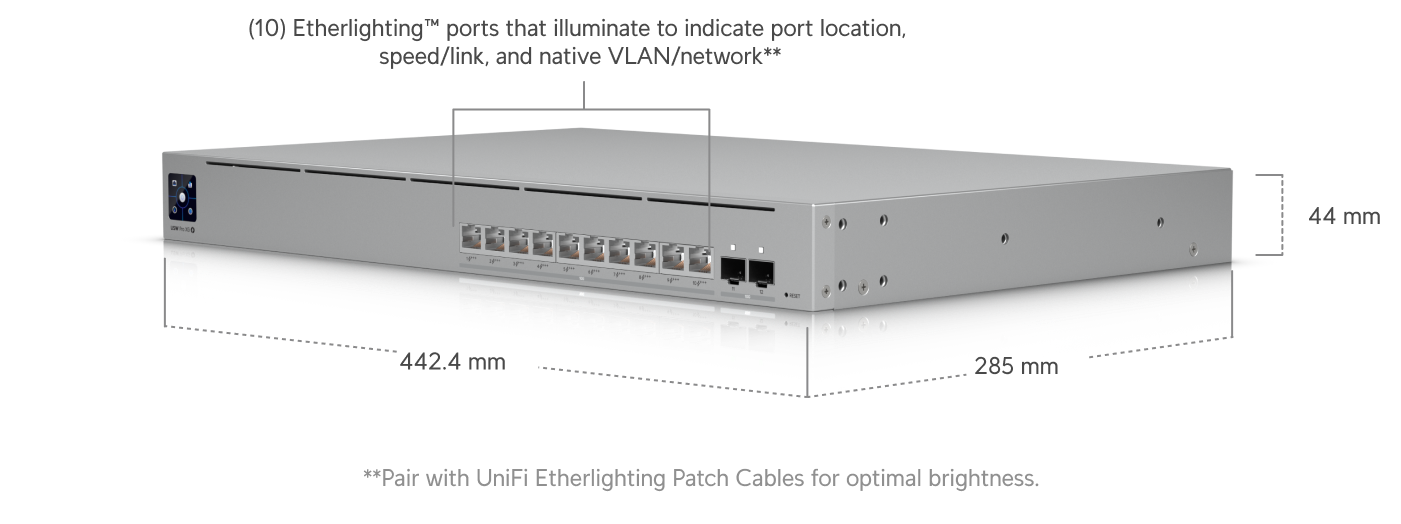

•Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
•(10) 10 GbE PoE+++ ports
•(2) 10G SFP+ ports
•DC power backup ready**
•400W total PoE availability
•*Pair with UniFi Enterprise Patch Cable for optimal brightness.
•**Requires UniFi RPS.

Why Choose This?

The Ubiquiti Pro XG 10 PoE (USW-Pro-XG-10-PoE) is a professional-grade 1U Layer 3 switch designed for high-performance networks demanding 10 GbE speeds and robust PoE+++ power delivery. It delivers 240 Gbps switching capacity, 400W total PoE budget across 10 multi-gig ports, and innovative Etherlighting™ for intuitive port identification and management. Ideal for enterprise access layers, AV setups, and power-hungry UniFi devices, it ensures non-blocking throughput and advanced Layer 3 routing in a compact rack-mount form.

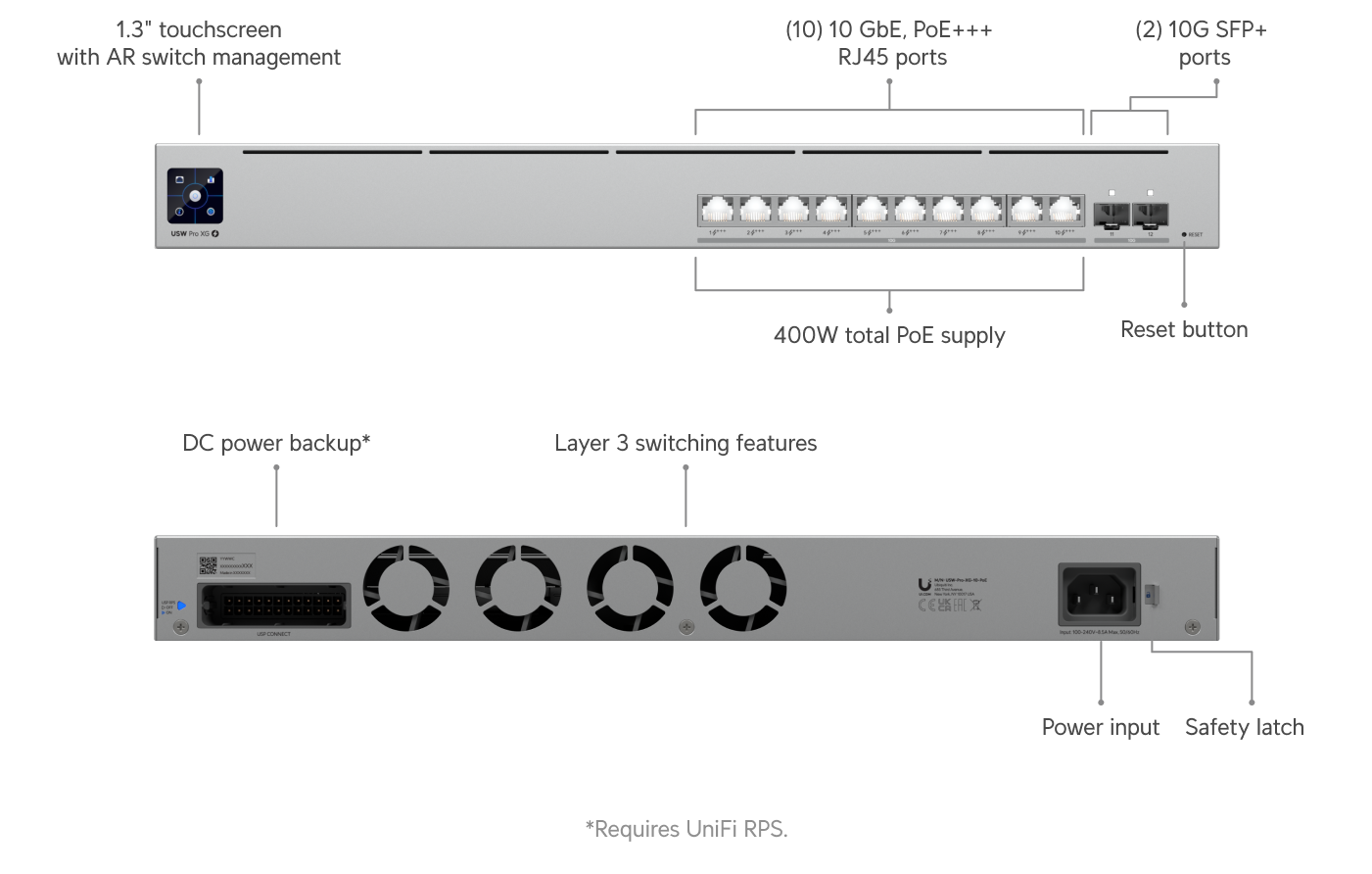

Key Features

• 10 x 10 GbE RJ45 PoE+++ ports – Powers high-demand devices up to 90W per port with multi-gig speeds (10G/5G/2.5G/1G/100M) for future-proof connectivity.
• 2 x 10G SFP+ ports – Provides flexible high-speed uplinks at 10G/1G for aggregation or fiber connections.
• Etherlighting™ technology – Illuminates ports to indicate location, speed, link status, and VLAN for quick troubleshooting and deployment.
• Layer 3 switching with 400W PoE budget – Enables inter-VLAN routing, DHCP services, and efficient power for up to 10 PoE+++ devices simultaneously.
• 1.3″ touchscreen LCM and UniFi Network integration – Offers local AR management and seamless cloud-based monitoring starting from version 9.1.120.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What UniFi Network version is required? UniFi Network Version 9.1.120 and later.
• Q: Does it support PoE+++ on all RJ45 ports? Yes, all 10 x 10 GbE RJ45 ports support PoE+++ up to 90W per port with 400W total budget.
• Q: What Layer 3 features are included? DHCP Server/Relay, Inter-VLAN Routing, and Static Routing for local networks.
• Q: Is power redundancy available? Yes, via USP RPS DC input for DC power backup.
• Q: What speeds do the RJ45 ports support? Backward compatible multi-gig: 10G/5G/2.5G/1G/100M.
