Ubiquiti Gateway Max, Multi-WAN UniFi Gateway, 4x 2.5G LAN, 1x 2.5G WAN, 1.5 Gbps Routing with IDS/IPS, Requires Cloud Key/Network Server
$367.71 inc GST
Manufacturer: Ubiquiti
Availability: BRS:66 ADL:15 SYD:26 MEL:28 WA:6
141 in stock

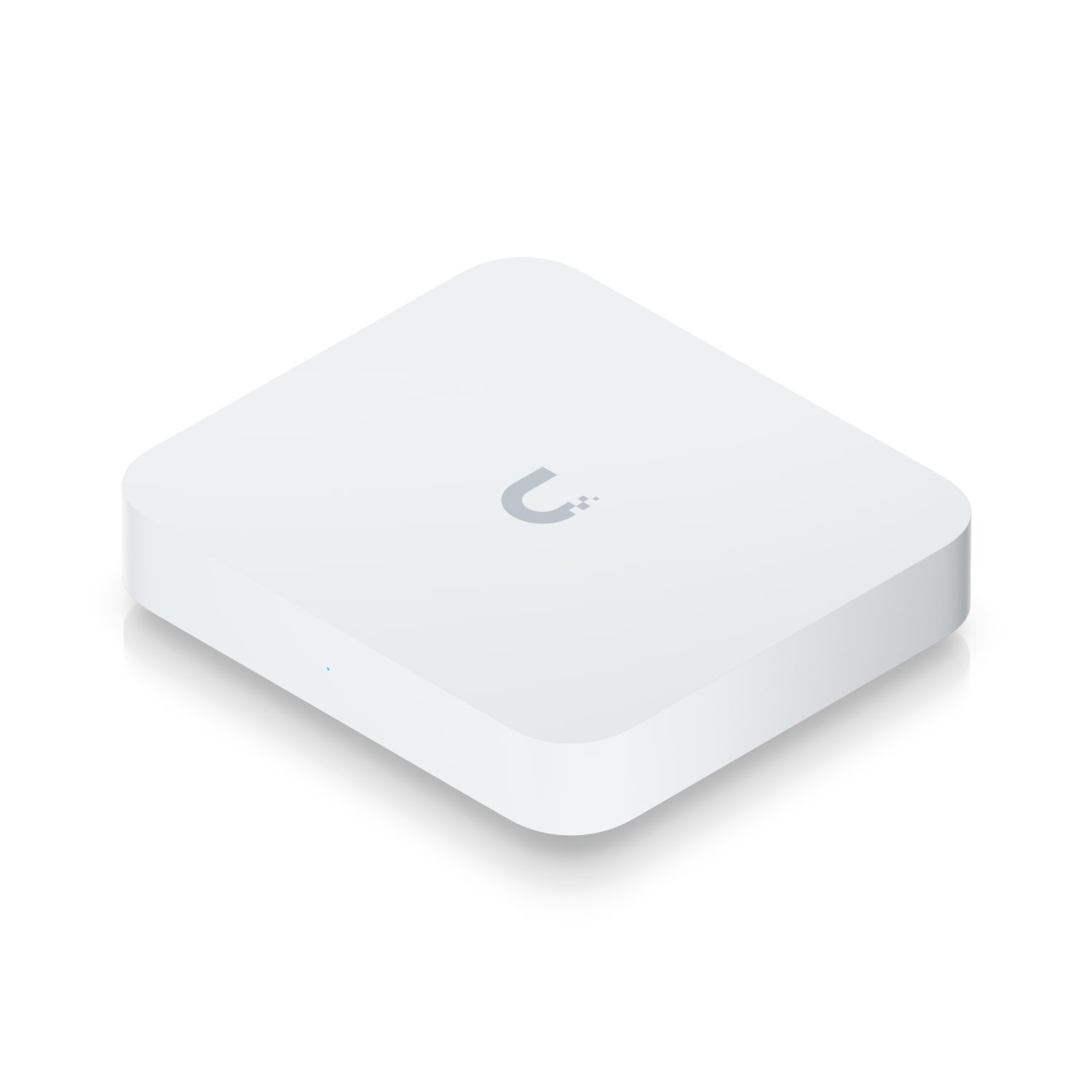

Ubiquiti Gateway Max
SKU: UXG-Max
Description: Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
• Up to 1.5 Gbps routing with IDS/IPS

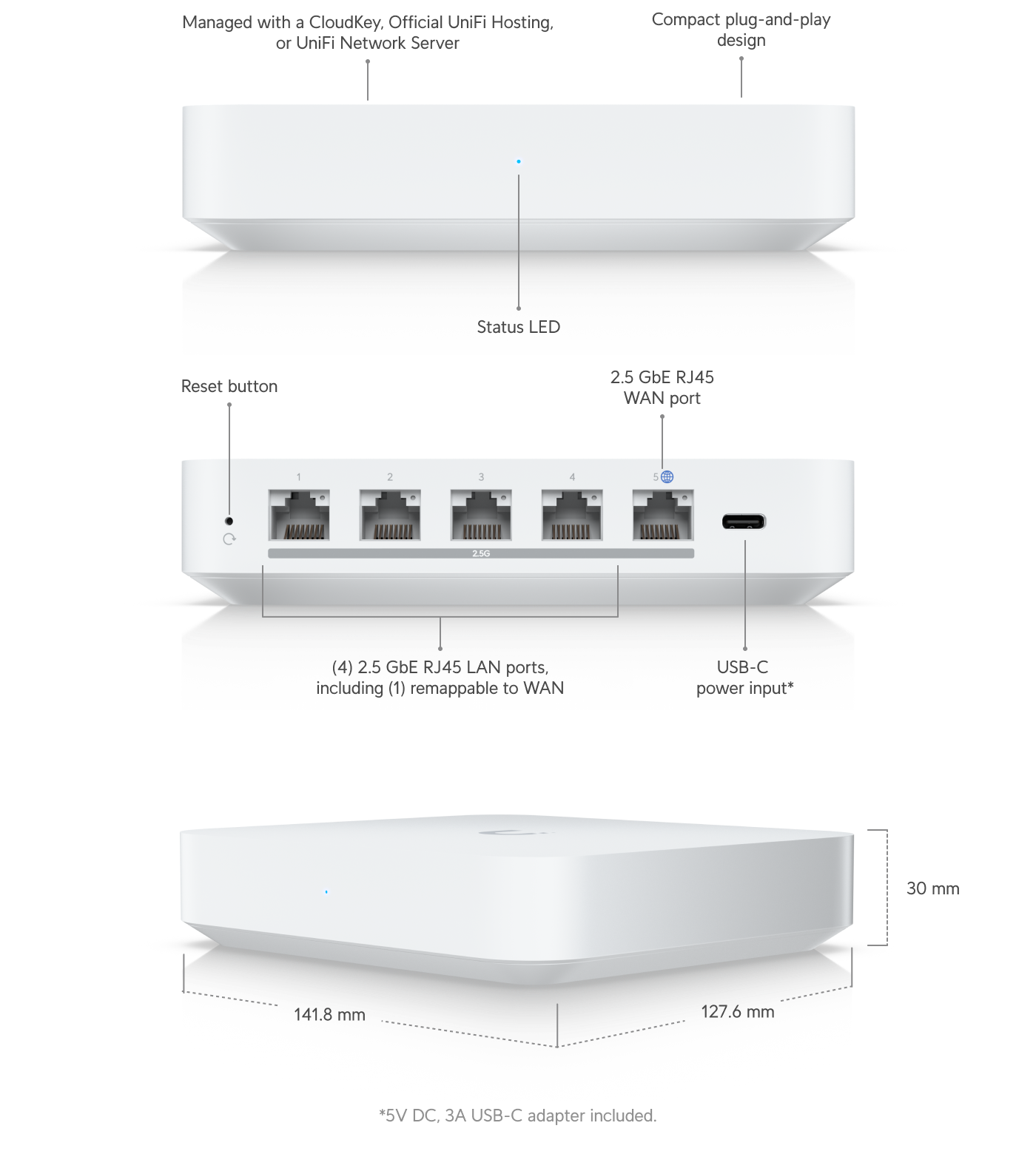

• (1) 2.5 GbE WAN port
• (4) 2.5 GbE LAN ports, including (1) remappable to WAN

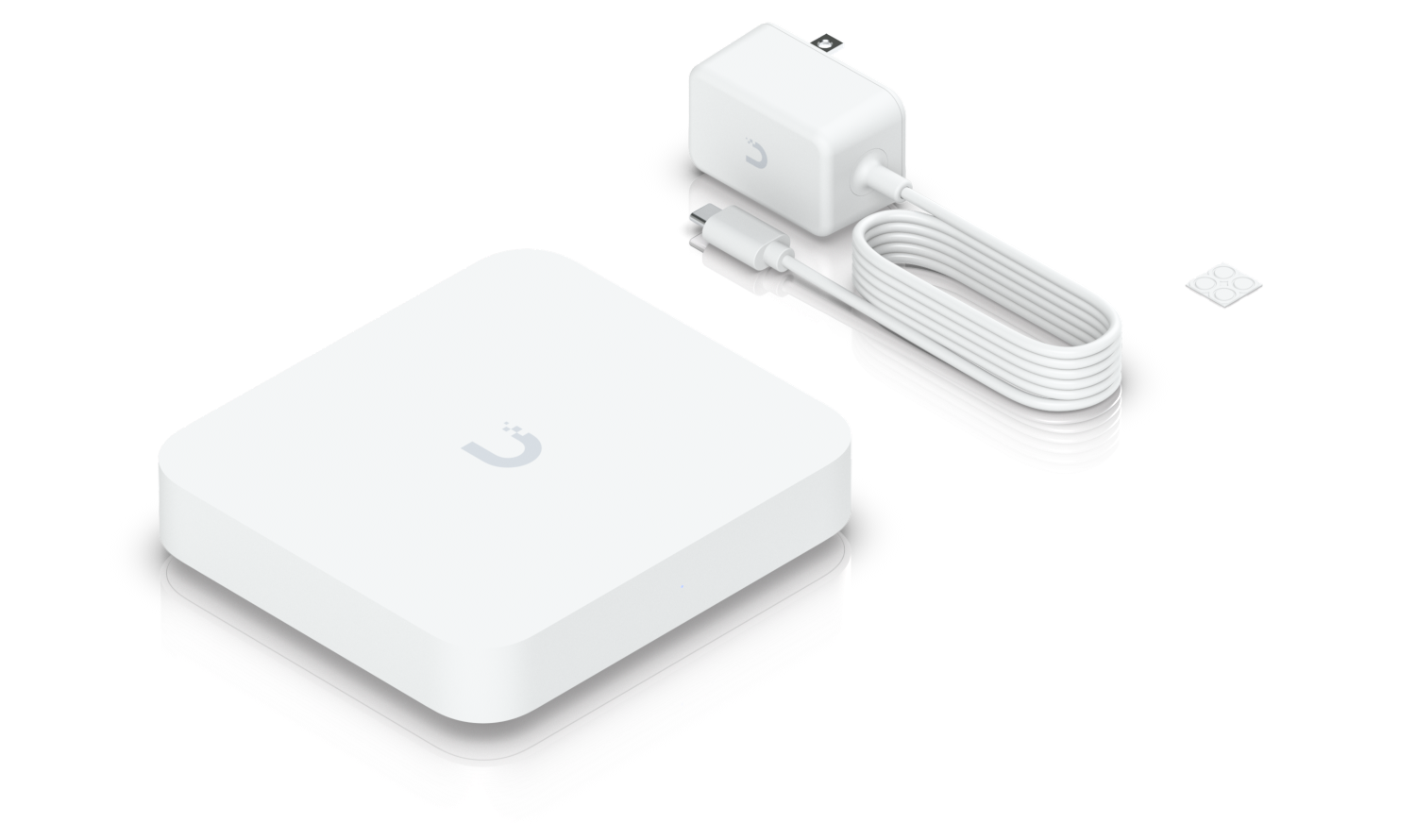

• USB-C powered (adapter included)
• Managed with UniFi Network 8.1.113 and laterc
Why Choose This?
The Ubiquiti Gateway Max (UXG-Max) is a compact, multi-WAN UniFi gateway delivering high-performance 2.5G networking for small-to-medium sites, with up to 2.3 Gbps IDS/IPS throughput for secure, reliable connectivity.
Featuring full 2.5 GbE support across all ports—including 1 dedicated WAN and 4 LAN ports (one remappable to WAN)—it offers flexible load balancing, advanced security, and seamless integration with UniFi ecosystems, all powered efficiently via USB-C.
Key Features
- Multi-WAN Load Balancing – Ensures reliable connectivity with failover and policy-based routing across up to 4 WAN ports.
- 2.3 Gbps IDS/IPS Throughput – Provides robust intrusion prevention and threat detection without compromising speed.
- Full 2.5 GbE Ports (5 Total) – Supports high-speed LAN/WAN connections for modern multi-gig networks.
- Advanced Security Suite – Includes stateful firewall, DPI, content filtering, ad blocking, and 55,000+ IDS/IPS signatures.
- License-Free SD-WAN & VPN – Enables WireGuard, OpenVPN, IPsec, and Teleport for secure remote access and site-to-site connectivity.
Full Specifications
| Category | Details |
|---|---|
| Form Factor | Compact desktop |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″) |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 2 GB DDR4 |
| Networking Interfaces | (1) 2.5 GbE RJ45 WAN, (4) 2.5 GbE RJ45 LAN (1 remappable to WAN) |
| Max WAN Ports | 4 |
| IDS/IPS Throughput | 2.3 Gbps |
| MAC Address Table Size | 2,000 |
| Power Method | USB-C (5V DC / 3A) |
| Max Power Consumption | 9.6W |
| Power Supply | USB-C adapter included (100-240V AC) |
| LEDs | Ethernet (link/activity), System |
| Buttons | (1) Factory reset |
| Management | Ethernet, Bluetooth; Requires UniFi Network 8.1.113+ |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: Does the UXG-Max require a separate controller? Yes, it is an independent gateway managed by a Cloud Key, UniFi OS Server, Official UniFi Hosting, or self-hosted UniFi Network application (version 8.1.113 or later).
- Q: Can LAN ports be used as WAN? Yes, one of the four 2.5 GbE LAN ports can be remapped as WAN, supporting up to 4 WAN connections with load balancing and failover.
- Q: What is the IDS/IPS performance? Up to 2.3 Gbps throughput with IDS/IPS enabled, including signature-based threat detection and advanced filtering.
- Q: How is it powered? Via included USB-C adapter (5V DC / 3A), with max consumption of 9.6W; supports 100-240V AC input.
- Q: What VPN options are supported? License-free WireGuard, OpenVPN, L2TP server; OpenVPN/WireGuard client; IPsec/OpenVPN site-to-site; Teleport zero-config VPN.
| Weight | 0.98 kg |
|---|---|
| Dimensions | 214 × 162 × 78 mm |
| Product Create Date | 04/04/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UXG-Max |
| Opt Accessory | NHU-UMR-INDUSTRIAL, NHU-UICARE-UXG-MAX-D |
