Ubiquiti Device Bridge Pro Sector,5 GHz Point-to-multipoint Access Point,Wirelessly Bridges 40+ Device Bridge Pro clients at 5+ km Distances
$437.92 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:3 SYD:0 MEL:2 WA:9
15 in stock

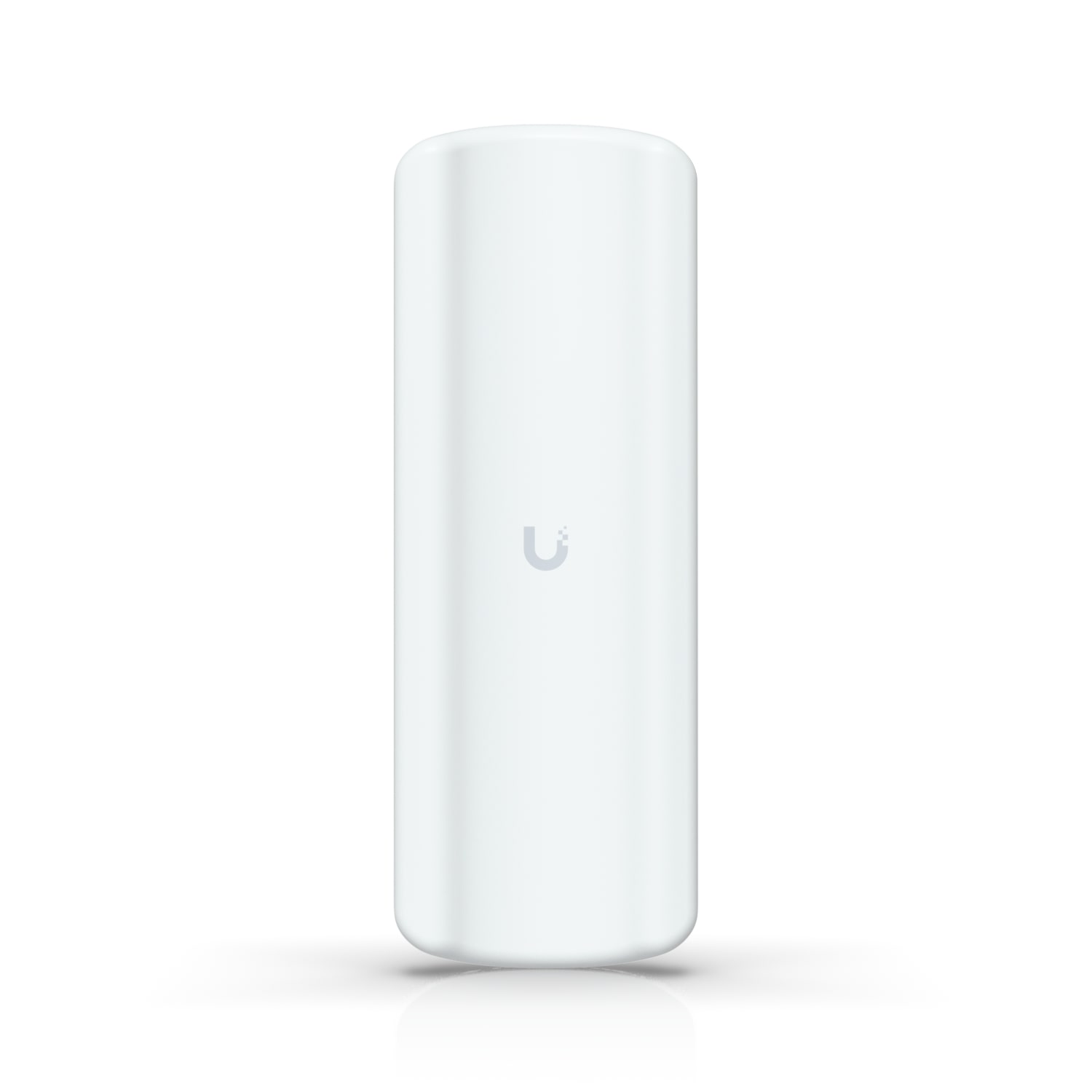

Ubiquiti Device Bridge Pro Sector
SKU: UDB-Pro-Sector
Tech Specs: Click Here
Installation Guide: Click Here
Description:
5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
Features:
â˘Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients
â˘90° sector coverage
â˘Powered using PoE
â˘Pole mounting
â˘Weatherproof (outdoor exposed)
Why Choose This?

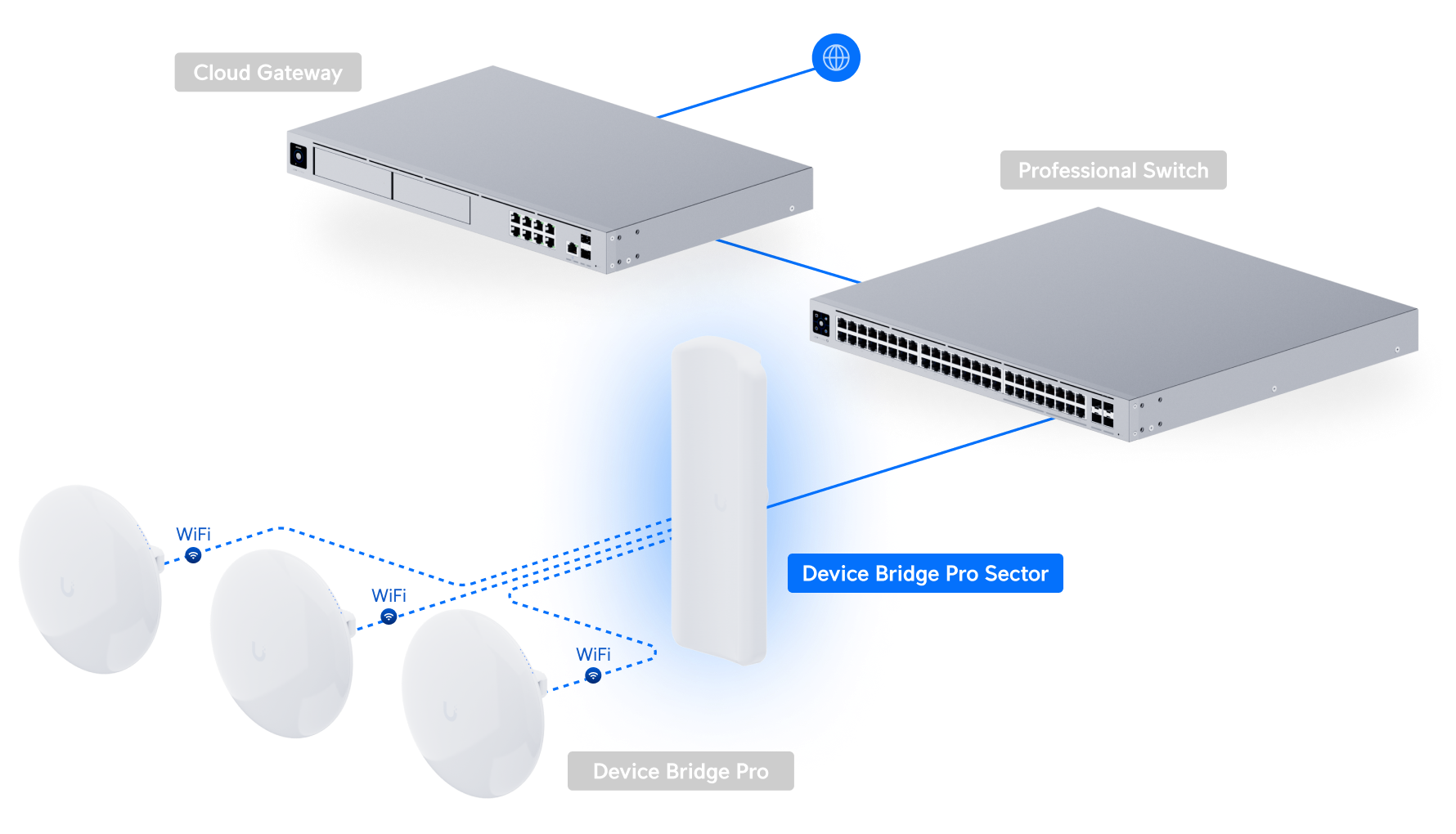

The Ubiquiti Device Bridge Pro Sector is a high-performance 5 GHz point-to-multipoint access point designed to wirelessly bridge 50+ Device Bridge Pro clients over distances exceeding 5 km, eliminating the need for costly fiber trenching in campuses, warehouses, and multi-site deployments. Offering up to 400 Mbps throughput with 17 dBi antenna gain and IPX6 weatherproofing, it delivers reliable, long-range connectivity in harsh outdoor environments. NDAA compliant and powered via standard PoE, it integrates seamlessly into UniFi networks for scalable, future-proof wireless bridging.
Key Features
- 5 GHz PtMP Access â Bridges 50+ UDB-Pro clients at 5+ km for extensive wireless coverage without cabling.
- WiFi 5 2×2 MIMO â Delivers up to 400 Mbps data rates with 17 dBi gain for high-speed, stable links.
- IPX6 Weatherproof â Ensures durable outdoor performance in extreme temperatures from -40 to 60°C.
- PoE Powered â Simplifies installation with 42.5â57V DC support and low 6W consumption.
- UniFi Managed â Ethernet/WiFi management with WPA2 AES security for easy deployment and monitoring.
Full Specifications
| Category | Details |
|---|---|
| Model | UDB-Pro-Sector |

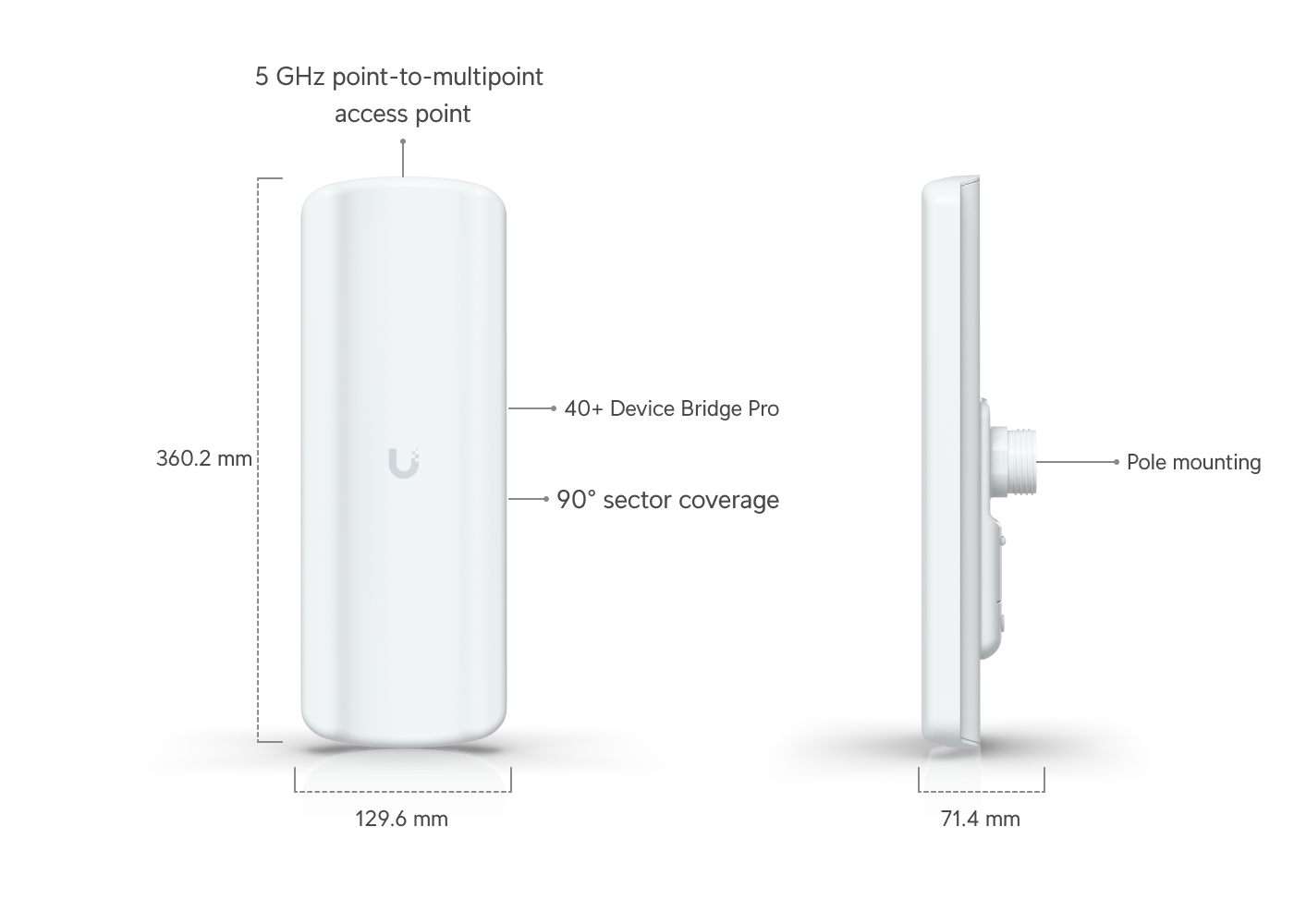

| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8â) |
| Weight | Device: 782 g (1.7 lb); With mount: 835 g (1.8 lb) |
| WiFi Standard | WiFi 5 (802.11ac) |
| Spatial Streams | 2 |
| MIMO | 5 GHz: 2 x 2 |
| Max. Data Rate | 5 GHz: 400 Mbps (BW40) |
| Antenna Gain | 5 GHz: 17 dBi (Internal) |
| Max. TX Power | 5 GHz: 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Channel Bandwidth | 20/40 MHz |
| Coverage Area | 5 km (3.1 mi) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5â57V DC |
| Weatherproofing | IPX6 |
| Enclosure Material | UV-stabilized polycarbonate |

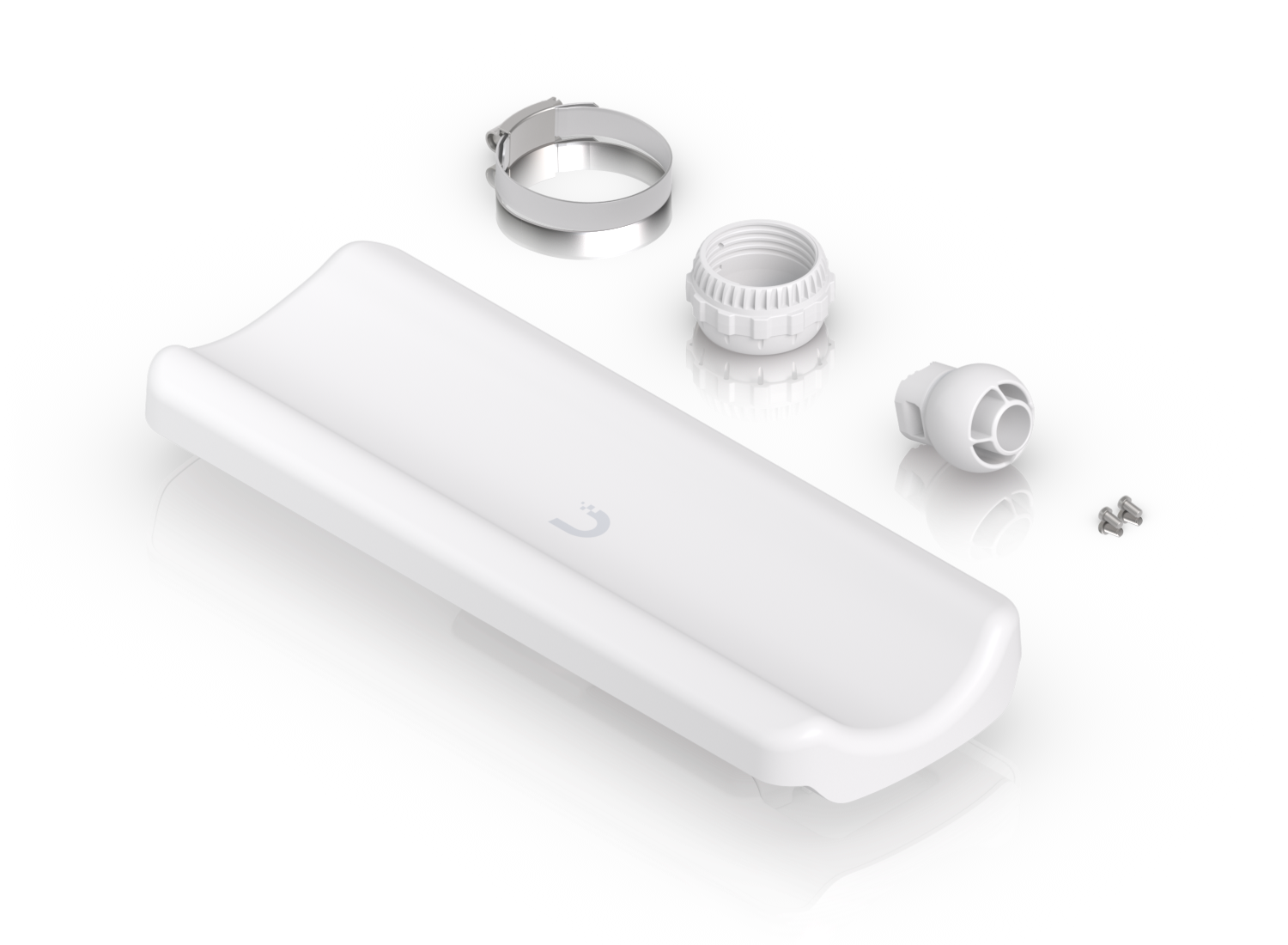

| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9â2.4″ (24â60 mm) |
| Wind Loading | 128.2N at 200 km/h |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Wireless Security | WPA2 AES |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the maximum number of clients it supports? Supports bridging 50+ Device Bridge Pro (UDB-Pro) clients in point-to-multipoint setups.
- Q: What is the maximum range? Provides reliable wireless bridging up to 5+ km distances.
- Q: Is it suitable for outdoor use? Yes, IPX6 weatherproof rating and operates from -40 to 60°C with high wind loading tolerance.
- Q: How is it powered? Powered via standard PoE (42.5â57V DC) with max consumption of 6W; no separate power supply needed.
- Q: What management options are available? Managed via Ethernet or WiFi through UniFi Network application; includes factory reset button and status LEDs.
| Weight | 1.26 kg |
|---|---|
| Dimensions | 412 × 170 × 100 mm |
| Product Create Date | 27/03/2025 |
| Web Link | Visit Manufacturer Page â |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UDB-Pro-Sector |
| Opt Accessory | NHU-UICARE-UDB-PRO-SCTR-D |
