Ubiquiti airMAX NanoBeam 5AC, Compact, UISP-ready, 5 GHz, 10+ km link range, 450+ Mbps throughput, Easy Mountingr
$191.59 inc GST
Manufacturer: Ubiquiti
Availability: BRS:276 ADL:91 SYD:52 MEL:582 WA:452
1453 in stock

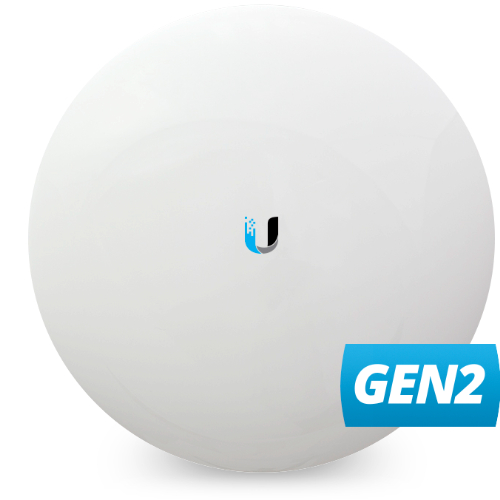

Ubiquiti airMAX NanoBeam 5AC
SKU: NBE-5AC-Gen2
Description: Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
Tech Specs: Click Here
Features:
•5 GHz, 10+ km link range
•450+ Mbps throughput
•Easy mounting
•Dedicated spectral analysis radio
•Dedicated WiFi management radio
Why Choose This?
The Ubiquiti airMAX NanoBeam 5AC (NBE-5AC-GEN2) is a compact, high-performance 5 GHz WiFi bridge designed for long-range point-to-point and point-to-multipoint links up to 10+ km with 450+ Mbps real TCP/IP throughput. Its uniform beamwidth technology maximizes noise immunity in crowded RF environments, while the dedicated management Wi-Fi radio and UISP-ready integration simplify deployment and monitoring. With easy pole or wall mounting, enhanced ESD protection, and robust outdoor durability, it’s ideal for reliable ISP backhauls or remote connectivity.
Key Features
- 19 dBi high-gain directional antenna – delivers focused signal for 10+ km range and superior noise rejection
- 450+ Mbps throughput with airMAX ac – supports high-speed PtP/PtMP links for demanding applications
- Dedicated 2.4 GHz Wi-Fi management radio – enables easy setup, monitoring, and spectral analysis without interrupting data traffic
- UISP-ready and airOS 8 software – provides advanced QoS, TDMA protocol, and remote management for scalable networks
- Enhanced surge protection (±24kV ESD) and rugged design – ensures reliability in harsh outdoor conditions up to 80°C
Full Specifications
| Category | Details |
|---|---|
| Model | NBE-5AC-Gen2 |
| Dimensions (Mount Included) | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92″) |
| Weight (Mount Included) | 0.530 kg (1.17 lb) |
| Gain | 19 dBi |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4,5+; 7,8 Return); PoE Passthrough Supported |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 8 MB Flash |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Management Radio | 2412 – 2472 MHz (2.4 GHz Wi-Fi) |
| Max. TX Output Power | 25 dBm |
| Channel Width (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Width (PtMP) | 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Max. VSWR | 1.5:1 |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air/Contact: ±24 kV |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC; RoHS Compliant; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum range of the NanoBeam 5AC Gen2? Up to 10+ km for PtP links with line-of-sight, depending on environmental factors and configuration; real-world performance varies with noise and modulation.
- Q: Does it support PoE passthrough? Yes, the secondary Ethernet port supports 24V passive PoE out (requires 24V, 1A adapter for full functionality) to power compatible devices.
- Q: How do I set it up for a PtP bridge? Configure one as AP PtP mode and the other as Station PtP; align using signal strength LEDs or app, ensure matching SSID, frequency, and channel width.
- Q: What throughput can I expect in real-world use? Up to 450+ Mbps capacity, but real TCP/IP throughput typically 200-400 Mbps on wide channels with strong signal; CPU limits around 300 Mbps sustained.
- Q: Is it compatible with UISP for management? Yes, fully UISP-ready for remote monitoring, firmware updates, and network management via the dedicated Wi-Fi radio.
| Weight | 1 kg |
|---|---|
| Dimensions | 220 × 220 × 100 mm |
| Product Create Date | 14/03/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | NBE-5AC-GEN2 |
| Opt Accessory | NHU-POE-24-12WG, NHU-UB-AM, NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR, NHU-ETH-SP-G2, NHU-QUICK-MOUNT |
