Ubiquiti Access Ultra,Tamper-resistant Access Reader, Built-in Hub,12V/1A,PoE+, Max Power 18W,Single-door Entry Control From One Device,IP55
$203.49 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:30 Jun WA:0
Out of stock

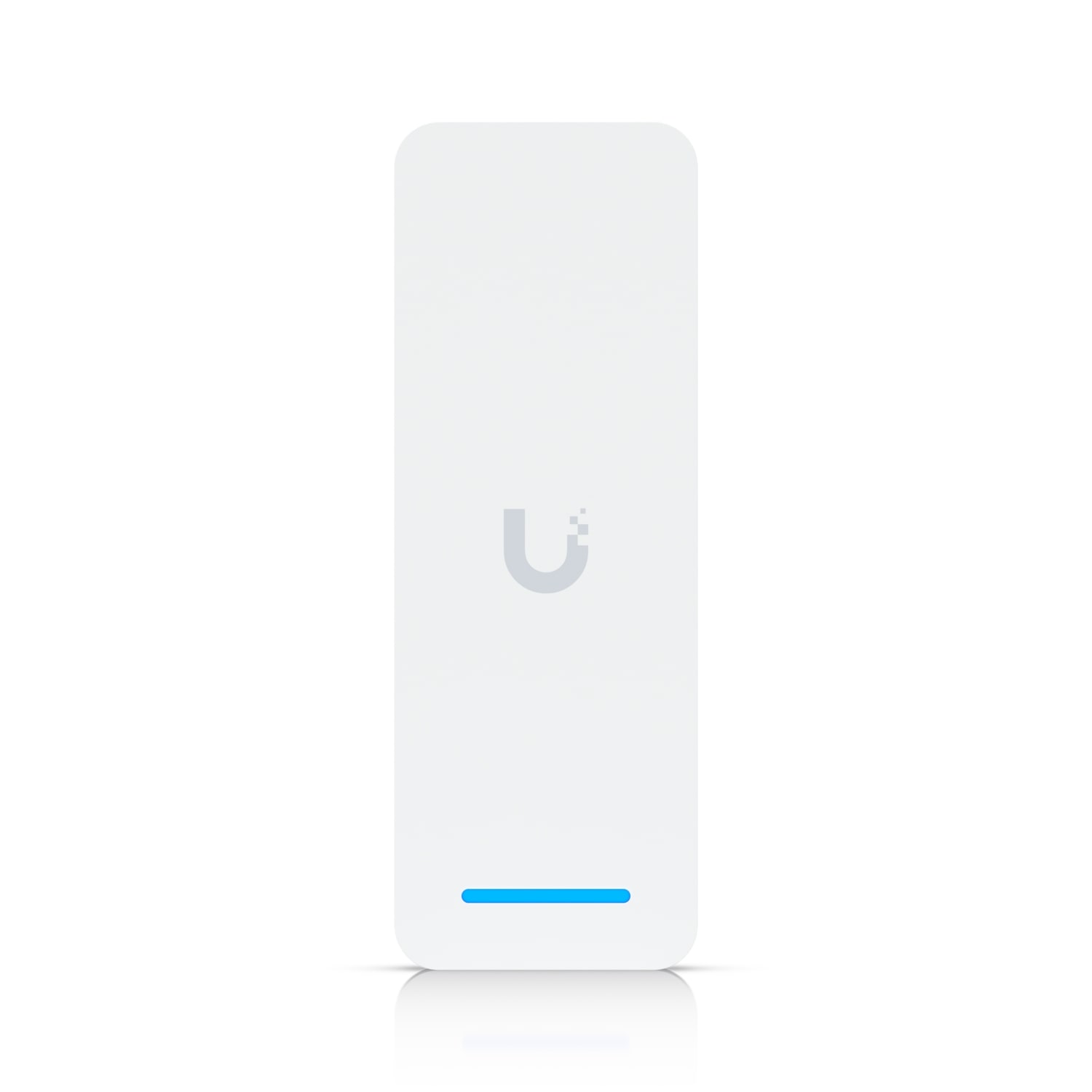

Ubiquiti Access Ultra
SKU: UA-Ultra
Tech Specs: Click Here
Installation Guide: Click Here
Description: Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.

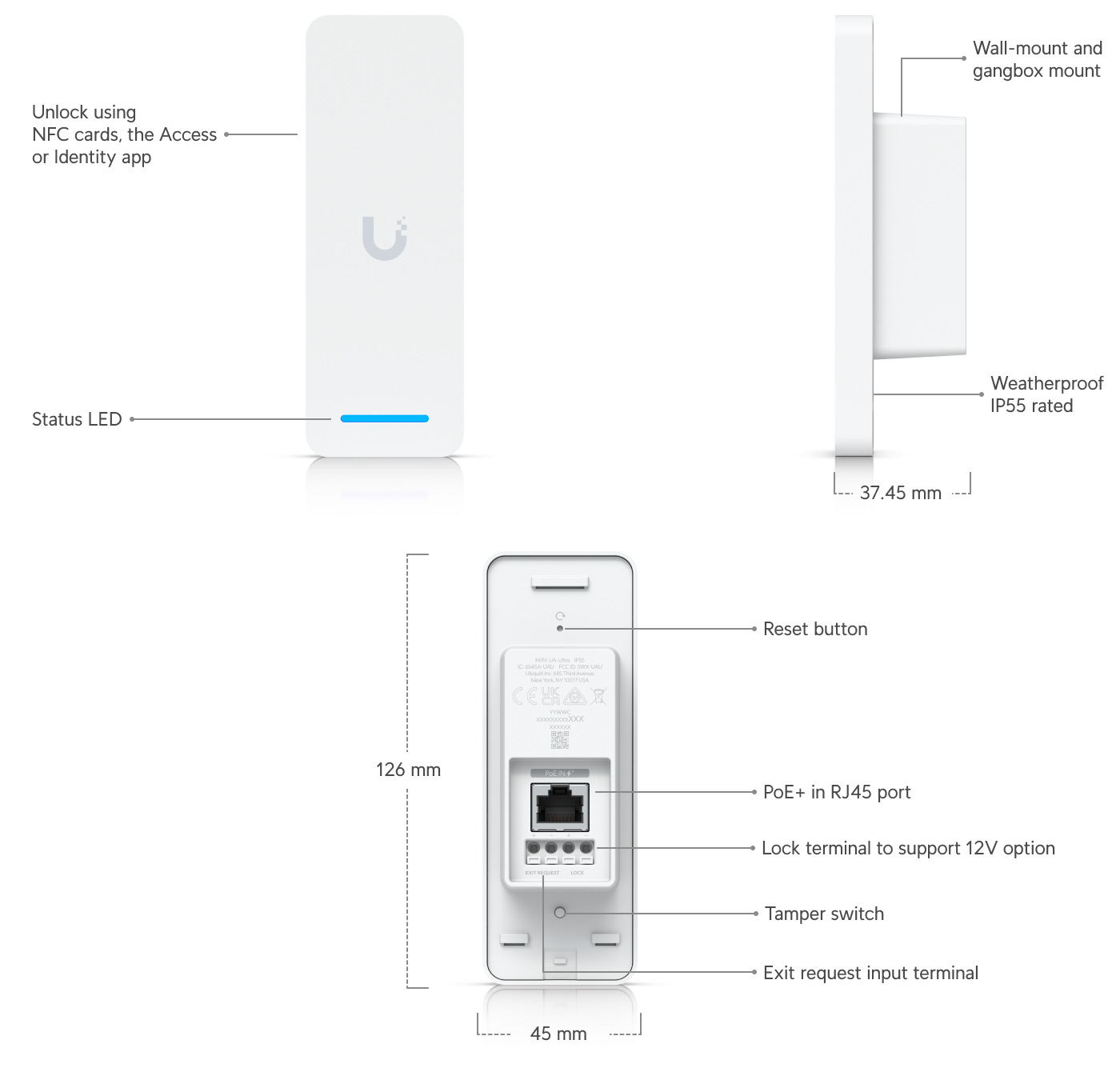

Features:
•(1) Lock terminal (12V/1A)
•(1) Exit request input
•Unlock using an NFC card or UniFi Identity mobile app
•IP55 weather resistance (-30 to 40° C)
Why Choose This?

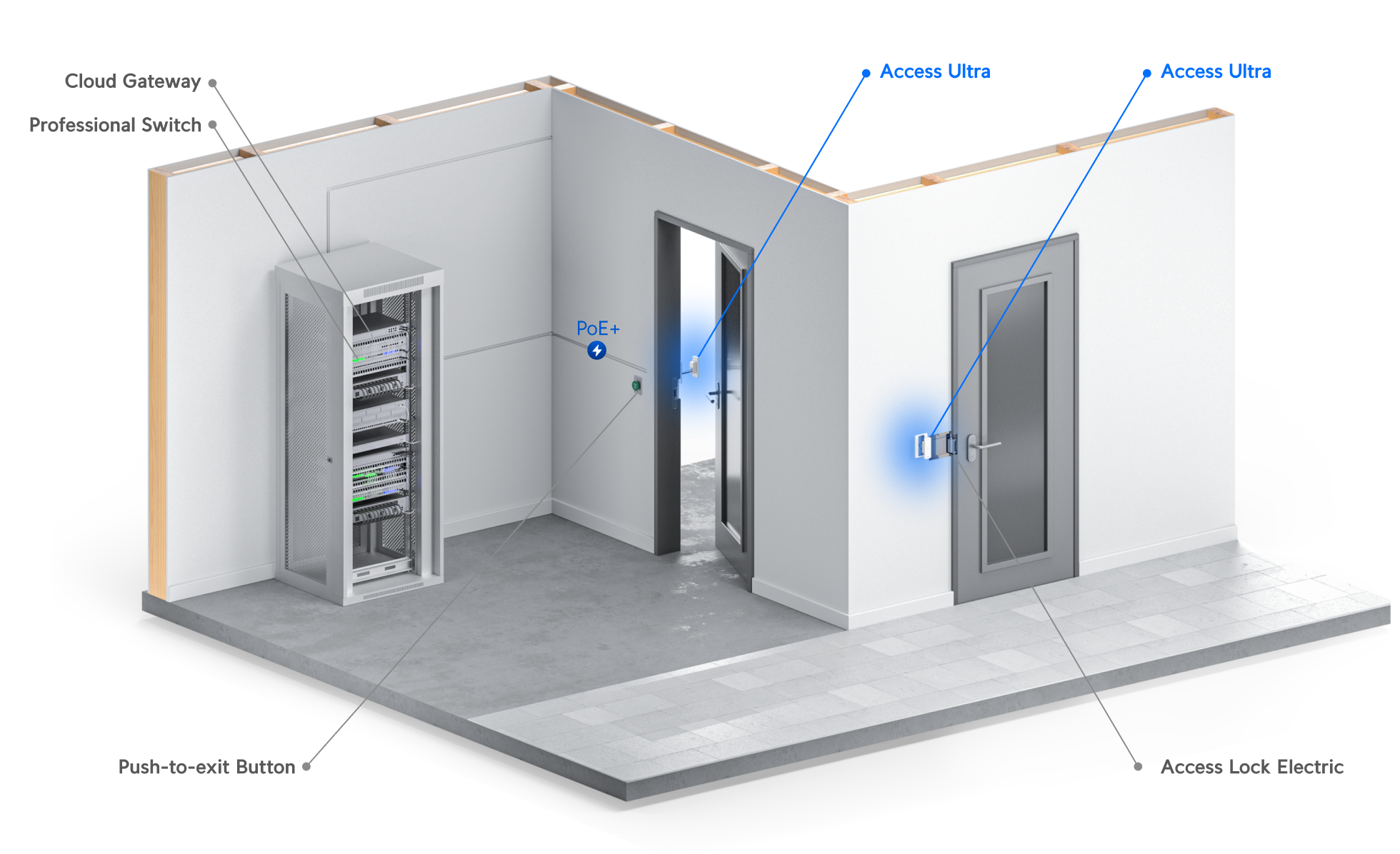

The Ubiquiti Access Ultra (UA-Ultra) is a tamper-resistant access reader with a built-in hub, enabling complete single-door entry control from one compact device. It simplifies installation by powering locks directly via PoE+ and supports NFC cards, keyfobs, and mobile app unlocks for up to 3,000 users. With IP55 weatherproofing and robust security certifications like UL 294 and NDAA compliance, it delivers reliable indoor/outdoor access management at a low cost.
Key Features
- Tamper-resistant design with switch – enhances physical security by detecting unauthorized access attempts.
- Built-in hub for single-door control – eliminates need for separate hubs, simplifying setup and reducing costs.
- NFC reader (13.56 MHz, <50 mm range) – supports multiple standards like MIFARE and NFC tags for versatile credential use.
- PoE+ powered with 12V/1A lock output – single cable deployment powers both device and lock up to 18W max.
- IP55 weatherproofing and wide temp range – ensures reliable operation indoors or outdoors from -30 to 40°C.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer SKU | UA-Ultra |
| Dimensions | 126 x 45 x 37.45 mm (4.96 x 1.77 x 1.47″) |
| Weight | 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |

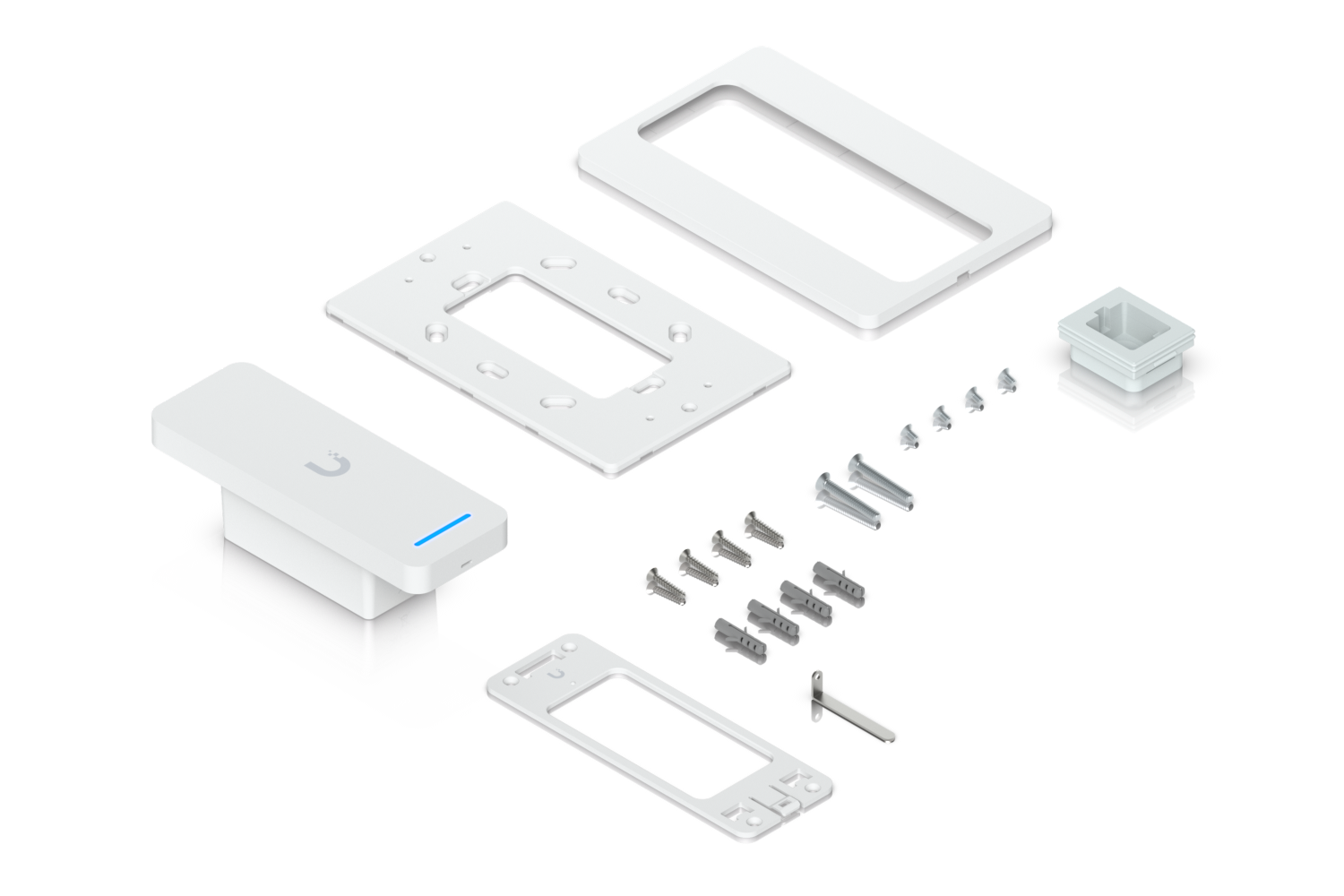

| Mounting | Wall mount, gang box mount (included); junction box (optional) |
| Weatherproofing | IP55 |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.2, Ethernet |
| Digital Input | (1) Exit request |
| Lock Terminal | (1) 12V DC, 1A |
| Power Method | PoE+; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| Max Power Consumption | 18W |
| Supported Voltage Range | 44–57V DC |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 50 mm (1.95″) |
| NFC Standards | ISO 14443A, 14443B, 15693 |
| NFC Technology | NFC Tag 1,2,3,4,5; MIFARE Classic; MIFARE Plus; MIFARE Ultralight; MIFARE DESFire |
| Maximum User Count | 3,000 |
| LEDs | R/G/B/W |
| Button | (1) Factory reset |
| Speaker | Yes (buzzer) |
| Tamper Switch | Yes |
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Operating Humidity | 5 to 90% noncondensing |
| ESD/EMP Protection | Air: ±8 kV, Contact: ±4 kV |
| Certifications | CE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294 (Level I), CAN/ULC-60839-11-1 Grade I, NDAA Compliant |
| Management Application | UniFi Access |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: Is the UA-Ultra compatible with standalone UniFi Access Hubs? No, it has a built-in hub and is not compatible with standalone Access Hubs; it’s designed for independent single-door control.
- Q: What power supply does it require? PoE+ (44-57V DC), with max consumption of 18W; it also provides powered output for locks at 12V/1A.
- Q: Can it be used outdoors? Yes, IP55-rated for weather resistance and operates from -30 to 40°C (-22 to 104°F) with 5-90% noncondensing humidity.
- Q: What credentials does it support? NFC cards/keyfobs at 13.56 MHz including ISO 14443A/B/15693, MIFARE variants, NFC Tags 1-5, and mobile unlock via UniFi Identity app; up to 3,000 users.
- Q: What if the device goes offline? Ensure same VLAN as UniFi Console, verify PoE+ power/cabling (Cat5e min), update firmware via unifi.ui.com, factory reset if needed, and check LED indicators for status.
| Weight | 0.4 kg |
|---|---|
| Dimensions | 172 × 98 × 78 mm |
| Product Create Date | 06/06/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UA-Ultra |
