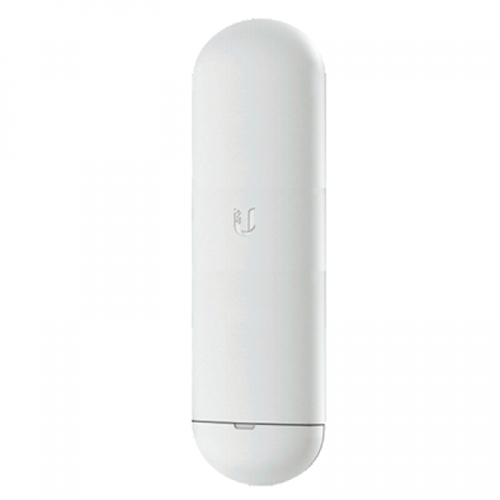

Ubiquiti 5 GHz NanoStation ac Radio -Up to 450+ Mbps Real TCP/IP Throughput, 15+ km Link Range
$238.00 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:12 Jul WA:0
Out of stock
Ubiquiti 5 GHz NanoStation ac Radio
SKU: NS-5AC
Tech Specs: Click Here
Description: UISP-supported WiFi radio designed for point-to-point and customer premises applications.
Ubiquiti Networks set the bar for the world’s first low-cost and efficient broadband Customer Premises Equipment (CPE) with theNanoStation® M.The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicatedWi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Features:
• 5 GHz, 15+ km link range
• 450+ Mbps throughput
• Secondary LAN with PoE out support
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
Why Choose This?

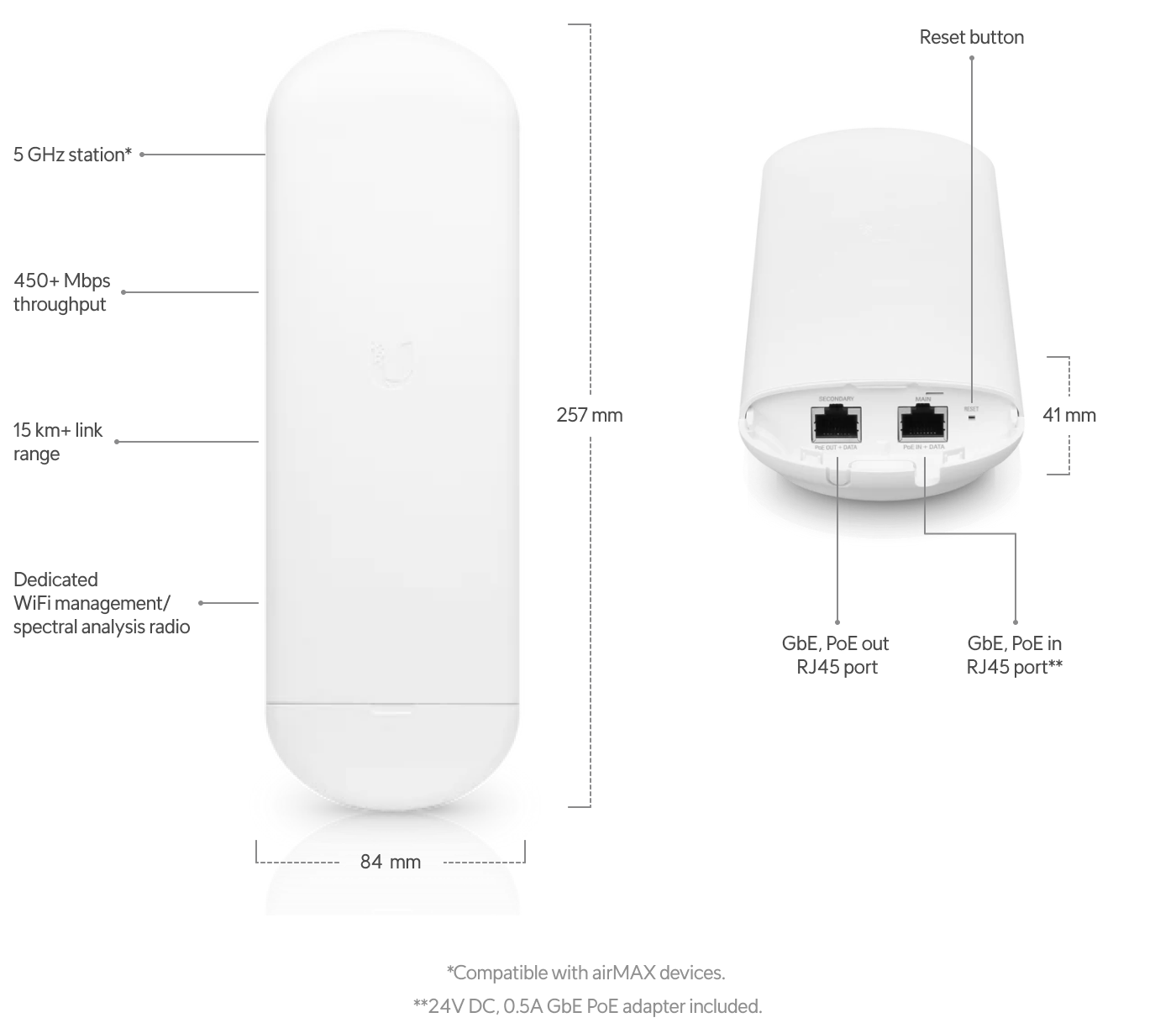

The Ubiquiti 5 GHz NanoStation ac Radio (NS-5AC) is a high-performance, UISP-supported WiFi radio engineered for reliable point-to-point and customer premises applications, delivering up to 450+ Mbps real TCP/IP throughput over 15+ km ranges with clear line-of-sight. Its compact design integrates a powerful 16 dBi antenna with dual Gigabit Ethernet ports, including a secondary PoE passthrough for powering cameras or other devices seamlessly. Ideal for extending networks in rural, urban, or challenging environments, it offers robust surge protection, easy mobile setup, and advanced airMAX ac technology for interference-resistant performance.
Key Features
- Up to 450+ Mbps real TCP/IP throughput – Enables high-speed wireless bridging for data-intensive applications over long distances.
- 16 dBi integrated antenna with 45° beamwidth – Provides focused, long-range (15+ km) point-to-point links with excellent signal isolation.
- Dual Gigabit Ethernet ports with secondary PoE passthrough – Powers external devices like IP cameras directly, simplifying installations.
- Dedicated 2.4 GHz Wi-Fi management radio – Allows quick setup and configuration via mobile app without disrupting the main 5 GHz link.
- Advanced airMAX ac technology – Delivers superior noise immunity and real-time RF analytics for optimal performance in noisy environments.
Full Specifications
| Category | Details |
|---|---|
| Dimensions (With Mount) | 257 x 84 x 41 mm (10.12 x 3.31 x 1.61″) |
| Dimensions (Without Mount) | 257 x 84 x 30 mm (10.12 x 3.31 x 1.18″) |
| Weight | 233 g (8.22 oz) |
| Enclosure Material | UV-Resistant Polycarbonate |
| Mounting | Pole-Mount and Wall-Mount Kits Included |
| Antenna Gain | 16 dBi |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.6:1 |
| Networking Interface | (2) 10/100/1000 Mbps Ethernet Ports |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Max. Power Consumption | 9W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 802.3af Alternative A (Pairs 1,2+; 3,6 Return); 24V Passive PoE (Pairs 4,5+; 7,8 Return) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Throughput | Up to 450+ Mbps Real TCP/IP |
| Operating Frequency (5 GHz) | Worldwide: 5150-5875 MHz; USA: U-NII-1 (5150-5250), U-NII-2A (5250-5350), U-NII-2C (5470-5725), U-NII-3 (5725-5850) |
| Management Radio | Worldwide: 2412-2472 MHz; USA: 2412-2462 MHz |
| Max. Output Power | 25 dBm |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz (PtP) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | ±24kV Contact/Air |
| Certifications | CE, FCC, IC |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum range of the NS-5AC? Up to 15+ km with clear line-of-sight, depending on environmental conditions, antenna alignment, and interference levels.
- Q: Does it support PoE passthrough on the secondary port? Yes, the secondary Ethernet port provides software-enabled 24V passive PoE passthrough to power devices like IP cameras.
- Q: How do I set it up for point-to-point bridging? Use the UISP mobile app or airOS web interface via the dedicated 2.4 GHz management Wi-Fi; configure one unit as Access Point (PtP) and the other as Station (PtP) with matching frequencies and SSID.
- Q: What power methods are supported? 802.3af PoE (Alternative A) or 24V passive PoE (pairs 4,5+; 7,8 return); includes a 24V 0.5A Gigabit PoE adapter.
- Q: Is surge protection necessary? Recommended for outdoor use; features built-in ±24kV ESD protection, but add ETH-SP protectors near the device and building entry for optimal safety.
| Weight | 0.92 kg |
|---|---|
| Dimensions | 114 × 314 × 90 mm |
| Product Create Date | 23/01/2018 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | NS-5AC |
| Opt Accessory | NHU-POE-24-12WG |
