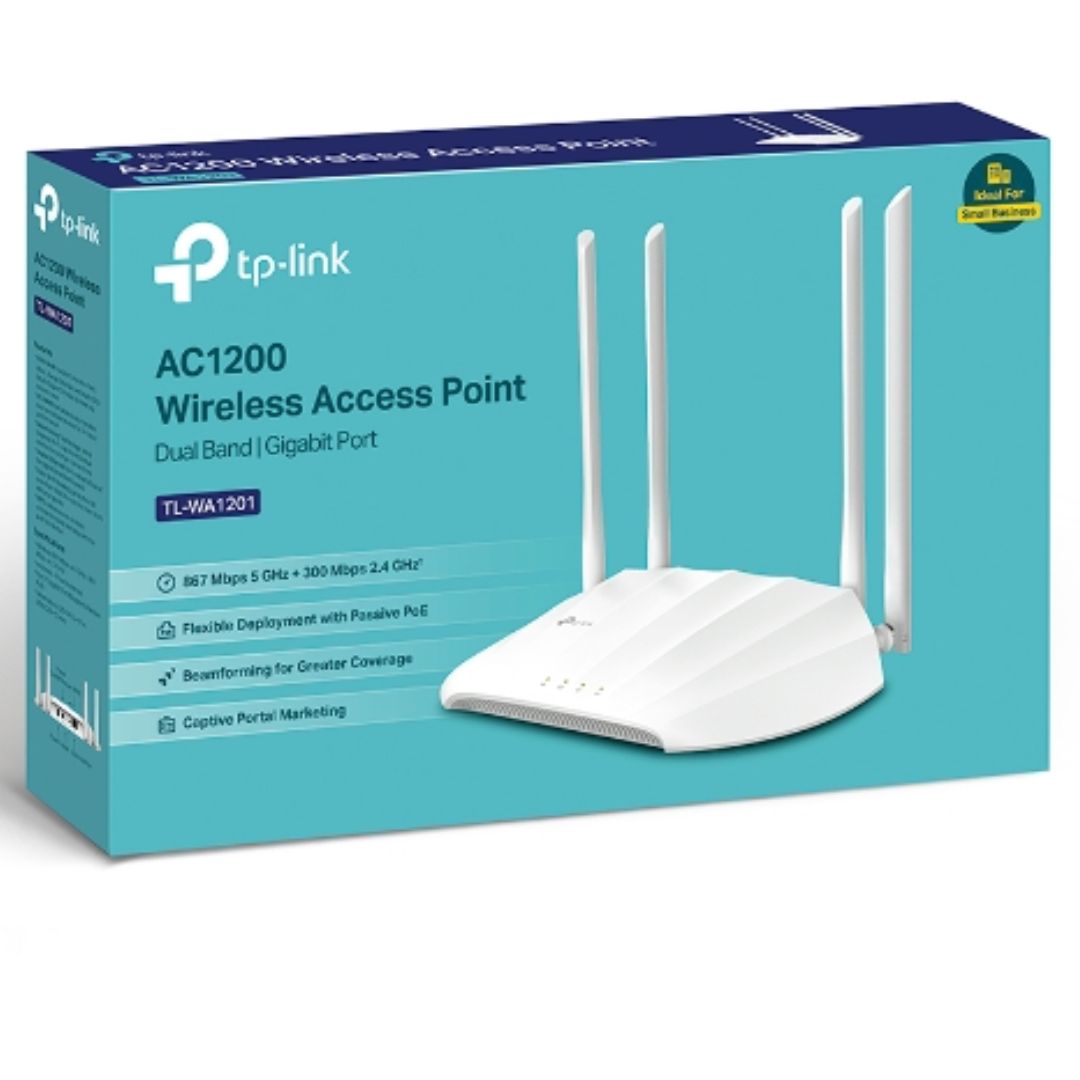

TP-Link TL-WA1201 AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Passive POE, Multiple Modes, MU-MIMO, Boosted Coverage, Captive Portal

TP-Link TL-WA801N 300Mbps Wireless N Access Point
• AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
• Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
• Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
• MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
• Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
• Captive Portal – Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES
Interface 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ) 225×145.5×37 in (400×255×72 mm)
Antenna Type 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz5GHz) Wireless Modes Access Point, Range Extender, Client, Multi-SSID Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions DHCP Server, DHCP Client List Quality of Service WMM Advanced Functions Captive Portal OTHERS Certification CE, FCC, RoHS Package Contents Wireless Access
