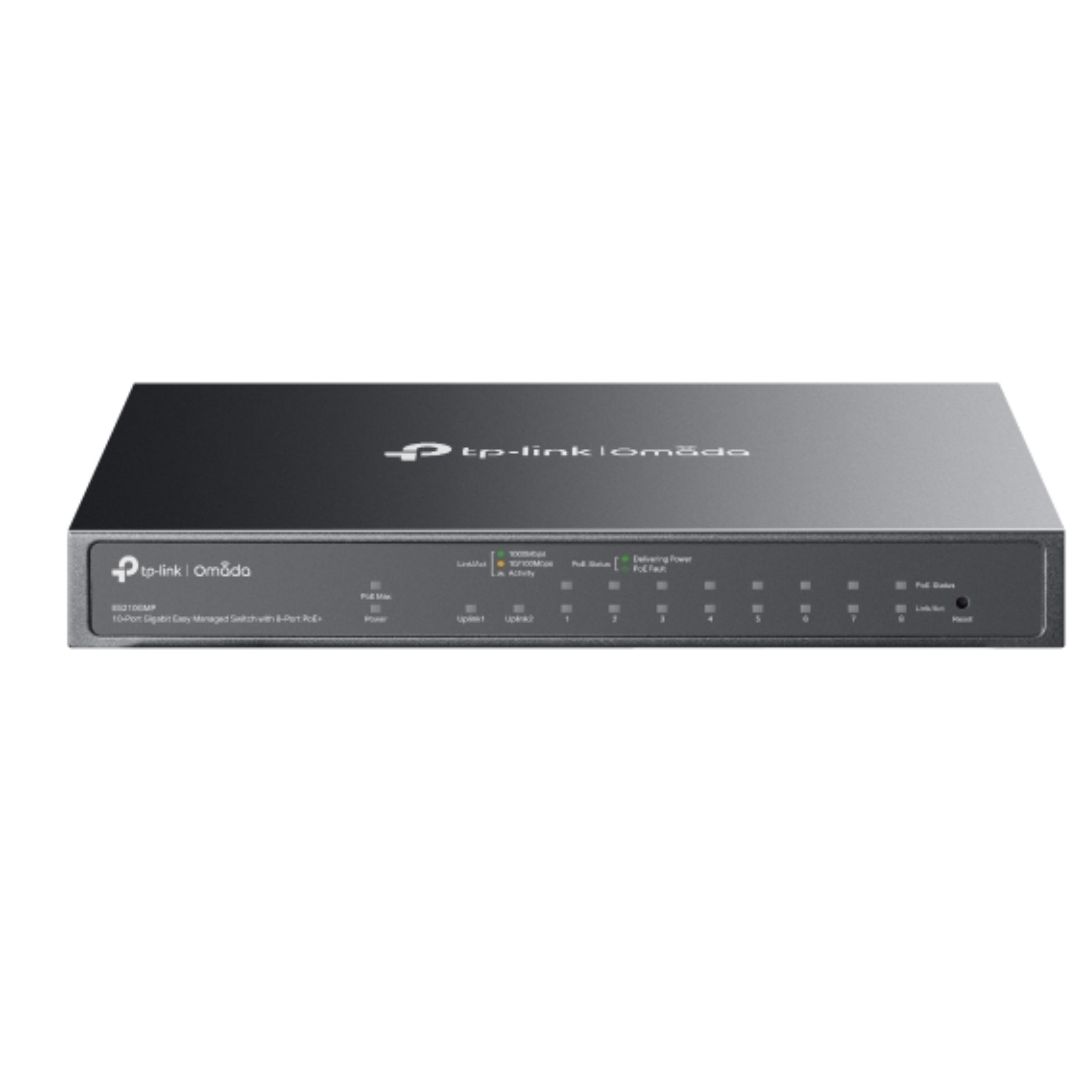

TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, V
$205.87 $199.69 inc GST
Manufacturer: TP-LINK
Availability: BRS:30 ADL:0 SYD:0 MEL:2 WA:1
33 in stock
TTP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
• 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
Warranty Period: 5-Year
Why Choose This?
The TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch delivers reliable Gigabit connectivity with 8 PoE+ ports offering a 123W power budget, ideal for powering IP cameras, access points, and VoIP phones in surveillance and business networks. Its fanless design ensures silent operation, while features like centralized Omada cloud management, up to 250m PoE transmission, and advanced L2 functionalities such as flow control, loopback detection, and port isolation provide seamless deployment and enhanced network security. Perfect for small to medium businesses seeking plug-and-play simplicity with scalable management.
Key Features
- 8× Gigabit PoE+ Ports (123W Budget) – Powers multiple devices like cameras and APs without extra injectors, up to 30W per port.
- Centralized Omada Cloud Management – Easy monitoring and configuration via web or app, with zero-touch provisioning for multi-site networks.
- Up to 250m PoE Transmission – Extends surveillance reach with auto speed downgrade to 10 Mbps for long cable runs.
- Flow Control & Loopback Detection – Prevents network congestion and loops for stable, reliable performance.
- Port Isolation & Mirroring – Enhances security by segregating traffic and enables diagnostics for troubleshooting.
Full Specifications
| Category | Details |
|---|---|
| Model | ES210GMP |
| Interfaces | 8× 10/100/1000 Mbps PoE+ RJ45 Ports, 1× 10/100/1000 Mbps RJ45 Port, 1× Gigabit SFP/RJ45 Combo Port |
| PoE Standard | 802.3af/at, 8 ports, up to 30W per port |
| PoE Power Budget | 123W total |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 15 KB |
| Transmission Method | Store-and-Forward |
| Dimensions (W×D×H) | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in) |
| Fan Quantity | Fanless |
| Power Supply | AC/DC Adapter (100-240V AC Input; 53.5VDC / 2.43A Output) |
| Max Power Consumption | 141.46 W (with 123W PD connected) |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CE, FCC, RoHS |
| L2 Features | Static LAG (up to 4 groups, 6 ports/group), Loopback Detection, 802.3x Flow Control, Port Mirroring, IGMP Snooping v1/v2/v3, VLAN (Port-based, 802.1Q up to 32 groups/4K VID) |
| QoS | Port-based/802.1p/DSCP, 8 queues, WRR, Bandwidth Control, Storm Control |
| Management | Omada SDN (Cloud/Hardware/Software Controller), Web GUI, Omada App, DHCP Client, Cable Diagnostics |
| Surge Protection | ±6 kV (Ethernet Ports) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the total PoE power budget? 123W total across 8 PoE+ ports, with up to 30W per port; actual budget varies by device and environment.
- Q: Does it support long-distance PoE transmission? Yes, up to 250m on supported ports, with speed downgrading to 10 Mbps depending on cable quality.
- Q: How is it managed? Via Omada SDN controllers (cloud, hardware, software), web GUI, or Omada app; supports standalone mode or centralized management.
- Q: Is PoE Auto Recovery supported? Yes, in standalone mode automatically; manual reboot in controller mode.
- Q: What installation options are available? Desktop or wall-mountable with included rubber feet; fanless metal casing for silent, durable deployment.
| Weight | 1.6 kg |
|---|---|
| Dimensions | 316 × 242 × 72 mm |
| Product Create Date | 07/11/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | ES210GMP |
