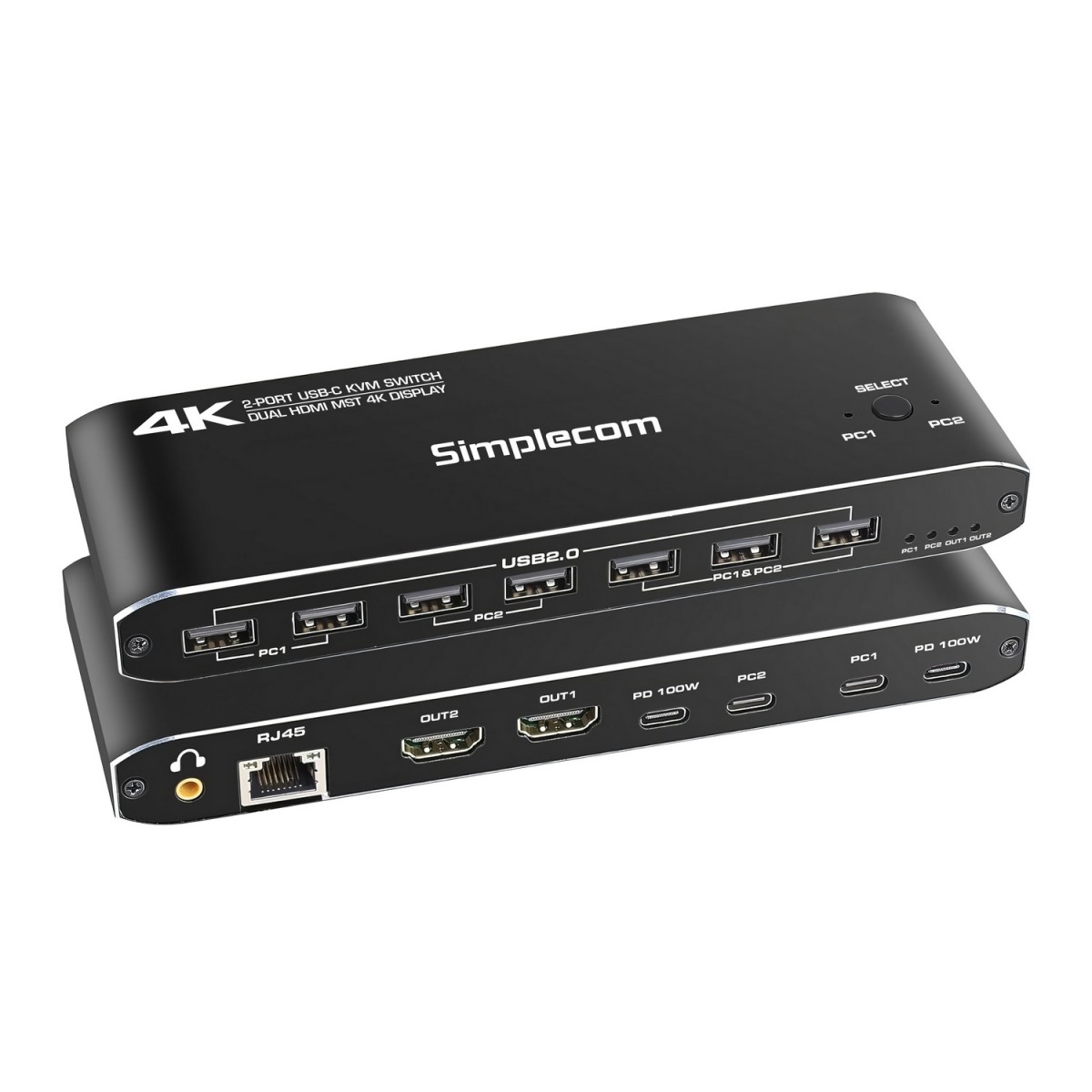

Simplecom KM590 2-Port USB-C Dual 4K HDMI Monitor KVM Switch and Docking Station with Network Sharing

Simplecom KM590 2-Port USB-C Dual 4K HDMI Monitor KVM Switch and Docking Station with Network Sharing

Upgrade your workspace with this USB-C KVM Switch and Docking Station, ideal for professionals who need to control two laptops while maximizing productivity with dual external monitor support.

By utilizing the multifunctional USB-C interface on modern laptops, this all-in-one solution integrates a USB-C docking station, KVM switching, and network sharing, making it perfect for multitaskers, creators, and remote workers who need to connect two laptops to dual external screens and USB peripherals, with a single-button toggle for effortless switching between two computers.

Control Two Laptops with One Setup
Effortlessly switch between two computers using a single keyboard, mouse, and dual monitors, eliminating the hassle of swapping cables and rearranging connections every time you switch laptops.

Dual HDMI Connectivity with MST Support
Connect two monitors simultaneously using dual HDMI ports and enjoy two extended desktops setup with Multi-Stream Transport (MST) support for enhanced multitasking. The two HDMI 2.0 ports deliver resolutions up to 4K@30Hz on dual displays or 4K@60Hz on a single display.

Ethernet Sharing Capability
The RJ45 port ensures both laptops stay connected to the internet without swapping cables. The integrated Ethernet switch allows both connected computers to access the internet simultaneously, maintaining reliable connectivity.

Dual PD Charging Port
Keep both laptops powered with two PD charging ports that allow simultaneous charging, ensuring both laptops stay charged.

Integrated Audio Output
Not only for USB peripherals, you can easily plug in headphones or speakers using the 3.5mm audio jack, eliminating the need to swap audio cables.

Self-Powered Plug-and-Play
No external power adapter required, this KVM switch is powered directly through the connected laptops. Hot-swappable and driver-free, making setup quick and effortless.

Features

USB-C KVM switch allows control 2 laptop computers with 2 external screens
Integrated USB-C docking station with Dual HDMI, USB Ports, Ethernet, and PD charging
Two HDMI output ports for connecting two monitors simultaneously
Supports MST (Multi-Stream Transport) for two extended screens
7 USB 2.0 ports for connecting mouse, keyboard, printer and more
3.5mm audio jack for connecting headphones or speakers
Integrated Ethernet Switch, RJ45 port enables both computers to access internet simultaneously
Two PD charging ports allow charging for both laptops at the same time
HDMI 2.0 compliant, support video resolution up to 4K
Supports resolutions up to 4K@60Hz when a single display is connected
Supports resolutions up to 4K@30Hz when two displays are connected
Easy to use by pressing the toggle button on the KVM switch
Self-powered via connected laptop, no external power required
Plug and play, hot swappable and no driver software required
Durable aluminium alloy casing, also efficiently dissipate heat
LED light indicating the active computer and PD charging
Specifications

Model: KM590
USB Upstream Ports: USB-C x2 (Connect to PC1 and PC2)
USB Downstream Ports: USB 2.0 x7 (3x Switchable USB Ports, 2x USB for PC1, 2x USB for PC2)
USB Max Bandwidth: HighSpeed 480Mbps
PD Charing Port: USB-C x2 (up to 100W on each port)
Video Output: HDMI 2.0 x2
HDMI Max Bandwidth: 18Gbps
Max Video Resolution: up to 4K@60Hz (Single HDMI output), 4K@30Hz (Dual HDMI outputs)
RJ45 Port: Fast Ethernet (10/100 Mbps), with Integrated Ethernet Switch
Audio Output: 3.5mm audio jack (sound output only)
Operating Temperature: 0 to 50°C
Dimension (L x W x H): 17.6 x 6.3 x 2.1CM
Weight: 186g approx.
Operating System Support: Windows, MacOS, Chrome OS
Package Contents

1x KM590 USB-C KVM Switch
2x USB-C to USB-C Cables (USB4 and Thunderbolt 4 compliant)
System Requirements

Laptop or PC with full functional USB-C port that supports
