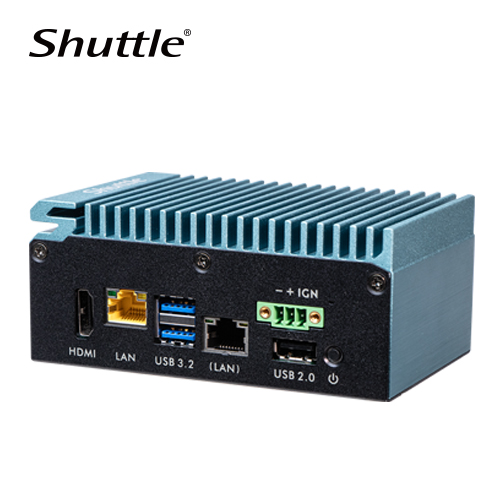

Name: Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz - 32GB M
SKU: SYS-SPCEL03
Availability: InStock

Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB) Dual Channel DDR4-3200MHz – 32GB M

$850.85 inc GST

Manufacturer: Shuttle

Stock: BRS:CALL ADL:CALL SYD:CALL MEL:2 PER:CALL

2 in stock

SPCEL03 Industrial Computer offers compact computing with a durable metallic design and versatile mounting options. Powered by Intel® Elkhart Lake processors, it supports UHD graphics and up to 32GB DDR4-3200 RAM. Featuring the smallest PICO-ITX motherboard, it provides diverse connections, WLAN connectivity, and expandability. Users can configure RAM, SSD capacity, and install an AI accelerator card for enhanced AI computing. Ideal for edge computing, automation, digital signage, data logging, and video surveillance.

Processor: Intel Atom x6413E, x6211E

Memory: Dual Channel DDR4-3200MHz – 32GB Max

Storage: M.2 M 2280/2242
4K/ uhd visuals via HDMI2.0b and Display port 1.4
Upto 2.5GbE Dual LAN support, featuring BIOS Wake on LAN
Real time computing and ethernet, functional, safety adm industrial centric I/Os
Improved performance for AI and computer vision

VESA Mounting options
Wide Temperature Applications -20-60 degree C
Modular Connectivity
Fanless

Why Choose This?

The Shuttle SPCEL03 is a fanless industrial edge computer designed for reliable 24/7 operation in harsh environments, featuring a robust aluminum chassis and wide operating temperature range from -20°C to 60°C. Powered by the efficient Intel Atom x6413E processor, it delivers seamless performance for edge computing, IoT gateways, automation, digital signage, and video surveillance with dual 2.5G LAN ports and versatile I/O options. Its compact 460 ml size with flexible DIN-rail and VESA mounting makes it ideal for space-constrained industrial installations requiring low maintenance and silent operation.

Key Features

Fanless design with passive cooling – ensures silent, maintenance-free 24/7 operation in dust-prone environments.
Intel Atom x6413E processor – provides efficient quad-core performance up to 3.0 GHz for multitasking IoT and edge tasks.
Dual 2.5G Ethernet ports – enables high-speed networking, redundancy, and support for PXE/WOL.
Wide temperature range (-20°C to 60°C) – reliable deployment in extreme industrial conditions.
Versatile I/O including RS232/422/485 COM and DIO (4-in/4-out) – perfect for automation, sensors, and legacy systems.

Full Specifications

Category	Details
Processor	Intel Atom x6413E (Quad Core, 1.5 GHz base / 3.0 GHz turbo, 9W TDP, Elkhart Lake, soldered)
Memory	1x SO-DIMM DDR4-3200, max 32GB (unbuffered, no ECC); extended temp modules required >40°C
Graphics	Integrated Intel UHD Graphics (Gen 10), 400-800 MHz, supports 4K@60Hz via HDMI 2.0b
Storage	1x M.2 2242/2280 SATA SSD (PCIe/NVMe not supported); extended temp SSD required >40°C
Wireless Slot	1x M.2 2230 E-key (PCIe x2 + USB 2.0) for WLAN/BT or AI accelerator (e.g., Hailo-8)
Networking	2x 2.5G RJ45 LAN (Intel i226-V, 100/1000/2500 Mbps, PXE, WOL)
Front I/O	1x HDMI 2.0b, 2x USB 3.2 Gen2 (10Gbps), 1x USB 2.0, 2x LAN, DC-in (3-pin Euroblock)
Rear I/O	1x COM RS232/422/485 (DB9), DIO 4-in/4-out (2×5-pin, 2500Vrms isolation), 2x WLAN antenna holes
Power Input	12-24V DC (min 65W adapter), 3-pin Euroblock with IGN pin, adapter cable included
Dimensions	120 x 75 x 51 mm (W x D x H), 460 ml volume
Weight	970g net (with accessories), 1.2kg gross
Chassis	Aluminum (dark grey), fanless passive cooling
Mounting	DIN-rail (35mm), VESA 100×100/50×50 mm, rubber feet
Operating Temp	-20°C to 60°C (20-80% RH non-condensing)
OS Support	Windows 10/11 (64-bit), Linux (64-bit); no OS pre-installed
Certifications	CE, FCC Class A, EN50155 OT1, MIL-STD-810G, CB/UL, TPM 2.0

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

Q: What is the operating temperature range? -20°C to 60°C; RAM and SSD must support extended temp (-40°C to 85°C) above 40°C ambient.
Q: Does it support NVMe SSDs? No, M.2 slot is SATA only; PCIe/NVMe not supported.
Q: Is the system fanless? Yes, completely fanless with passive aluminum heatsink for silent, dust-resistant operation.
Q: What power supply is required? 12-24V DC input, minimum 65W power source; adapter not included, cable provided.
Q: Can it be mounted on DIN-rail? Yes, includes DIN-rail clip for 35mm rail and VESA brackets for flexible installation.

Weight	2 kg
Dimensions	50 × 120 × 76.2 mm
Product Create Date	01/07/2024

Manufacturer	Shuttle
Warranty	36
Manufacturer SKU	SPCEL03
