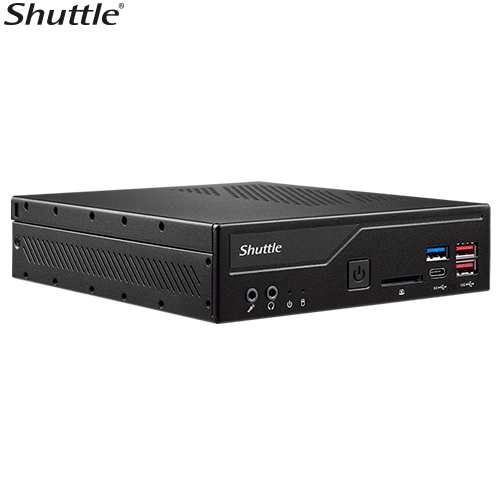

Shuttle DH670 Slim Mini PC 1L Barebone- Intel 12th/13th/14th Gen, 2x DDR4, 2.5″ HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W

Shuttle DH670 Slim Mini PC 1L Barebone-Support Intel 12th Gen, 2x DDR4, 2.5″ HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W

Form Factor
1.3L chassis

Processor
Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor
BIOS v2.05 and updated version support Raptor Lake (13th) CPU

Chipset
Intel H670 Express Chipset

Memory
2x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz

Video Output
HDMI 2.0 x 2+ DisplayPort x 2, Quad Video Outputs
4K playback (Dual Channel Memory Recommended) Integrated in CPU

Audio
Realtek ALC662/897/888S High Definition Audio

Ethernet
2x Intel Gigabit LAN (DH670)
2x Intel 2.5GbE LAN (DH670 V2)
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature

Storage Interface
SATA 6.0Gb/s interface

Onboard Connectors
1x 4pin fan connector
1x VGA(For PVG01 use)
1x 1×4 pin USB header(For WWN03 use)
1x SATA connector w/power
1x Front audio header
1x Auto power on header
1x RS232 voltage switch

Front Panel
2x USB 3.2 Gen1 ports
2x USB 3.2 Gen2 ports
1x Microphone-In
1x Line-Out
1x Power-On button
1x Power LED
1x HD

Back Panel
2x RJ45 LAN ports
2x HDMI port
2x Display port
2x USB 3.2 Gen1 ports
2x USB 3.2 Gen2 ports
1x RS232
1x RS232/RS422/RS485
1x External 4pin header
1x DC-in
2x Wireless Antenna fixture
1x Kensington lock

Drive Bays
1x 2.5″ HDD / SSD bay

Dimensions
190(L) x 165(W) x 43(H) mm

Power
120W Power Adapter
Input:100- 240V AC
19V 6.32A

Accessories
VESA mount
VESA Screw pack
120W adapter

Expansion Slot
1x M.2 2280 Type M key socket
1x M.2 2230 Type E key socket

OS Support
Windows 10/11 64 bit O.S
Linux

Who It’s For

Ideal for IT professionals, system integrators, and businesses requiring a compact, reliable slim mini PC for demanding professional environments such as digital signage, POS/POI systems, industrial automation, healthcare, and multi-monitor office or content creation setups. It suits users needing robust connectivity, 24/7 operation, and support for the latest Intel 12th–14th Gen desktop processors in a space-saving 1.3L chassis.

Real-World Use Cases

• Deploy quad 4K digital signage displays in retail or corporate lobbies for dynamic advertising and information sharing with reliable 24/7 performance.
• Power industrial control or automation systems using the dual RS232 (RS422/485 configurable) ports for seamless integration with legacy machinery and sensors.
• Build compact multi-workstation setups in offices or control rooms with four independent displays for enhanced productivity and multitasking.
• Serve as a rugged embedded platform in healthcare or kiosk applications, leveraging dual 2.5GbE LAN for secure, high-speed networking and Wake-on-LAN support.

Key Advantages

• Supports up to four independent 4K displays via 2x HDMI 2.0b and 2x DisplayPort 1.4 for superior visual output in signage or multi-monitor workflows.
• DH670 V2 features dual Intel 2.5GbE LAN ports for faster, more reliable enterprise networking compared to standard Gigabit models.
• Compact 1.3L metal chassis with included VESA mount enables flexible installation in tight spaces while supporting 24/7 operation up to 50°C ambient temperatures.
• Extensive I/O including four USB 3.2 ports (Gen1/Gen2 with Type-C), M.2 expansion slots for NVMe SSDs and Wi-Fi, plus SATA RAID support for versatile storage configurations.

Full Specifications

Practical Considerations

• Perform BIOS updates as needed for full 13th/14th Gen CPU compatibility using a supported processor.
• For high-temperature environments (>40°C), prioritize SSD storage over HDDs to ensure reliability during 24/7 operation.
• Leverage the included VESA mount or optional accessories (e.g., DIN-rail, rackmount, vertical stand) for custom installations in industrial or space-constrained setups.

Frequently Asked Questions

• Q: Does it support 14th Gen Intel processors out of the box? Most units require a BIOS update (v2.10 or later) for full 14th Gen Raptor Lake Refresh compatibility; check Shuttle’s site for the latest BIOS.
• Q: How many displays can it drive simultaneously? Up to four independent 4K displays via the dual HDMI and dual DisplayPort outputs, ideal for multi-monitor or signage applications.
• Q: What storage options are available? One 2.5″ SATA bay plus M.2 2280 PCIe 4.0 x4 NVMe support, with SATA RAID 0/1 for performance or redundancy.
• Q: Is it suitable for 24/7 operation? Yes, officially rated for continuous use up to 50°C ambient with its efficient heatpipe cooling system.
• Q: How does it compare to similar models? The DH670 V2 offers faster dual 2.5GbE LAN versus the standard DH670’s Gigabit ports and lacks the SD reader; both outperform lower-chipset models like DH610 series in multi-display and expansion capabilities.
• Q: What is the warranty and local support? Shuttle typically offers a standard 2-3 year limited warranty depending on region and reseller; check with your Australian authorized dealer for local support and service options, as global Shuttle resources are available online.
