Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 5 125H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 5 125H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

FORM FACTOR 1.3L chassis
PROCESSOR Intel Core Ultra 5 125H 28W CPU
MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (4)Intel 2.5GbE LAN
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) Auto power on header

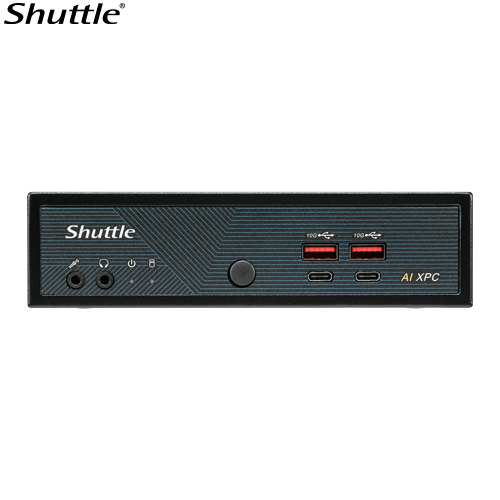

FRONT PANEL (2) USB 3.2 Gen2x2 TypeC ports
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (4) RJ45 LAN port w/LED
(2) HDMI port TMDS Compatiible
(2) Display port
(4) USB 3.2 Gen2 ports
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
120W adapter
EXPANSION SLOT (2) M.2 2280 M key socket for NVMe/SATA SSD
(1) M.2 2280 M key socket for NVMe SSD/WWN04
(1) M.2 2230 Type E key socket for WIFI
OS SUPPORT Windows 11 64 bit O.S
Linux
OPERATING TEMPERATURE 0℃~50℃

Who It’s For

Ideal for IT professionals, system integrators, and businesses needing a compact, high-connectivity AI-ready mini PC for demanding environments like network management, multi-display workstations, industrial control, surveillance NVRs, and edge AI applications. It suits 24/7 operation in offices, data centers, or industrial settings where space is limited but performance and expansion are essential.

Real-World Use Cases

• Deploy as a high-performance network gateway or firewall with four dedicated 2.5G LAN ports to segment traffic securely across WAN, LAN, guest, and DMZ zones while running virtual machines.
• Power a multi-monitor command center or trading station with quad 4K display support via HDMI 2.1 and DP ports, ideal for real-time data visualization, surveillance monitoring, or video editing workflows.
• Build a compact NAS or media server using three M.2 2280 slots with RAID 0/1/5 support for fast, redundant storage of large datasets or 4K/8K content libraries.
• Run AI-accelerated edge computing tasks such as image processing, machine vision, or IoT gateway operations leveraging the integrated NPU for up to 34 TOPS total AI performance.

Key Advantages

• Exceptional connectivity with four 2.5G LAN ports, eight USB ports (including two high-speed USB-C with PD), and quad-display outputs in an ultra-compact 1.3-liter chassis.
• Strong AI capabilities from the Intel Core Ultra 5 125H with dedicated NPU delivering up to 34 TOPS total performance for accelerated machine learning and inference workloads.
• Flexible high-speed storage expansion with three M.2 2280 slots supporting PCIe 4.0 NVMe RAID for performance and data protection in a space-saving design.
• Reliable 24/7 operation with 0–50°C temperature tolerance, VESA mounting, and robust metal chassis, making it perfect for continuous industrial or professional use.

Full Specifications

Practical Considerations

• This is a barebone system—memory, storage, and optional WLAN/4G modules must be added separately; plan for DDR5-5600 SO-DIMMs and M.2 2280 NVMe SSDs for best performance.
• Excellent for multi-display or multi-network setups, but verify total power draw with added components to stay within the 120W adapter capacity.
• Quiet fan cooling and compact size make it suitable for office or industrial environments; use the included VESA mount for wall or monitor attachment to save desk space.

Frequently Asked Questions

• Q: What components do I need to add to make it fully functional? You will need to install up to 96 GB DDR5-5600 SO-DIMM RAM (2 slots), one or more M.2 2280 NVMe SSDs (up to 3, with RAID support), and optionally a WLAN module or 4G/5G kit. An operating system (Windows 11 or Linux 64-bit) is also required.
• Q: Can it handle AI workloads effectively? Yes, the Intel Core Ultra 5 125H includes a dedicated NPU delivering 11.5 TOPS, with total system AI performance reaching up to 34 TOPS, making it suitable for local inference, image processing, and accelerated machine learning tasks.
• Q: How many displays can it drive simultaneously? It supports up to four independent 4K/UHD displays at 60 Hz via the two HDMI 2.1 and two DisplayPort 1.4a ports, with flexible configurations managed through Intel Graphics Command Center.
• Q: Is it suitable for 24/7 operation? Yes, it is designed for continuous 24/7 use with a 0–50 °C operating temperature range, robust metal chassis, and features like power-on after failure and watchdog timer support.
• Q: How does it compare to similar models? The DN11H5 offers more LAN ports (4x 2.5G) and USB ports than many compact rivals like the DN11H nano variants or competing mini PCs, while providing strong AI features in a slim 1.3 L form factor; higher models in the series (DN11H7/H9) add more CPU cores for heavier workloads.
• Q: What is the warranty and local support? Shuttle typically offers a standard 2–3 year warranty on barebones (confirm with reseller); in Australia, check authorized distributors like Gentus or Flashtrend for local support and RMA services.
