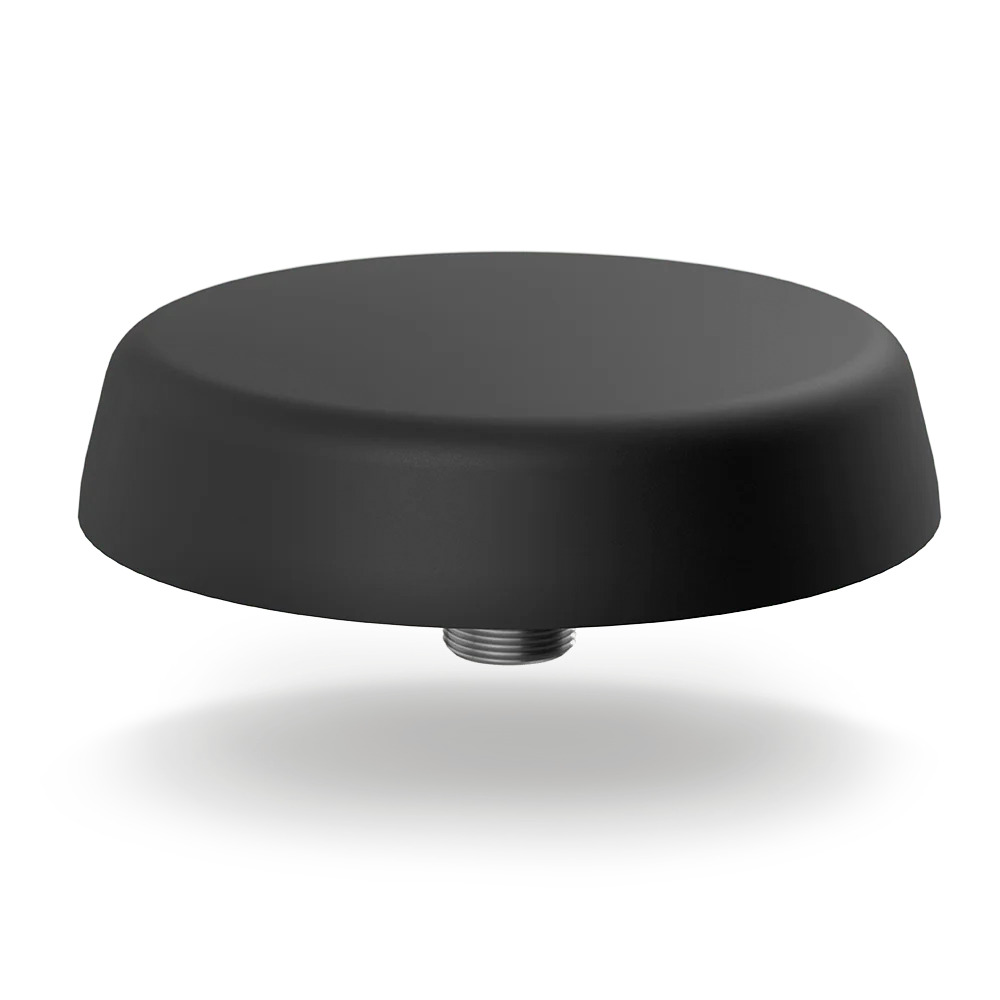

PANORAMA Low Profile Omni-Directional Antenna 2×2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10
$220.80 inc GST
Manufacturer: PANORAMA
Availability: BRS:CALL ADL:CALL SYD:CALL MEL:CALL WA:CALL
Out of stock
PANORAMA Low Profile Omni-Directional Antenna 2×2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10.
The L[G]M[X]-24-58 range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz. The antenna is designed to be panel mounted on vehicles or devices and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module with 26dB LNA gain. The antenna is available with a black or white radome.
Pattern Omnidirectional
Max Input Power(W) 10
Cellular LTE Elements No
WIFI Elements 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
UHF Elements No
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module; No
Cable length – GPS 5 (m) | 16.40 (ft)
Cable Length – WIFI 5 (m) | 16.40 (ft)
Cable Type (GPS) FR CS32; RG174
Cable Type (WIFI) FR CS32
Connector (WIFI) Reverse Polarity SMA
Connector (GPS) Reverse Polarity SMA; SMA (m)
Mounting Type Fixed Panel
Mounting Methods Panel
IP Rating IP66; IK10; IP69K
Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
Material Flammability UL746C-F1, UL94-V0
Technology GPS; WIFI MIMO; WIFI; 5G; GNSS
| Weight | 0.4 kg |
|---|---|
| Dimensions | 115 × 115 × 30 mm |
| Availability Total | CALL |
| Manufacturer | |
| Warranty Length | |
| Product Create Date | |
| Manufacturer SKU | |
| Web Link | https://panorama-antennas.com/product/lgmx-24-58-low-profile-mimo-wifi-antenna/ |
Drop Shipped Delivery
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track and Aus Post.
