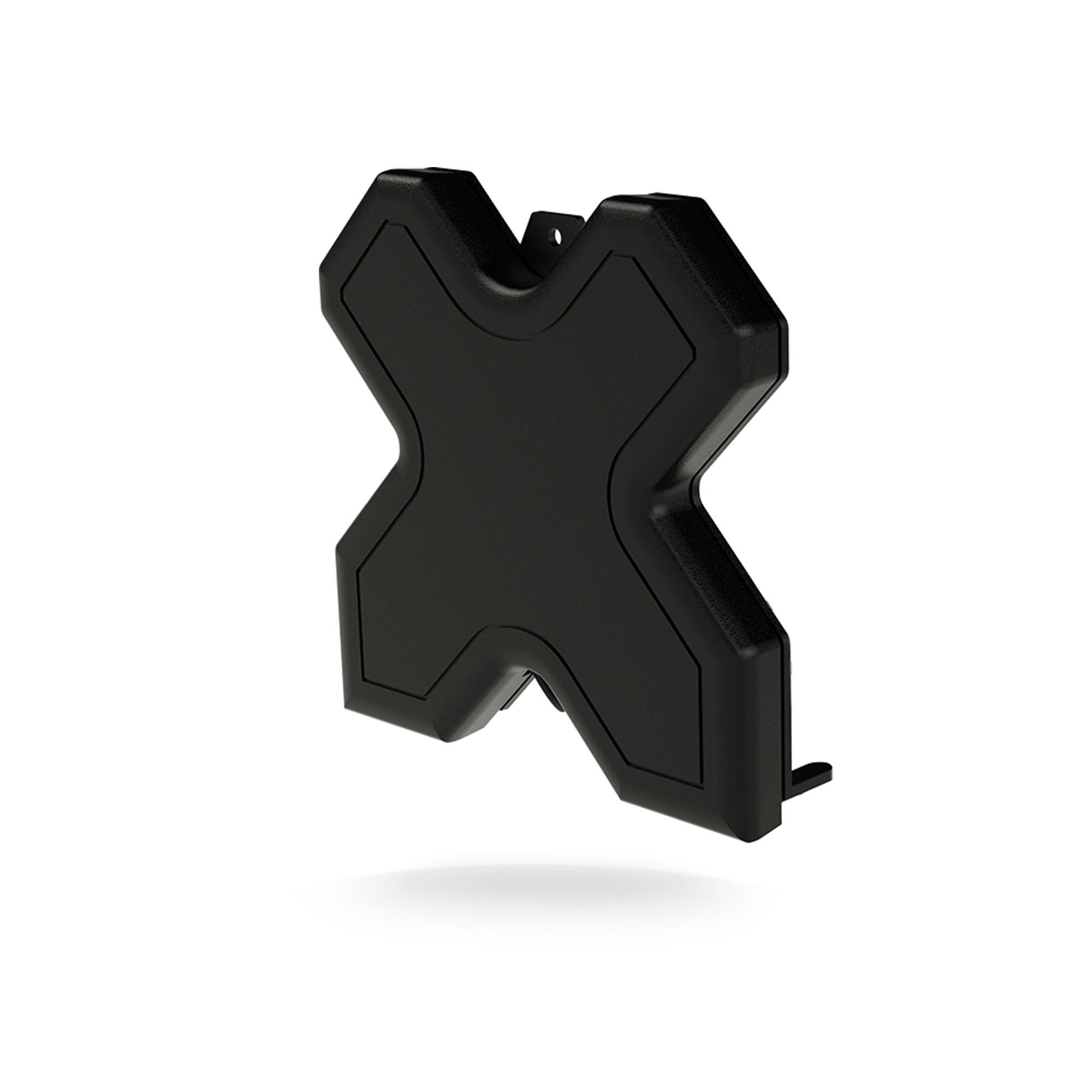

PANORAMA 4×4 MiMo 4G/5G Desk Mount MiMo Antenna – Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready
$182.07 inc GST
Manufacturer: PANORAMA
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
PANORAMA 4×4 MiMo 4G/5G Desk Mount MiMo Antenna – Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready
The DMM4 portable antenna is an innovative antenna design which provides 4×4 MiMo function for 4G/5G with fallback to 3G/2G. The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4×4 MiMo function. It can also provide 2x 2×2 MiMo function for a router with dual modems, each requiring a 2×2 antenna system. The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors. The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 2
Typical VSWR 2.5:1
Frequency Range | Gain 617 – 960MHz | 2dBi; 1427 – 2700MHz | 4dBi; 2700 – 6000MHz | 5dBi
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements No
UHF Elements No
GPS DATA
Number of GPS Elements No
MECHANICAL DATA
Colour Black
Length 23 (mm) | 0.91 (in)
Width max: 185 (mm) | 7.28 (in)
Height max: 185 (mm) | 7.28 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE 2 (m) | 6.56 (ft)
Cable Type (LTE) RG174
TERMINATION DATA
Connector (LTE) SMA (m); FAKRA D; TS9 (m)
MOUNTING DATA
Mounting Type Fixed Desk; Wall
Mounting Type Temp Hook/Loop or Adhesive
Mounting Methods Desk; Hook/Loop or Adhesive; Wall
TECHNOLOGY DATA
Technology 4G/5G; 5G; CBRS; 2G/3G/4G; Band 71 600MHz ready
| Weight | 0.4 kg |
|---|---|
| Dimensions | 185 × 23 × 184 mm |
| Product Create Date | 25/10/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | PANORAMA |
| Warranty | 12 |
| Manufacturer SKU | DMM4-6-60-2SP |
