PANORAMA 2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing
$232.30 inc GST
Manufacturer: PANORAMA
Availability: BRS:CALL ADL:CALL SYD:CALL MEL:CALL WA:CALL
Out of stock
PANORAMA
2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing

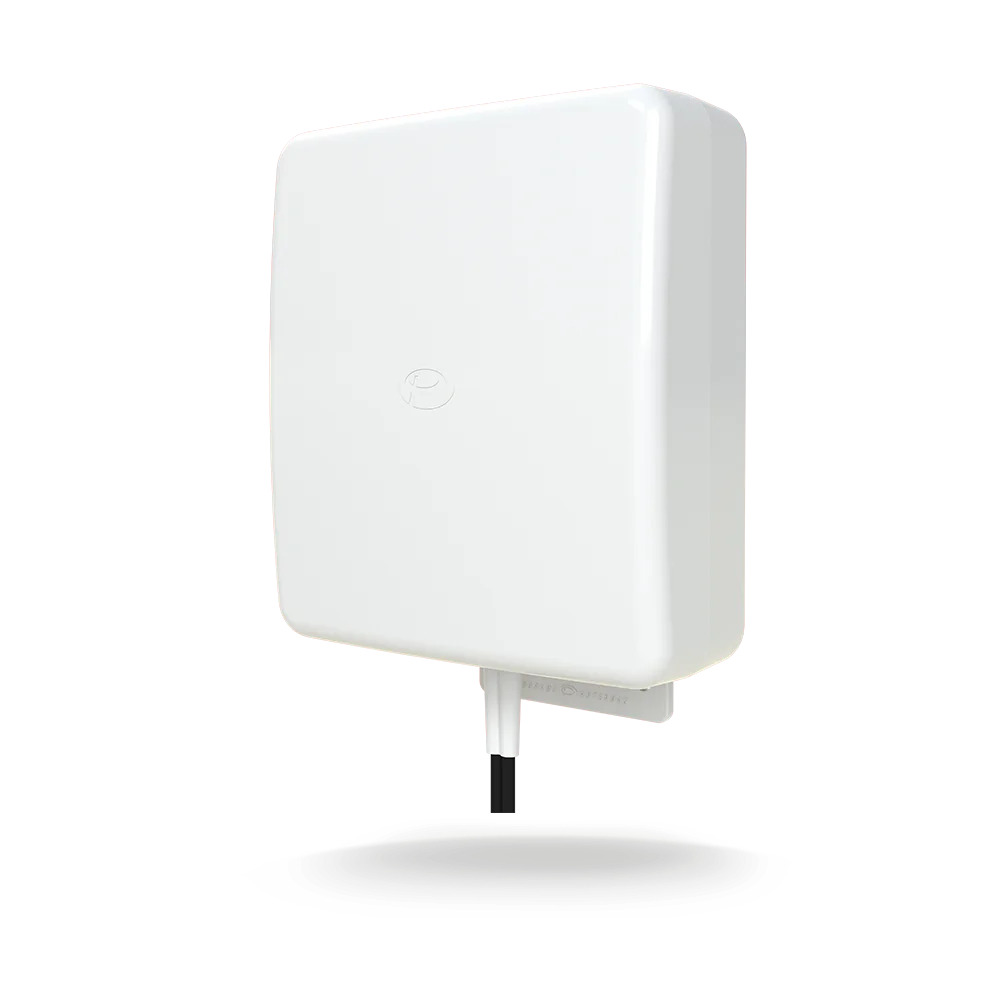

The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G/5G LTE. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client-side MIMO and diversity support for 4G/5G LTE. The rugged, weatherproof housing is designed for wall mounting. Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation. The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.
Cradlepoint Approved for S700, IBR600, E100/ E102 Series
Pattern Directional
Max Input Power(W) 20
Frequency Range | Gain 698 – 960MHz | 6dBi; 1710 – 2170MHz | 9dBi; 2396 – 2700MHz | 9dBi; 3400 – 3800MHz | 9dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements No
UHF Elements No
Number of GPS Elements No
Colour White
Operating Temperature -45°/ +80°C (-49.0°/ +176.0°F)
Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (LTE) CS29
Connector (LTE) N (f); SMA (m)
Mounting Type Fixed Desk; Mast; Wall
Mounting Methods Desk; Mast; Wall
IP Rating IP65
Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G
| Weight | 0.2 kg |
|---|---|
| Dimensions | 180 × 98 × 230 mm |
| Availability Total | CALL |
| Manufacturer | |
| Warranty Length | |
| Product Create Date | |
| Manufacturer SKU | |
| Web Link | https://panorama-antennas.com/product/wmm8g-7-38-4g-5g-lte-mimo-directional-antenna/ |
Drop Shipped Delivery
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track and Aus Post.
