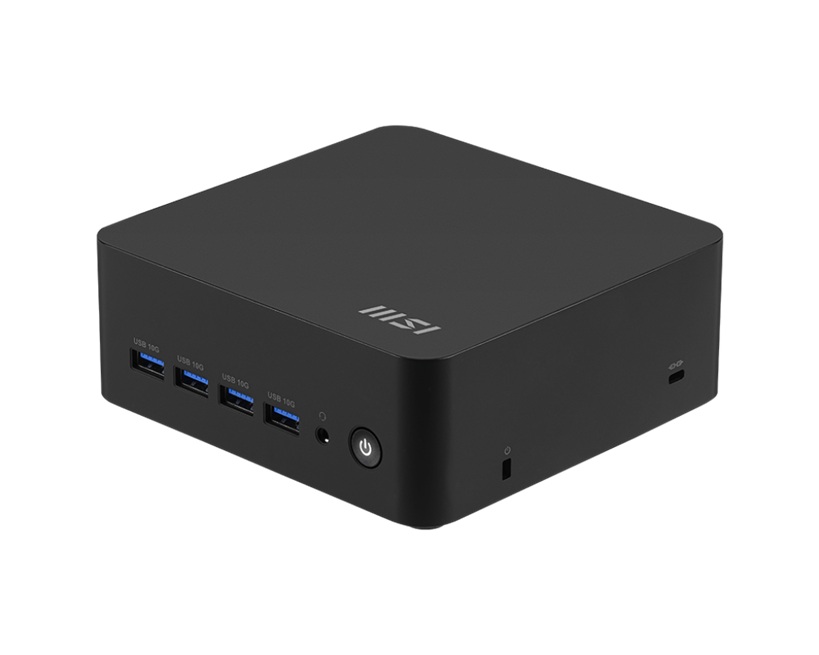

MSI Cubi Z AI 8M with Hawk Point R9, Ryzen 9 8945HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

MSI Cubi Z AI 8M with Hawk Point R9, Ryzen 9 8945HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

FEATURES
Ready for AI
Enable lightweight AI for better performance and lower power usage in efficient intelligent systems.

Built-in NPU
Designed for efficient AI processing with lower power consumption.

4-Display Support
Enhance the workflow efficiency by previewing e-commerce content on up to four monitors for improved productivity.

USB4 40Gbps
Up to 40Gb transmission speed and support the power delivery, offering a fast and simple level of connection for work.

Dual 2.5G LAN
Dual 2.5G network solution for Intranet and Internet offers a smooth experience for effective network connection.

dTPM 2.0 Support
dTPM 2.0 design secures your confidential data with encryption keys.

Built-In Speaker
Built-in speakers allow you to listen clearly without connecting external speakers.

MSI AI Engine
Incorporating AI technology, the MSI AI Engine can switch settings, including lighting, performance, audio and visual based on different applications.

VESA Mountable
To be mounted on the wall of your office home with a VESA standard design which can make it completely invisible on a desk.

SPECIFICATIONS
Operating System
Windows 11 Home
Windows 11 Pro – MSI recommends Windows 11 Pro for business

CPU
AMD Ryzen™ 9 8945HS

Chipset AMD SoC
Graphics AMD Radeon™ Graphics (Integrated)
Storage 1x M.2 2280 SSD (NVMe PCIe Gen4 x4)
System Memory 2x DDR5 5600 SO-DIMMs, up to 64GB

I/O (Front)
4x USB 10Gbps Type A
1x Mic-in/Headphone-out combo

I/O (Rear)
2x USB4 Type-C (DP 1.4 alt-mode up to 4K@60Hz /
PD-out 15W / One of USB4 supports PD-in up to
100W)
1x USB 10Gbps Type A
1x USB 2.0 Type A
2x RJ45 (2.5G)
2x HDMI™ out (supports 4K @60Hz as specified in
HDMI™ 2.1)

I/O (SIDE)
1x Card Reader
1x Kensington Lock
1x External Power Switch Pin Header

Wireless LAN AMD RZ616 Wi-Fi 6E
Bluetooth 5.3
AUDIO Built-in Speaker
LAN 2x Realtek RTL8125BG (2.5G)
KEYBOARD / MOUSE Optional
AC Adapter / PSU 120W
Dimension (WxDxH) 136.00 x 132.00 x 50.10 mm (5.35 x 5.20 x 1.97 inch)
WEIGHT (N.W./ G.W.) 0.79 Kg (1.74 lbs) / 2.02 Kg (4.45 lbs)
Certificates FCC, CB/CE, UL CUL, VCCI, RCM

Why Choose This?

The MSI Cubi Z AI 8M-003BAP-BAR98945SXX is a compact 0.9L barebone mini PC powered by the AMD Ryzen 9 8945HS Hawk Point processor with integrated NPU for efficient AI workloads and multitasking. Ideal for business, office, or digital signage setups, it supports up to 64GB DDR5 memory, quadruple 4K displays, dual 2.5G LAN, and USB4 connectivity in a VESA-mountable design. With Wi-Fi 6E, dTPM security, and a 3-year warranty, it delivers reliable performance while saving desk space.

Key Features

• AMD Ryzen 9 8945HS with NPU – Accelerates AI tasks and handles demanding productivity workloads efficiently.
• Quadruple display support – Connect up to 4x 4K@60Hz monitors via 2x HDMI and 2x USB4 for enhanced multitasking.
• Dual 2.5G LAN ports – Ensures high-speed, reliable wired networking for business-critical applications.
• USB4 40Gbps with PD-in/out – Offers ultra-fast data transfer, display output, and flexible power delivery up to 100W input.
• Compact VESA-mountable 0.9L chassis – Saves space and integrates seamlessly behind monitors or in tight setups.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is this a barebone system? Yes, the MSI Cubi Z AI 8M-003BAP-BAR98945SXX is a barebone mini PC without pre-installed RAM, storage, or OS; users must add DDR5 SO-DIMMs, M.2 SSD, and install OS.
• Q: What CPU does it use? It features the AMD Ryzen 9 8945HS (Hawk Point) processor with integrated Radeon Graphics and NPU for AI acceleration.
• Q: How many displays can it support? Up to 4 displays at 4K@60Hz using 2x HDMI 2.1 and 2x USB4 ports with DP alt-mode.
• Q: Does it have dual storage slots? No, it supports 1x M.2 2280 NVMe PCIe Gen4 x4 slot for SSD storage.
• Q: What networking options are available? Dual 2.5G Ethernet LAN ports, Wi-Fi 6E, and Bluetooth 5.3 for robust connectivity.
