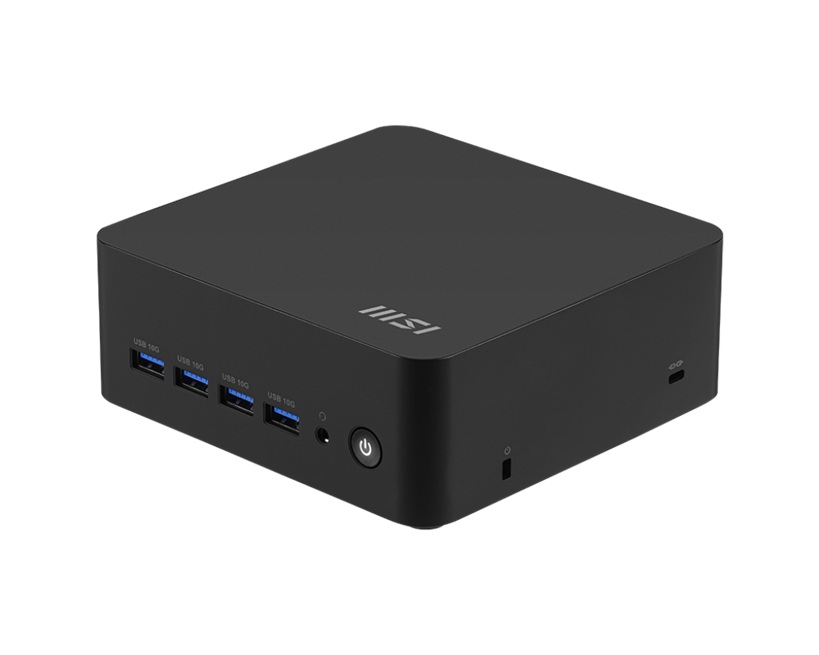

MSI Cubi Z AI 8M with Hawk Point R7,Ryzen 7 8845HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

MSI Cubi Z AI 8M with Hawk Point R7,Ryzen 7 8845HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

FEATURES
Ready for AI
Enable lightweight AI for better performance and lower power usage in efficient intelligent systems.

Built-in NPU
Designed for efficient AI processing with lower power consumption.

4-Display Support
Enhance the workflow efficiency by previewing e-commerce content on up to four monitors for improved productivity.

USB4 40Gbps
Up to 40Gb transmission speed and support the power delivery, offering a fast and simple level of connection for work.

Dual 2.5G LAN
Dual 2.5G network solution for Intranet and Internet offers a smooth experience for effective network connection.

dTPM 2.0 Support
dTPM 2.0 design secures your confidential data with encryption keys.

Built-In Speaker
Built-in speakers allow you to listen clearly without connecting external speakers.

MSI AI Engine
Incorporating AI technology, the MSI AI Engine can switch settings, including lighting, performance, audio and visual based on different applications.

VESA Mountable
To be mounted on the wall of your office home with a VESA standard design which can make it completely invisible on a desk.

SPECIFICATIONS
Operating System
Windows 11 Home
Windows 11 Pro – MSI recommends Windows 11 Pro for business

CPU
AMD Ryzen™ 7 8845HS

Chipset AMD SoC
Graphics AMD Radeon™ Graphics (Integrated)
Storage 1x M.2 2280 SSD (NVMe PCIe Gen4 x4)
System Memory 2x DDR5 5600 SO-DIMMs, up to 64GB

I/O (Front)
4x USB 10Gbps Type A
1x Mic-in/Headphone-out combo

I/O (Rear)
2x USB4 Type-C (DP 1.4 alt-mode up to 4K@60Hz /
PD-out 15W / One of USB4 supports PD-in up to
100W)
1x USB 10Gbps Type A
1x USB 2.0 Type A
2x RJ45 (2.5G)
2x HDMI™ out (supports 4K @60Hz as specified in
HDMI™ 2.1)

I/O (SIDE)
1x Card Reader
1x Kensington Lock
1x External Power Switch Pin Header

Wireless LAN AMD RZ616 Wi-Fi 6E
Bluetooth 5.3
AUDIO Built-in Speaker
LAN 2x Realtek RTL8125BG (2.5G)
KEYBOARD / MOUSE Optional
AC Adapter / PSU 120W
Dimension (WxDxH) 136.00 x 132.00 x 50.10 mm (5.35 x 5.20 x 1.97 inch)
WEIGHT (N.W./ G.W.) 0.79 Kg (1.74 lbs) / 2.02 Kg (4.45 lbs)
Certificates FCC, CB/CE, UL CUL, VCCI, RCM

Why Choose This?

The MSI Cubi Z AI 8M-005BAP-BAR78845SXX is a compact 0.9L barebone mini PC powered by the AMD Ryzen 7 8845HS Hawk Point processor with integrated NPU for efficient AI workloads, making it ideal for business, digital signage, and office multitasking. It supports up to 64GB DDR5 memory, quadruple 4K displays, dual 2.5G LAN, and USB4 ports with 100W PD-in for versatile connectivity in space-constrained environments. With VESA mountability, dTPM security, WiFi 6E, and a 3-year warranty, it delivers reliable 24/7 performance and easy upgradability.

Key Features

• AMD Ryzen 7 8845HS with NPU – Powers AI tasks efficiently with 8 cores/16 threads up to 5.1GHz and Radeon 780M graphics for smooth multitasking and light gaming.
• Quadruple display support – Connect up to 4x 4K@60Hz monitors via 2x HDMI 2.1 and 2x USB4 DP alt-mode to boost productivity.
• Dual USB4 Type-C ports – 40Gbps speeds, one with 100W PD-in for charging and peripherals, plus PD-out 15W for versatile docking.
• Dual 2.5G LAN + WiFi 6E – Ensures robust networking for business redundancy, security, and high-speed wireless connectivity.
• Compact VESA-mountable design – 0.9L chassis fits anywhere, with toolless upgrades for 2x DDR5 slots and M.2 SSD storage.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is this a barebone system? Yes, it includes the Ryzen 7 8845HS CPU but no RAM, storage, or OS; easily upgradable with 2x DDR5 slots and 1x M.2 SSD slot.
• Q: How many displays can it support? Up to 4 displays at 4K@60Hz via 2x HDMI 2.1 and 2x USB4 with DP 1.4 alt-mode.
• Q: Does it support WiFi and Bluetooth? Yes, equipped with Wi-Fi 6E and Bluetooth 5.3 for modern wireless connectivity.
• Q: What is the power input option? One USB4 port supports PD-in up to 100W, plus standard 120W AC adapter for flexible powering.
• Q: Is it suitable for business use? Absolutely, with dTPM 2.0 security, dual 2.5G LAN for redundancy, VESA mounting, and 24/7 reliability tested over 246,000 hours MTBF.
