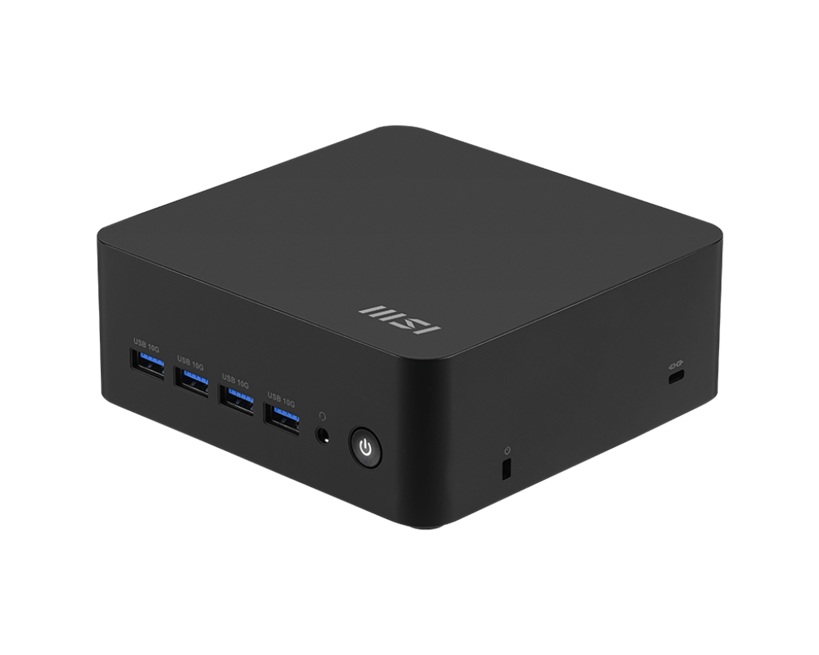

MSI Cubi Z AI 8M with Hawk Point R5, Ryzen 5 8645HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

MSI Cubi Z AI 8M with Hawk Point R5, Ryzen 5 8645HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

FEATURES
Ready for AI
Enable lightweight AI for better performance and lower power usage in efficient intelligent systems.

Built-in NPU
Designed for efficient AI processing with lower power consumption.

4-Display Support
Enhance the workflow efficiency by previewing e-commerce content on up to four monitors for improved productivity.

USB4 40Gbps
Up to 40Gb transmission speed and support the power delivery, offering a fast and simple level of connection for work.

Dual 2.5G LAN
Dual 2.5G network solution for Intranet and Internet offers a smooth experience for effective network connection.

dTPM 2.0 Support
dTPM 2.0 design secures your confidential data with encryption keys.

Built-In Speaker
Built-in speakers allow you to listen clearly without connecting external speakers.

MSI AI Engine
Incorporating AI technology, the MSI AI Engine can switch settings, including lighting, performance, audio and visual based on different applications.

VESA Mountable
To be mounted on the wall of your office home with a VESA standard design which can make it completely invisible on a desk

SPECIFICATIONS
Operating System
Windows 11 Home
Windows 11 Pro – MSI recommends Windows 11 Pro for business

CPU
AMD Ryzen™ 5 8645HS

Chipset AMD SoC
Graphics AMD Radeon™ Graphics (Integrated)
Storage 1x M.2 2280 SSD (NVMe PCIe Gen4 x4)
System Memory 2x DDR5 5600 SO-DIMMs, up to 64GB

I/O (Front)
4x USB 10Gbps Type A
1x Mic-in/Headphone-out combo

I/O (Rear)
2x USB4 Type-C (DP 1.4 alt-mode up to 4K@60Hz /
PD-out 15W / One of USB4 supports PD-in up to
100W)
1x USB 10Gbps Type A
1x USB 2.0 Type A
2x RJ45 (2.5G)
2x HDMI™ out (supports 4K @60Hz as specified in
HDMI™ 2.1)

I/O (SIDE)
1x Card Reader
1x Kensington Lock
1x External Power Switch Pin Header

Wireless LAN AMD RZ616 Wi-Fi 6E
Bluetooth 5.3
AUDIO Built-in Speaker
LAN 2x Realtek RTL8125BG (2.5G)
KEYBOARD / MOUSE Optional
AC Adapter / PSU 120W
Dimension (WxDxH) 136.00 x 132.00 x 50.10 mm (5.35 x 5.20 x 1.97 inch)
WEIGHT (N.W./ G.W.) 0.79 Kg (1.74 lbs) / 2.02 Kg (4.45 lbs)
Certificates FCC, CB/CE, UL CUL, VCCI, RCM

Why Choose This?

The MSI Cubi Z AI 8M-007BAP-BAR58645SXX is a compact 0.9L barebone mini PC powered by the AMD Ryzen 5 8645HS Hawk Point processor with built-in NPU, delivering AI-ready performance for business productivity and multi-monitor workflows. Its VESA-mountable design saves desk space, while features like quad-display support, dual 2.5G LAN, USB4 ports, and Wi-Fi 6E ensure seamless connectivity and efficiency in offices, digital signage, or home setups. With easy upgradability, robust security via dTPM, and a 3-year warranty, it offers reliable, future-proof computing in a tiny footprint.

Key Features

• AMD Ryzen 5 8645HS with NPU – Powers AI workloads efficiently for smarter productivity and lower power use.
• Quad-display support (2x HDMI + 2x USB4) – Boosts multitasking with up to 4K@60Hz on four screens.
• Dual 2.5G LAN + Wi-Fi 6E – Provides high-speed, secure networking with redundancy and strong wireless performance.
• USB4 40Gbps ports with PD – Enables ultra-fast data transfer, display output, and flexible power delivery up to 100W input.
• VESA mountable 0.9L chassis – Frees up space by mounting behind monitors or walls, ideal for clutter-free environments.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is this a barebone system? Yes, it’s a barebone mini PC without RAM, storage, or OS pre-installed; easily add DDR5 SO-DIMMs and M.2 SSD.
• Q: What displays does it support? Up to 4 independent displays at 4K@60Hz via 2x HDMI 2.1 and 2x USB4 with DP alt-mode.
• Q: Does it have dual M.2 slots? No, it features one M.2 2280 slot for NVMe PCIe Gen4 x4 SSD, despite some retailer listings.
• Q: Can it be VESA mounted? Yes, supports standard VESA 75/100mm mounting behind monitors or walls for space-saving setups.
• Q: What is the warranty period? 3 years manufacturer warranty, with options for MSI extended care services.
