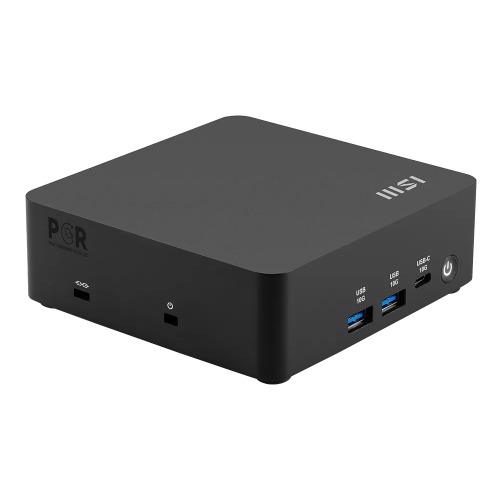

MSI Cubi NUC AI 1UMG-012BAU Mini PC Black Barebone Core Ultra 7 155H, 2x Thunderbolt 4 2x HDMI 2x Intel® I226V (2.5G) Wi-Fi 6E AX211 3Y

MSI Cubi NUC AI 1UMG-012BAU Mini PC Black, Barebone, Core Ultra 7 155H, 2x Thunderbolt, 4 2x HDMI, 2x Intel® I226V (2.5G), Wi-Fi 6E AX211, 3Y

SPECIFICATION

Operating System
Windows 11 Home
Windows 11 Pro – MSI recommends Windows 11 Pro for business

CPU
Intel® Core™ Ultra 7 Processor 155H

Chipset
Intel® SoC

Graphics
Intel® Graphics (Integrated)

I/O (Front)
1x USB 10Gbps Type C
2x USB 10Gbps Type A

I/O (Rear)
2x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W)
2x RJ45 (2.5G)
2x HDMI™ out (supports 4K @60Hz as specified in HDMI™ 2.1 one port supports MSI Power Link)

I/O (SIDE)
1x Kensington Lock
1x External Power Switch Pin Header

Bluetooth
5.3 (for AX211) / 5.4 (for BE200) / 5.3 (for RTL8852CE CG)

LAN
2x Intel® I226V (2.5G)

Wireless LAN
Intel® Wi-Fi 6E AX211 / Intel® Wi-Fi 7 BE200
Realtek WiFi 6E RTL8852CE CG

KEYBOARD / MOUSE
Optional

AC Adapter / PSU
120W

Dimension (WxDxH)
119.60 x 115.20 x 37.50 mm (4.71 x 4.54 x 1.48 inch)

WEIGHT (N.W./ G.W.)
0.55 Kg (1.21 lbs) / 1.48 Kg (3.26 lbs)

Why Choose This?

The MSI Cubi NUC AI 1UMG-012BAU is a ultra-compact 0.51L barebone Mini PC powered by the Intel Core Ultra 7 155H processor with integrated NPU for efficient AI workloads, making it ideal for business, office, and edge computing applications. Offering quadruple display support, dual 2.5G LAN ports, and versatile connectivity including 2x Thunderbolt 4 and Wi-Fi 6E, it delivers high performance in a VESA-mountable design. With a 3-year warranty and MSI AI Engine for optimized power management, it’s a reliable, customizable choice for modern productivity.

Key Features

• Intel Core Ultra 7 155H – 16 cores, 22 threads up to 4.8GHz with NPU for AI acceleration and multitasking efficiency
• Dual 2.5G Ethernet (Intel I226-V) – Ensures ultra-fast, reliable wired networking for business environments
• Quadruple display support via 2x Thunderbolt 4 & 2x HDMI 2.1 – Boosts productivity with up to 4K@60Hz multi-monitor setups
• Wi-Fi 6E AX211 + Bluetooth 5.3 – Provides seamless wireless connectivity with low latency and wide coverage
• MSI Power Link & AI Engine – Enables monitor-powered operation and automatic optimization for energy savings

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is the MSI Cubi NUC AI 1UMG-012BAU a barebone system? Yes, it ships without RAM, storage, or OS pre-installed, allowing full customization of DDR5 memory up to 64GB and 2x M.2 SSDs.
• Q: What CPU does it use and does it support AI tasks? It features the Intel Core Ultra 7 155H with integrated NPU (Intel Boost NPU) for AI acceleration, 16 cores/22 threads up to 4.8GHz.
• Q: How many displays can it support? Up to four displays via 2x Thunderbolt 4 (4K@60Hz DP alt-mode) and 2x HDMI 2.1 (4K@60Hz).
• Q: What is the warranty period? 36 months (3 years) warranty is included, as specified for this Australian model (BAU).
• Q: Does it support Wi-Fi 6E and what are the LAN speeds? Yes, Intel Wi-Fi 6E AX211 with Bluetooth 5.3; dual Intel I226-V 2.5G Ethernet ports for high-speed networking.
