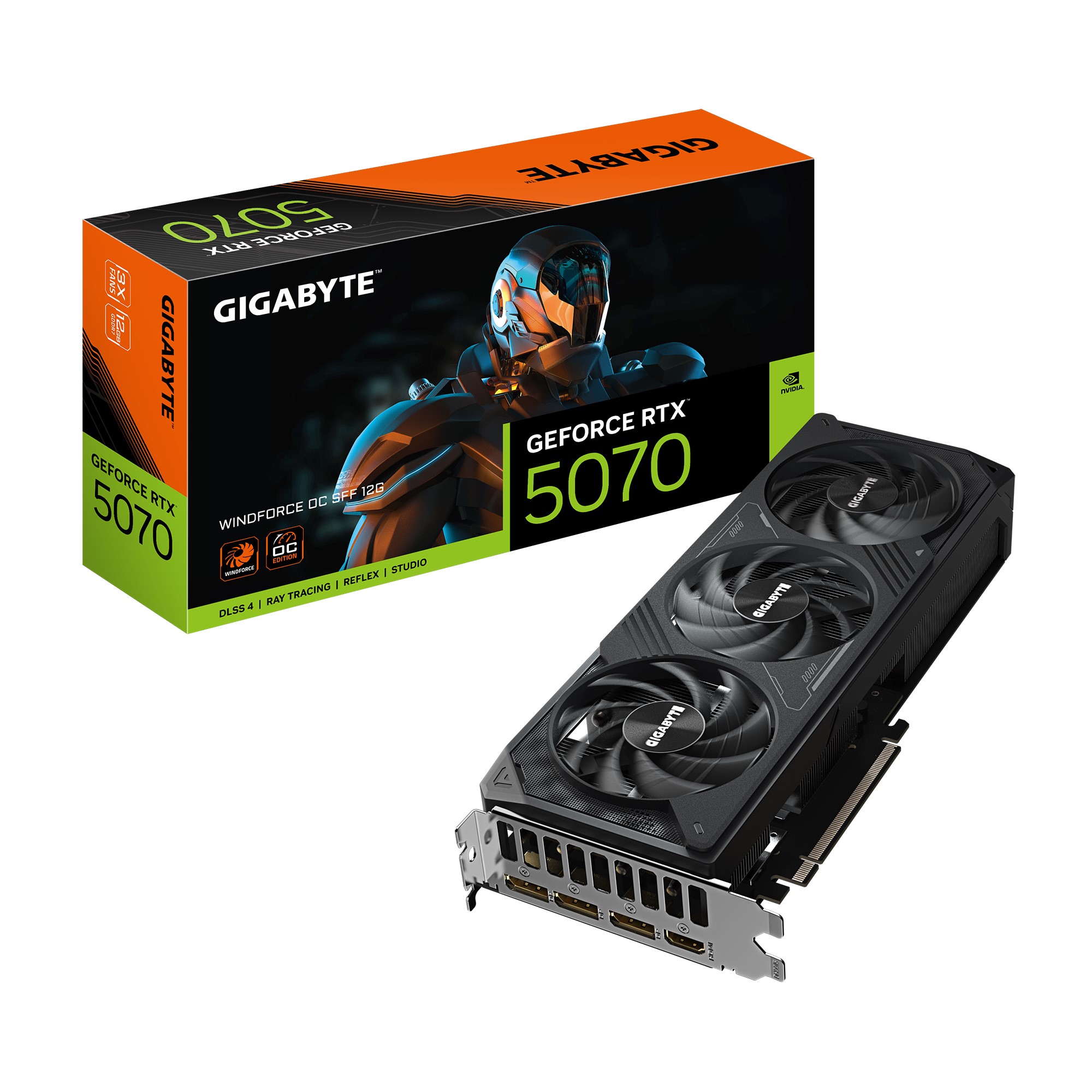

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G, 2542 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

GigabyteGeForce RTX™ 5070 WINDFORCE OC SFF 12G, 2542 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5070

Core Clock
2542 MHz (Reference card : 2512 MHz)

CUDA® Cores
6144

Memory Clock
28 Gbps

Memory Size
12 GB

Memory Type
GDDR7

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=282 W=110 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
750W

Power Connectors
16 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
1. Quick guide
2. 1x 12V-2×6 to 2x PCIe 8pin adapter

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
NVIDIA SFF-ready
Reinforced structure

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

NVIDIA SFF-READY
Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
