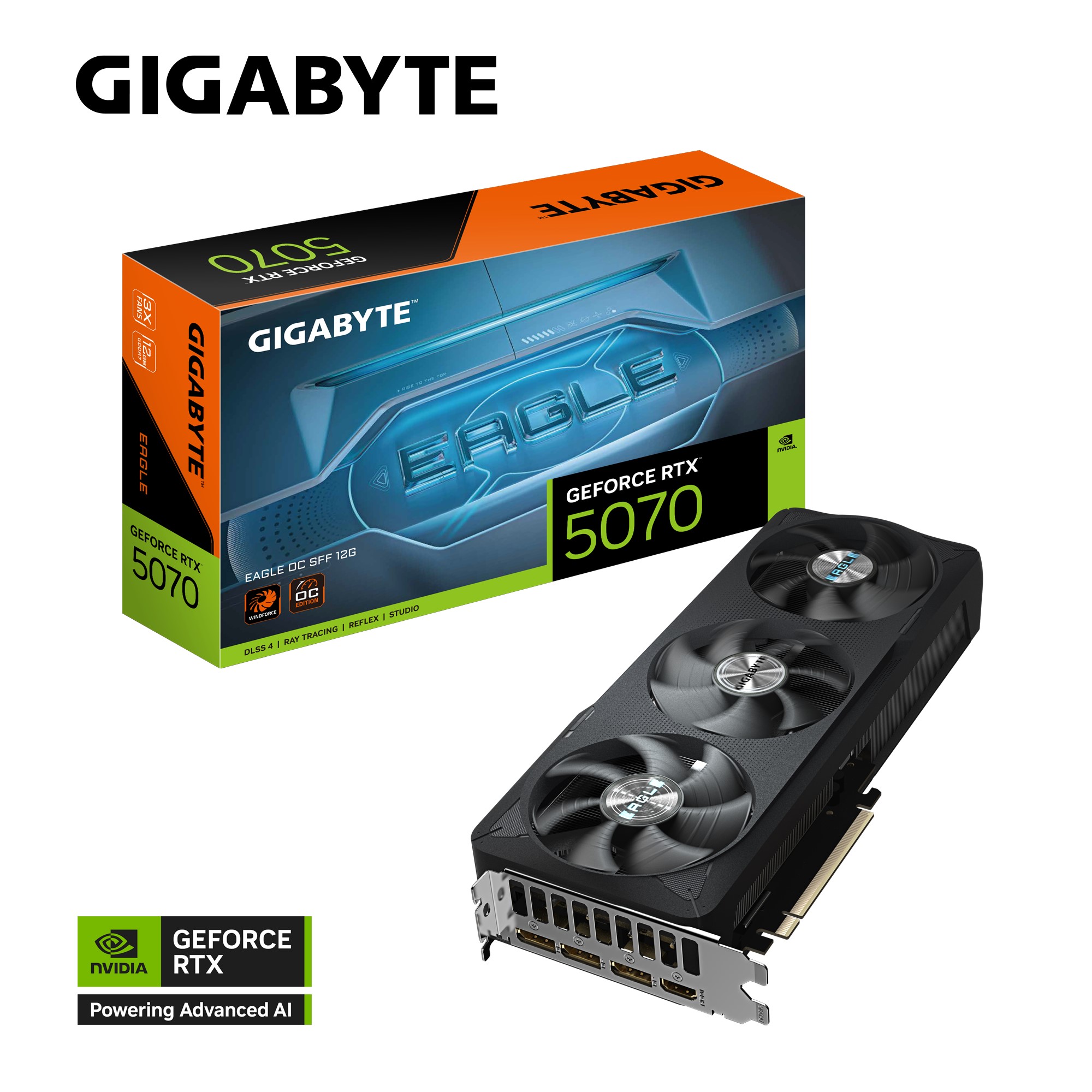

Gigabyte GeForce RTX™ 5070 EAGLE OC SFF 12G, 2587 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

Gigabyte GeForce RTX™ 5070 EAGLE OC SFF 12G, 2587 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5070

Core Clock
2587 MHz (Reference card : 2512 MHz)

CUDA® Cores
6144

Memory Clock
28 Gbps

Memory Size
12 GB

Memory Type
GDDR7

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=290 W=120 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
750W

Power Connectors
16 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
1. Quick guide
2. 1x 12V-2×6 to 2x PCIe 8pin adapter

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
NVIDIA SFF-ready
RGB Lighting
Reinforced structure

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

DYNAMIC PULSATING VISUAL
The side panels adopt a layered metal plate design to enhance the depth and dynamics of the pulsating elements. Combined with subtle blue lighting effects, it crafts an immersive sci-fi visual aesthetic.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

NVIDIA SFF-READY
Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
