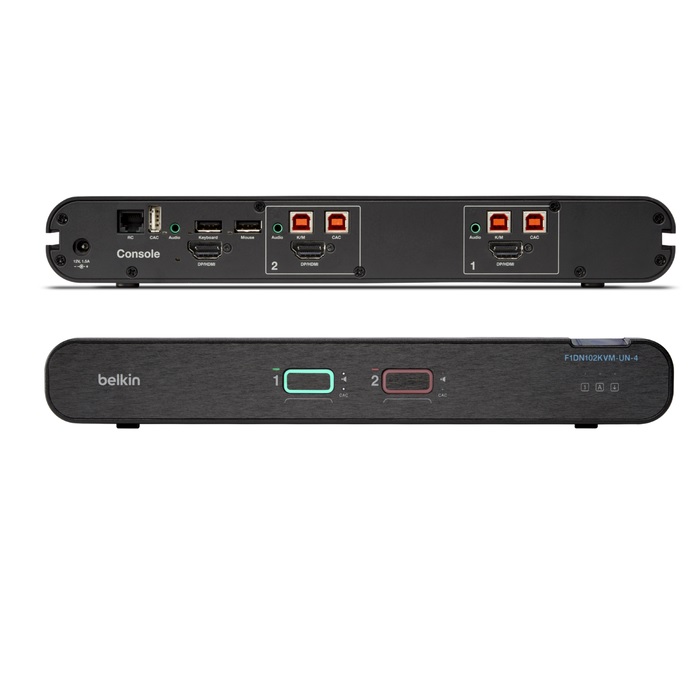

Belkin Universal 2nd Gen Secure KVM Switch w/ CAC – Black (F1DN102KVM-UN-4),12VDC 2.5A, 2 Years Warranty

Belkin Universal 2nd Gen Secure KVM Switch w/ CAC – Black (F1DN102KVM-UN-4)

What’s in the Box
Designed for NIAP Protection Profile PSD 4.0 Compliance
Combo connector video support for up to 4K (3840×2160), @60hz refresh
Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)
Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
Extrusion form factor that supports an under-counter mount (Optional)
Supports TAA combo and video cables for easy deployment
Supports up to two host computers
Supports one display for the user
CAC and Audio freeze functionality
Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
Display security: Protected display interface prevents data leakage via the monitor
Analog audio via 3.5mm jack with ultrasonic audio filtering
Peripheral management: USB device detection prevents unauthorized peripheral usage
Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

At a Glance
Belkin F1DN102KVM-UN-4 Universal 2nd Gen 2-Port, Single Monitor KVM Switch
12V, 2.5A Universal Power Supply with Worldwide Adaptors
Port Naming Labels
Quick Start Guide and Compliance Documentation

Technical Specifications
Certifications : FCC Class A UL CE RoHS ICES RCM
Console Ports : 1, Single Monitor
Display Connection : DisplayPort/HDMI
Display Type : DP/HDMI
Form Factor : Desktop
Host Ports : 2
Keyboard Input : 1
Keyboard/Mouse Connections : 2
Keyboard Type : USB
KVM Maximum Resolution Supported : 4K@60hz
Local Console Interfaces : 1, Single Monitor
Maximum Resolution : 4k@60hz
Mouse Input : 1
Mouse Type : USB
PC Ports : 4
Power Rating : 12VDC 2.5A
Power Supply Included : Yes
Power Supply Type : External
Remote Control Included : No
Supported Audio Formats : 3.5mm Analog
Supported Video Formats : DipsplayPort/HDMI
TAA Compliant : Yes
Ports : CaC/DPP, Computers, Keyboard, Monitors, Mouse, Remote
