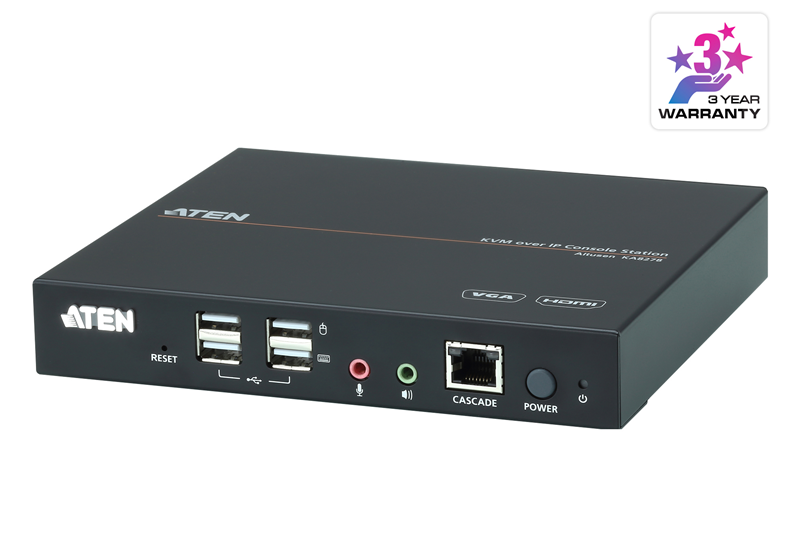

Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with design for 0U rack space
$1,358.15 inc GST
Manufacturer: Aten
Availability: BRS:CALL ADL:CALL SYD:CALL MEL:CALL WA:CALL
Out of stock
Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space
A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches*
Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
Space-saving 0U rack mount design for rear rack mounting
Specifications
Connectors
Video 1 x HDB-15 Female
1 x HDMI Female
RS-232 1 x DB-9 Male
Power 1 x DC Jack
Audio 2 x Audio Jack Female
LAN Ports 1 x RJ-45 Female
Keyboard 1 x USB Type-A Female
Mouse 1 x USB Type-A Female
USB Port 2 x USB Type-A Female
Cascade Port 1 x RJ-45 Female
LEDs
Power 1 (Blue)
Switches
Power 1 x Push button
Reset 1 x Semi-recessed Push button
Video 1920 x 1200 @ 60Hz
Power Consumption DC 5V:6.53W:56.18BTU
Environmental
Operating Temperature 0 -40°C
Storage Temperature -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.80 kg ( 1.76 lb )
Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm
(6.86 x 6.12 x 1.13 in.)
Compatible Appliances
KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A.
| Weight | 0.8 kg |
|---|---|
| Dimensions | 174.2 × 155.4 × 28.8 mm |
| Availability Total | CALL |
| Manufacturer | |
| Warranty Length | |
| Product Create Date | |
| Manufacturer SKU | |
| Web Link | https://www.aten.com/global/en/products/kvm/kvm-modules–accessories/ka8278/ |
