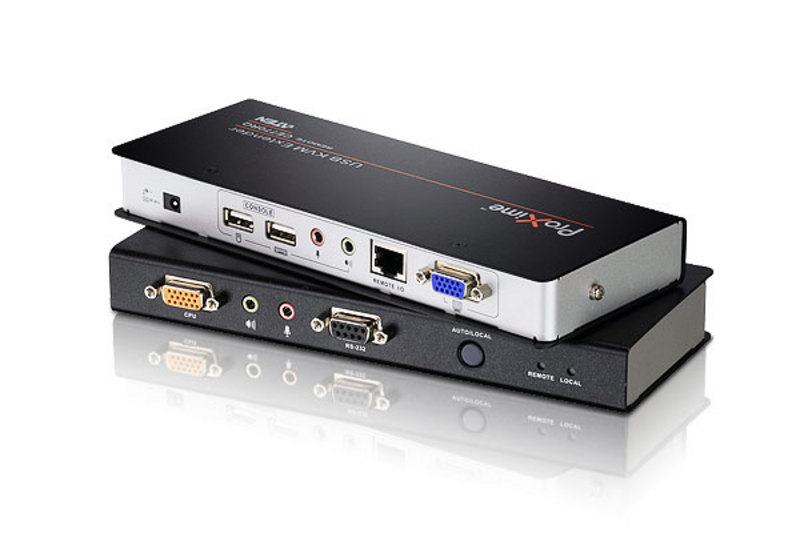

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920×1200@60Hz 150m, 1280×1024@60Hz 300m
$621.18 inc GST
Manufacturer: Aten
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
â˘Local and Remote Units connect at distances up to 300 m using Cat 5e cable
â˘Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
â˘Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
â˘Built-in ASIC for greater reliability and compatibility
â˘Auto Signal Compensation (ASC)
â˘RS-232 serial ports – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
â˘Sun/Mac keyboard support and emulation*
â˘Audio Enabled – supports stereo speakers and microphone
â˘USB overcurrent detection and prevention
â˘Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes, with the press of a single button
â˘Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
â˘High resolution video – up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
â˘Superior Audio – no loss in audio quality at 300 m
â˘Spports Wide Screen formats
â˘Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
â˘Hot pluggable
â˘Rack mountable
â˘Easy to install – no software required – connecting cables to the devices is all it takes
*1. PC keyboard combinations emulate Sun/Mac keyboards
*2. Sun/Mac keyboards only work with their own computers
Compatible Cables: 2L-5301U, 2L-5302U, 2L-5303U, 2L-5304U, 2L-5305U, 2A-130G
| Weight | 1.84 kg |
|---|---|
| Dimensions | 326 × 100 × 212 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page â |
|---|---|
| Manufacturer | Aten |
| Warranty | 12 |
| Manufacturer SKU | CE770-AT-U |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
