Aten KVM Cable Adapter with RJ45 to VGA USB for KH, KL, KM and KN series
$214.20 inc GST
Manufacturer: Aten
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock

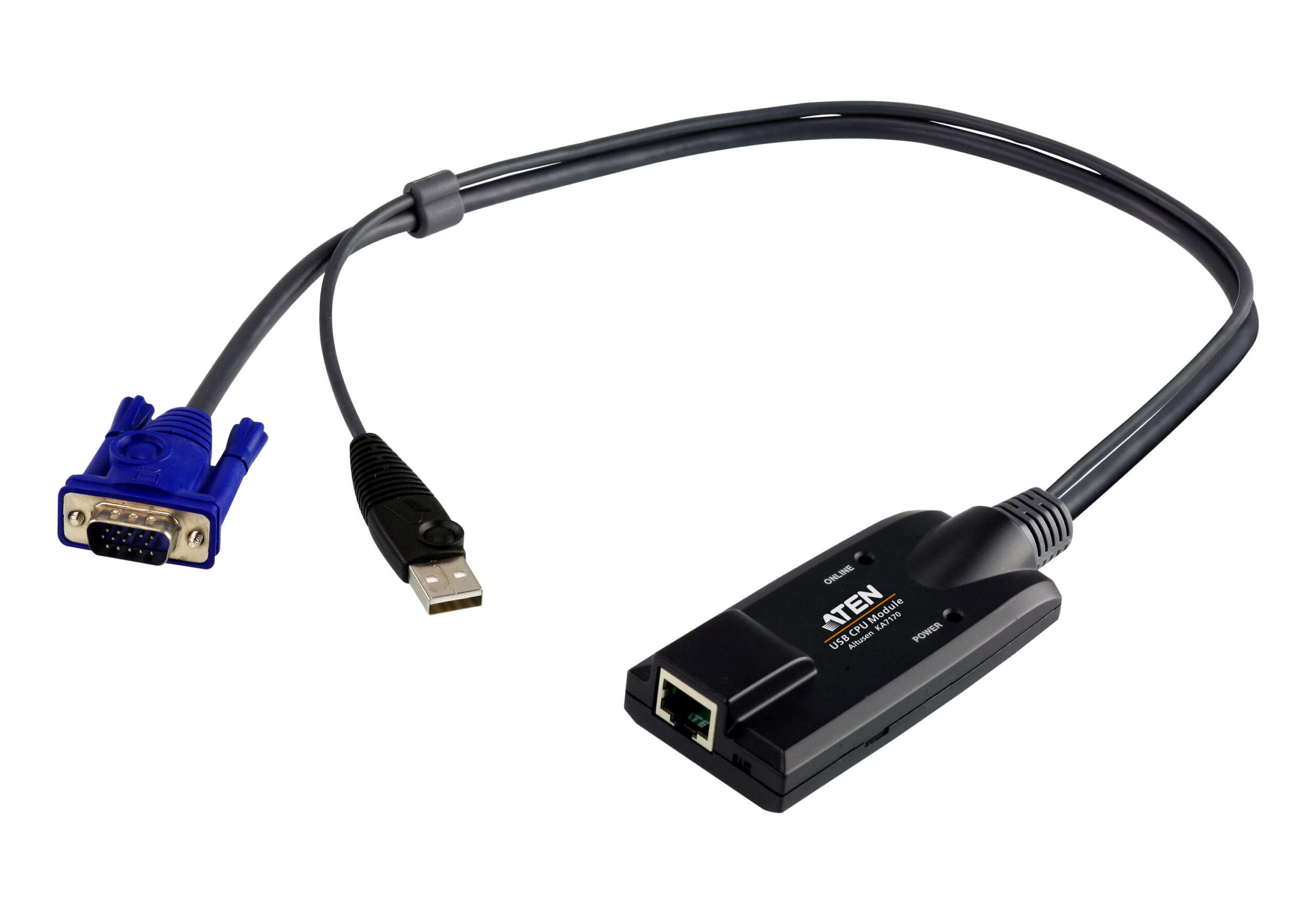

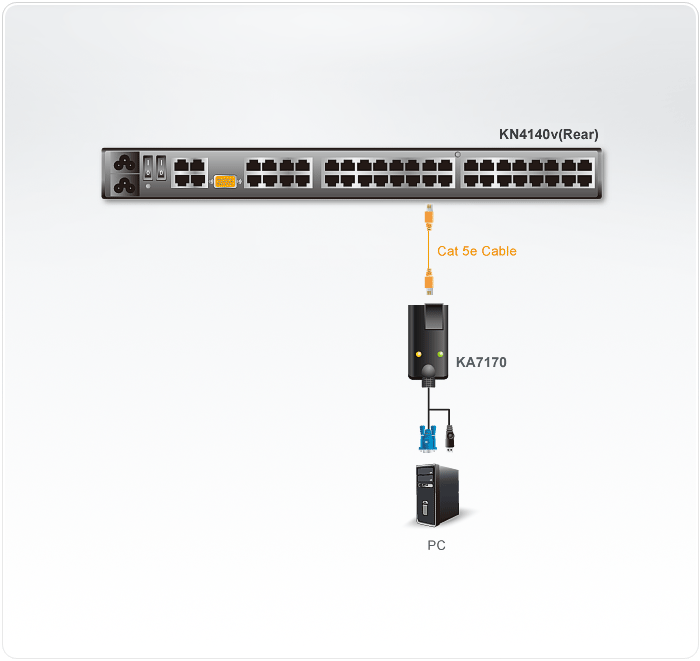

The KA7170 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality – supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer OS types (Windows, Mac, Sun)
Hot Pluggable – add or remove computers without having to power down the switch
Compact size
* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.
Compatible With Below:
KH1508A, KH1508Ai, KH1516A, KH1516Ai, KH1532A, KH2508A, KH2516A, KL1108V, KL1116V, KL1508A, KL1508Ai, KL1516A, KL1516Ai, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM816, KM0032, KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v, KN4132v, KN4140v
| Weight | 0.16 kg |
|---|---|
| Dimensions | 126 × 130 × 44 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Aten |
| Warranty | 12 |
| Manufacturer SKU | KA7170-AX |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
