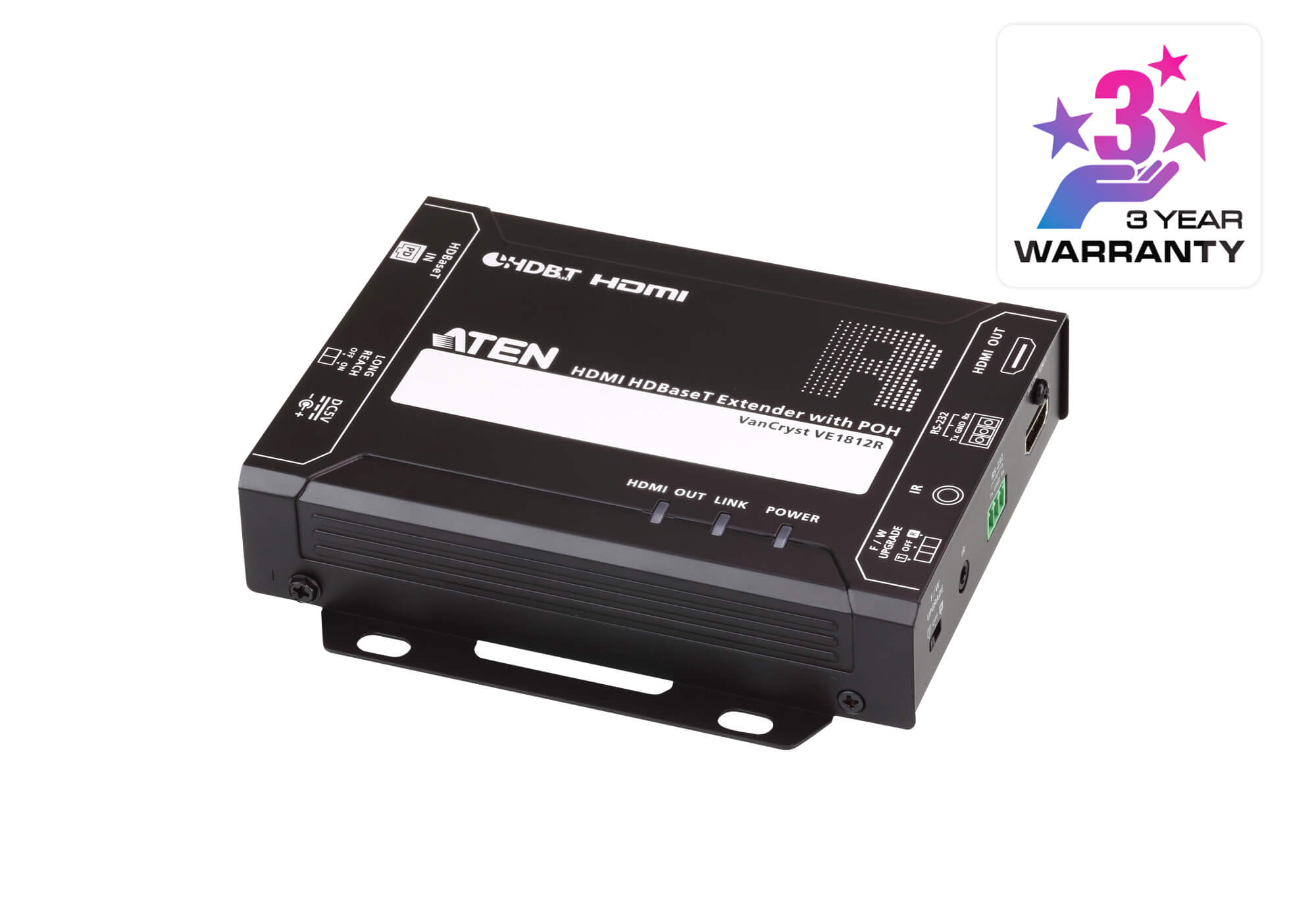

Aten HDMI HDBaseT Receiver with POH
Wishlist

Aten HDMI HDBaseT Receiver with POH, 1080p@150m with long reach mode, 4K@100m, bi-directional RS232 and IR channel

$449.82 inc GST

Manufacturer: Aten

Stock: BRS:CALL ADL:CALL SYD:CALL MEL:CALL PER:CALL

Out of stock

SKU: KVA-VE1812R Categories: ,

The VE1812R features Power over HDBaseT (PoH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing users to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m

Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio
Output 1 x HDMI Type A Female (Black)
Connectors
Unit To Unit 1 x RJ-45 Female
Power 1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)

Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)

Switches
Long Reach Mode Switch 1 x Slide Switch – ON/OFF
Firmware Upgrade 1 x Slide Switch – ON/OFF
Power Consumption DC5V:4.26W:20BTU
POH:5.33W:25BTU

Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing

Physical Properties
Housing Metal





Weight 0.45 kg
Dimensions 136 × 123 × 30 mm
Product Create Date

11/01/2024
Web LinkVisit Manufacturer Page →
ManufacturerAten
Warranty36
Manufacturer SKUVE1812R-AT-U
