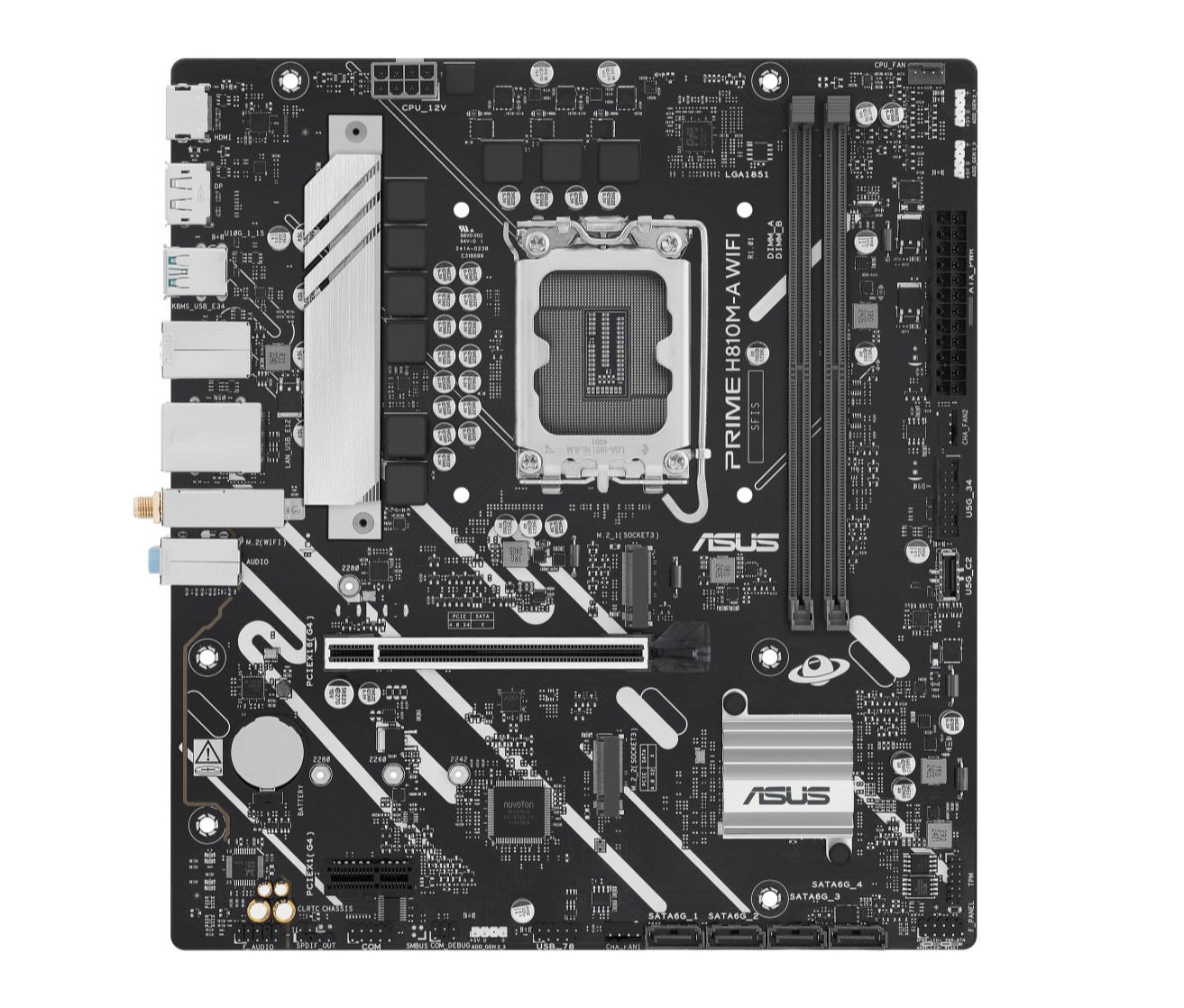

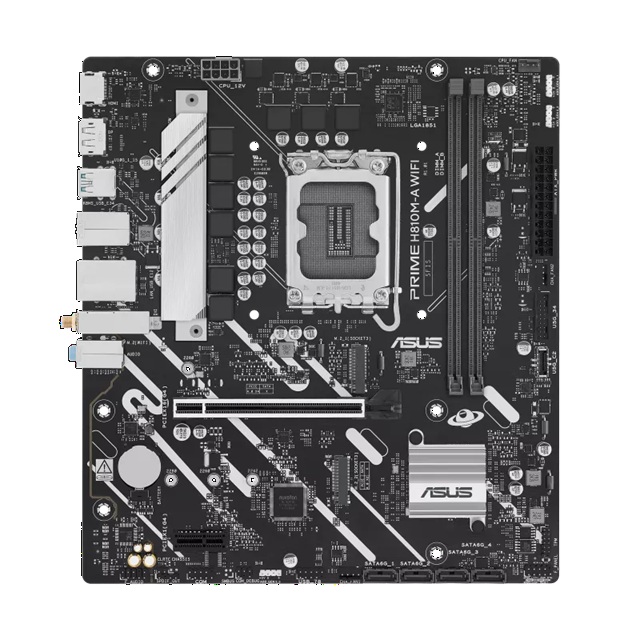

ASUS PRIME H810M-A WIFI-CSM Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0 x16, 2 x M.2, 4 x SATA, WiFi 6, HDMI, DP

ASUS PRIME H810M-A WIFI-CSM Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0 x16, 2 x M.2, 4 x SATA, WiFi 6, HDMI, DP

SPECIFIFCATION
Model
PRIME H810M-A WIFI-CSM

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H810 Chipset

Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless Bluetooth
Wi-Fi 6
1×1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows 11 (22H2 later), Windows 10 64-bit (21H2 later)

Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
