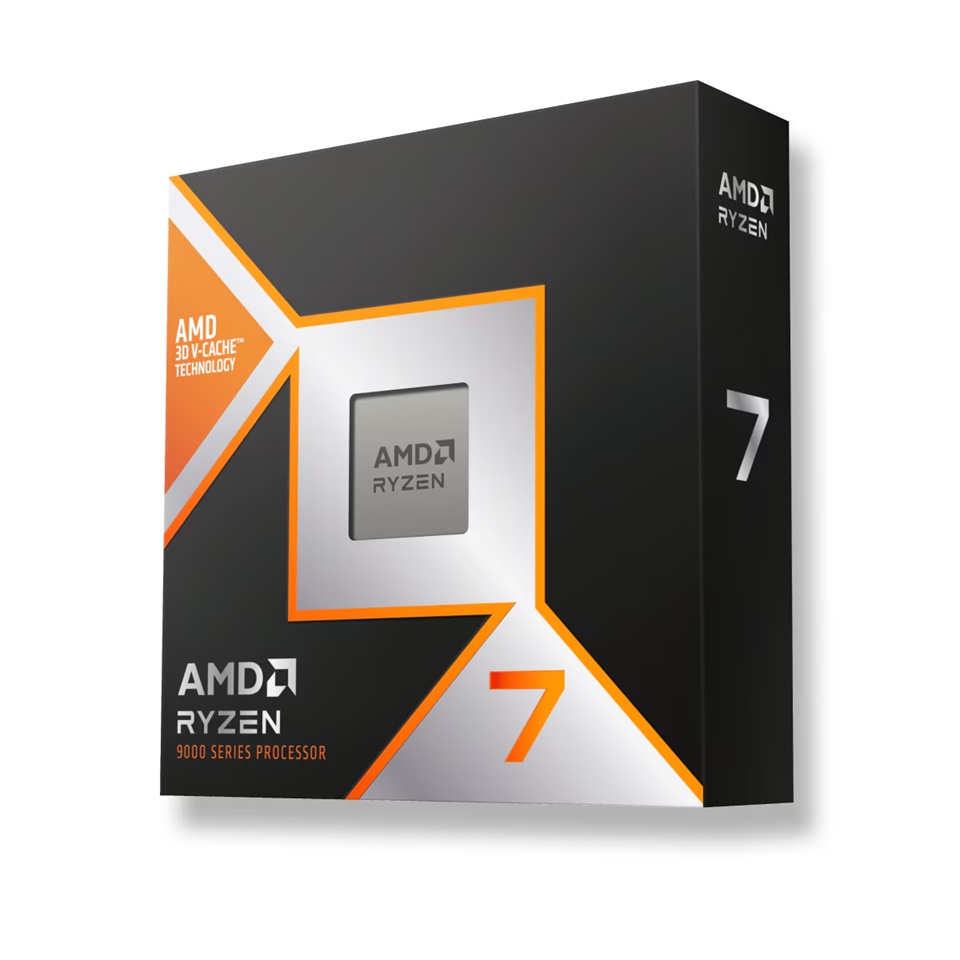

AMD Ryzen 7 9850X3D 8 Cores/16 Threads 5.6GHz AM5 Processor, Zen 5, up to 5.6GHz boost, PCIe 5.0 96MB L3 cache, AM5,

AMD Ryzen 7 9850X3D Desktop Processor, 8 cores 16 threads, Zen 5, up to 5.6GHz boost, 96MB L3 cache, AM5, PCIe 5.0

General Specifications
Name AMD Ryzen™ 7 9850X3D
Family Ryzen
Series Ryzen 9000 Series
Form Factor Desktops, Boxed Processor
Market Segment Enthusiast Desktop
AMD PRO Technologies No
Regional Availability Global
Former Codename Granite Ridge AM5
Processor Architecture Zen 5
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 5.6 GHz
Base Clock 4.7 GHz
L1 Cache 640 KB
L2 Cache 8 MB
L3 Cache 96 MB
Default TDP 120W
Processor Technology for CPU Cores TSMC 4nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
Package Die Count 2
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) 95°C
*OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
Native USB 3.2 Gen 2 (10Gbps) 4
Native USB 2.0 (480Mbps) 1
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28 , 24
NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 192 GB
System Memory Subtype UDIMM

Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600

ECC Support Yes (Requires mobo support)

Graphics Capabilities
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes

Product IDs
Product ID Boxed 100-100001973WOF
Product ID Tray 100-000001973

Security
AMD Secure Processor Support Yes
AMD Platform Secure Boot Yes
Windows Secure Boot Support Yes
UEFI Secure Boot Support Yes
Windows Device Guard Support Yes
Supervisor Mode Execution Prevention (SMEP) Yes
Guest Mode Execution (GMET) Trap Support Yes
Virtualization-Based Security (VBS) Support Yes
Windows Secured-Core PC Support Yes
Firmware TPM Yes
AMD-V (SVM) Support Yes
AMD AVIC (Interrupt Virtualization) Support Yes
AMD-Vi (I/O MMU Virtualization) Support Yes
Second Level Address Translation (SLAT) Supported Yes
Advanced Encryption Standard New Instructions (AES-NI) Yes
AMD Enhanced Virus Protection (NX bit) Yes
AMD Shadow Stack Yes
